Rohde & Schwarz ZN-Z55 Automatic Calibration Unit, 2.4 mm (f), 2 Ports, 9 kHz to 50 GHz

Name: Rohde & Schwarz ZN-Z55 Automatic Calibration Unit, 2.4 mm (f), 2 Ports, 9 kHz to 50 GHz
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzZN-Z55
Price: 26330.00 USD
Availability: InStock

0 reviews | Catalog: 1335.7181.42 | Model: Rohde & Schwarz ZN-Z55

Rohde & Schwarz Automatic Calibration Unit

Compare

Calibration Unit 50 Ohms 9 kHz to 50 GHz, 2 ports, 2.4 mm (f) for R and S ZNA, ZVA/T, ZNB/T, ZND, ZNL, ZNLE

Wide frequency range 9 kHz to 50 GHz
2 ports, 2.4 mm
Virtually no warm up time required
Auto-detection and USB control
Multiport calibration supported

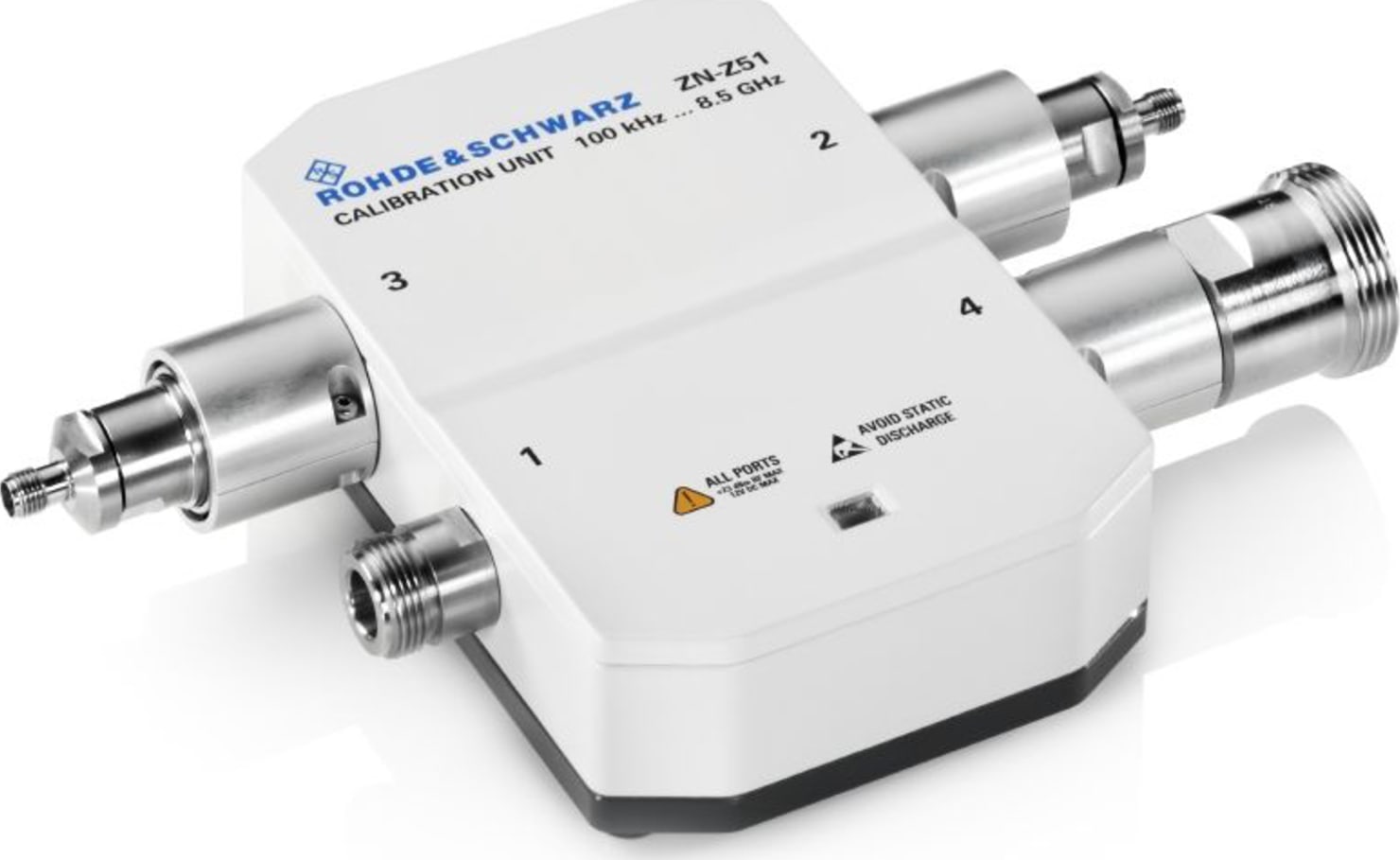

*The image is a representation of the series and may not be the exact item described

View Product Details

Your Price: $26,330.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Rohde & Schwarz ZN-Z55 Calibration Unit 50 Ohms 9 kHz to 50 GHz, 2 ports, 2.4 mm (f) for R ...	Rohde & Schwarz ZN-Z50 Calibration Unit 50 Ohms 9 kHz to 9 GHz, 2 ports, 3.5 mm (f) for R ...	Rohde & Schwarz ZN-Z52 Calibration Unit 50 Ohms 100 kHz to 26.5 GHz, 4 ports, 3.5 mm (f) f ...	Rohde & Schwarz ZN-Z53 Calibration Unit 50 Ohms 100 kHz to 26.5 GHz, 2 ports, 3.5 mm (f) f ...	Rohde & Schwarz ZN-Z54 Calibration Unit 50 Ohms 9 kHz to 40 GHz, 2 ports, 2.92 mm (f) char ...	Rohde & Schwarz ZN-Z51 Calibration unit 50 Ohm, 100kHz to 8.5GHz, 2 ports, 3.5mm(f), for R ...	Rohde & Schwarz ZN-Z51.34 Calibration unit 50 Ohm, 100kHz to 8.5GHz, 4 ports, 3.5mm(f), fo ...	Rohde & Schwarz ZN-Z51.74 Calibration unit 50 Ohm, 100kHz to 8.5GHz, 4 ports, N(f), for R ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Rohde & Schwarz ZN-Z55 Automatic Calibration Unit

Wide frequency range 9 kHz to 50 GHz
2 ports, 2.4 mm
Virtually no warm up time required
Auto-detection and USB control
Multiport calibration supported

The series of R&S®ZN-Z5x automatic calibration units provides accurate and easy calibration of the R&S®ZVA/T, R&S®ZNB/T, R&S®ZNC, R&S®ZND, R&S®ZNL Vector Network Analyzers. The series consists in the models R&S®ZN-Z50, R&S®ZN-Z51, R&S®ZN-Z52, R&S®ZN-Z53, R&S®ZN-Z54, R&S®ZN-Z55, which differ by their frequency range and connector type.

The models cover in total the frequency range from 9 kHz to 50 GHz, with connectors Type N, 3.5mm, 2.92mm 2.4mm corresponding to the frequency range. They are available with 2 or 4 ports, however, with re-connection also multiport calibration of R&S®ZNBT and R&S®ZNB+switch matrix systems is supported. The model R&S®ZN-Z51, ranging up to to 8,5 GHz, allows to configure each port individually: The standard versions are 3.5mm(f) and type N(f) ports, but via options each port can be ordered individually as 3.5mm (f or m), N (f or m), 7/16 (f or m), or 4.3-10.

Rohde & Schwarz ZN-Z55 Specifications
Impedance	50 Ω
Connector P	2.4 mm, female
Number of ports	2
Frequency range	9 kHz to 50 GHz
Input power limits
Nominal input level range	–45 dBm to +20 dBm
Damage level	+20 dBm
Damage DC voltage	0 V

This data is valid at an ambient temperature between +18 °C and +28 °C, at a measurement bandwidth of 10 Hz, and a nominal power of –10 dBm at the calibration ports.

Effective error coefficient	Frequency range	Specification	Typical
Directivity	9 kHz to 100 kHz	> 40 dB	> 41 dB
	100 kHz to 2 GHz	> 44 dB	> 45 dB
	2 GHz to 10 GHz	> 39 dB	> 41 dB
	10 GHz to 20 GHz	> 37 dB	> 39 dB
	20 GHz to 30 GHz	> 35 dB	> 37 dB
	30 GHz to 40 GHz	> 34 dB	> 36 dB
	40 GHz to 50 GHz	> 32 dB	> 34 dB
Source match and load match	9 kHz to 100 kHz	> 37 dB	> 40 dB
	100 kHz to 2 GHz	> 41 dB	> 42 dB
	2 GHz to 10 GHz	> 36 dB	> 38 dB
	10 GHz to 20 GHz	> 34 dB	> 36 dB
	20 GHz to 30 GHz	> 31 dB	> 33 dB
	30 GHz to 40 GHz	> 30 dB	> 32 dB
	40 GHz to 50 GHz	> 27 dB	> 29 dB
Reflection tracking and transmission tracking	9 kHz to 100 kHz	< 0.10 dB	< 0.08 dB
	100 kHz to 2 GHz	< 0.05 dB	< 0.04 dB
	2 GHz to 10 GHz	< 0.07 dB	< 0.06 dB
	10 GHz to 20 GHz	< 0.09 dB	< 0.08 dB
	20 GHz to 30 GHz	< 0.12 dB	< 0.10 dB
	30 GHz to 40 GHz	< 0.15 dB	< 0.12 dB
	40 GHz to 50 GHz	< 0.20 dB	< 0.14 dB

General data
Temperature loading	operating temperature range	+5 °C to +40 °C
	permissible temperature range	0 °C to +50 °C
	storage temperature range	–40 °C to +70 °C, in line with IEC 60068-2-1 and IEC 60068-2-2
Damp heat		+40 °C at 85 % rel. humidity
Mechanical resistance	vibration test, sinusoidal	5 Hz to 55 Hz, displacement: 0.15 mm constant amplitude (1.8 g at 55 Hz); 55 Hz to 150 Hz, acceleration: 0.5 g constant, in line with IEC 60068-2-6
	vibration test, random	10 Hz to 300 Hz, acceleration 1.2 g (RMS), in line with IEC 60068-2-64
	shock test	40 g shock spectrum, in line with MIL-STD-810E method no. 516.4, procedure I
Calibration interval		12 months
EMC	RF emission	in line with CISPR 11/EN 55011 group 1 class A (for a shielded test setup); instrument complies with the emission requirements stipulated by EN 55011 and EN 61326-1 class A making the instrument suitable for use in industrial environments
EMC	immunity	in line with EMC Directive EC2014/30/EU, including IEC/EN 61326-1 (immunity test requirement for industrial environment, EN 61326 table 2)
Safety		in line with IEC 61010-1 EN 61010-1 UL 61010-1, CSA C22.2 No. 61010.1
Power supply	R&S ZN-Z50/-Z51/-Z52/-Z53/-Z54/-Z55/ -Z152/-Z153	via USB, 5 V, 450 mA, max. 500 mA
	R&S ZN-Z150/-Z151	via USB, 5 V, 300 mA
	R&S ZN-Z154	100 V to 240 V (AC) ± 10 %, 50 Hz to 60 Hz/400 Hz ± 5 %, safety class I to VDE 411
	R&S ZN-Z156	via USB, 5 V, 220 mA
Power consumption	R&S ZN-Z50/-Z51/-Z52/-Z53/-Z54/-Z55/ -Z152/-Z153	2.3 W
	R&S ZN-Z150/-Z151	1.5 W
	R&S ZN-Z154	≤ 130 VA
	R&S ZN-Z156	1.1 W

Dimensions and weight
Dimensions (W × H × D)	118 mm × 35 mm × 125 mm (4.65 in × 1.38 in × 4.92 in)
Weight	1 kg (2.2 lb)
Shipping weight	3 kg (6.61 lb)
