Rohde and Schwarz SMBB-K704 - Variable Reference Input from 1 MHz to 100 MHz Option

The R&S SMB100B provides various ways to output (or input) reference signals. The 1 MHz to 100 MHz variable external reference frequency input (R&S SMBB-K704 option) allows the R&S SMB100B to be easily integrated into existing test environments. The received reference frequency can also be output to a separate reference output.

When this option is installed, the user can set the variable reference input frequency in 0.1 Hz steps between 1.0 and 100 MHz. The signal generator will lock its internal 10 MHz reference oscillator on the input frequency.

Reference frequency option concept

Back panel overview

1. ​Remote control via LAN (GPIB and USB with R&S®SMBB-B86 option)
2. Input for external pulse modulation signal (R&S®SMBB-K22 option)
3. Variable LF output (R&S®SMBB-K24 option)

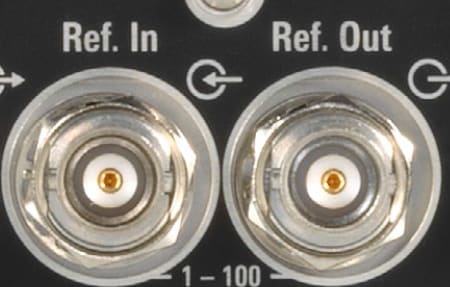

4. Variable reference input/output from 1 MHz to 100 MHz (R&S®SMBB-K704 option)
5. 1 GHz reference input/output (R&S®SMBB-B3 option)
6. FM stereo connectors (R&S®SMBB-B5 option)
