0 reviews | Catalog: 1801.6870.02 | Model: Rohde & Schwarz RTO6-K37
Spectrum Analysis
Your Price: $3,320.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The R&S RTO6-K37 spectrum analysis allows advanced signal analysis in the frequency domain.

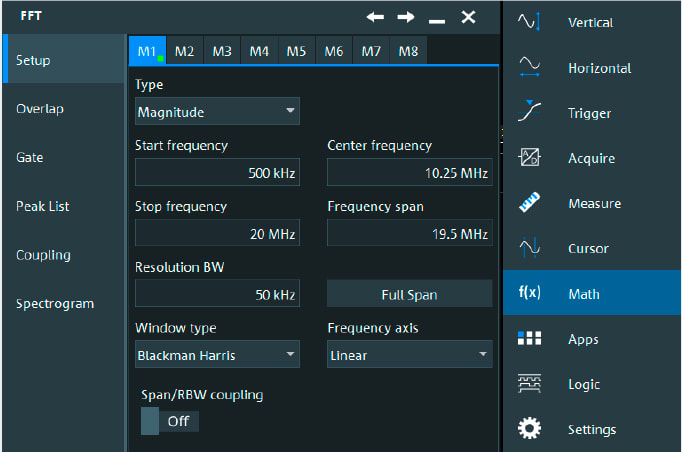

Operate the R&S RTO6 frequency analysis function like a spectrum analyzer. Simply enter the typical parameters: center frequency, span, and resolution bandwidth. Select the window type, FFT overlap, gating, and logarithmic or linear Y-axis scaling based on application requirements.
The R&S RTO6 oscilloscope's overlap FFT splits the captured time-domain signal into overlapping segments and calculates an individual spectrum for each segment. These spectra are then compiled and combined to a complete spectrum with color-coding that corresponds to the frequency of occurrence. The complete spectrum provides a very good overview of the type and recurrence of different frequency emissions. Even sporadic signals are visible.
R&S RTO6 oscilloscopes support powerful multichannel spectrum analysis for up to eight signals in parallel. Their high dynamic range and input sensitivity of 1 mV/div at full measurement bandwidth make it possible to detect even weak emissions. The powerful FFT implementation is ideal for required analysis in the frequency domain thanks to its easy operation, high acquisition rate and functions such as color-coding of the spectral display according to the frequency of occurrence.
The R&S RTO6 oscilloscope gated FFT function applies FFT analysis only to user-defined regions of the acquired time domain signal. Users can move the time window across the entire waveform to determine which segments of the time domain signal correlate to certain events in the spectrum. This makes it possible to correlate unwanted emissions from switched-mode power supplies with overshoots from the switching transistor.

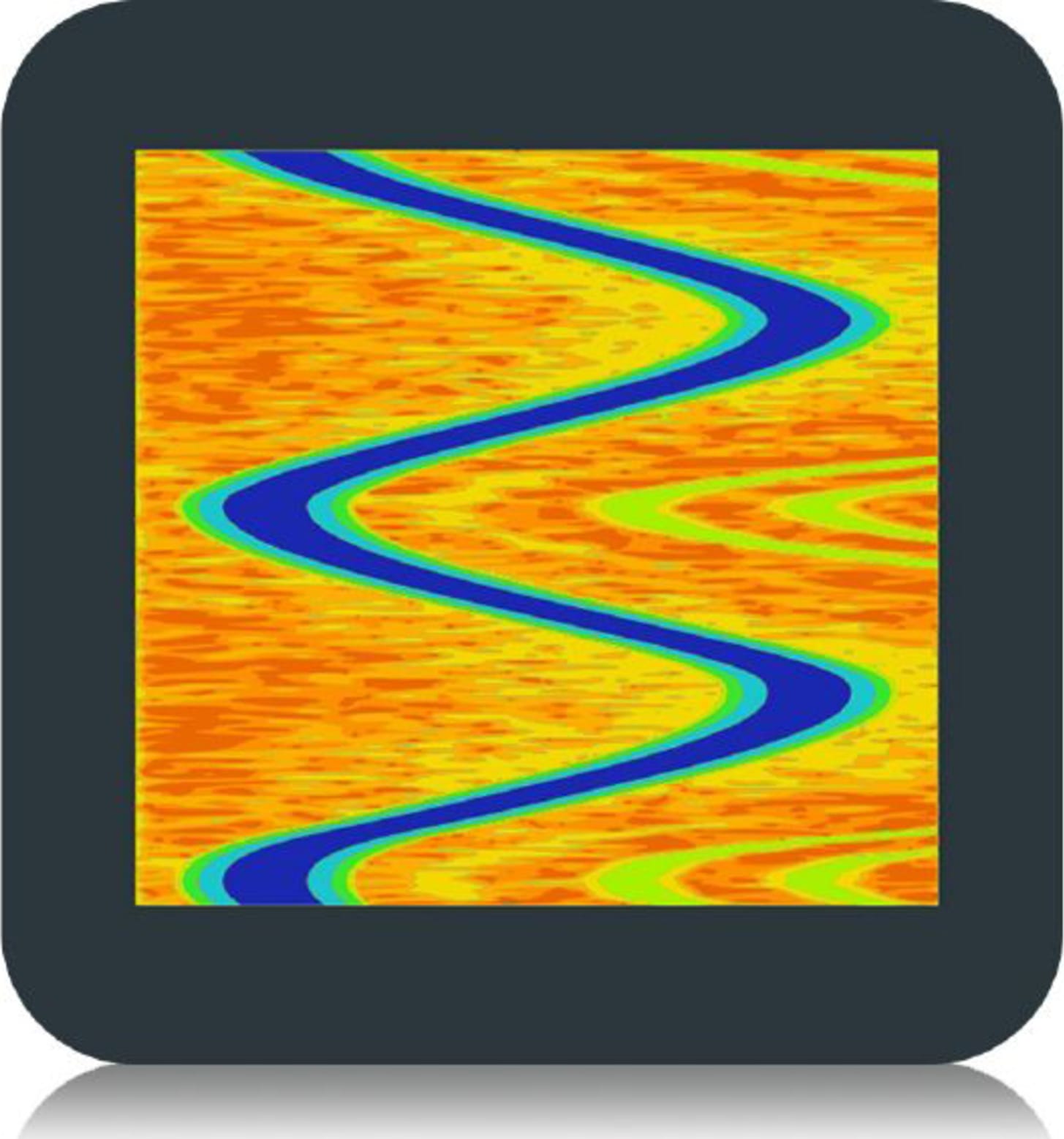

The R&S RTO6 spectrum analysis option is ideal for analyzing time varying signals in the frequency domain. Its spectrogram is a color-coded frequency-timing diagram that displays the spectral power over time. It indicates how the spectrum varies over time in a two-dimensional intensity diagram. R&S RTO6 oscilloscopes allow you to quickly analyze voice and AM/FM modulated signals as well as signals from radar and frequency-hopping systems.
The R&S RTO6 oscilloscope spectrum analysis option enables logarithmic frequency scaling for spectrum and spectrogram displays.
The peak list measurement automatically detects peaks in the FFT spectrum and indicates their magnitude and frequency in the spectrum graph and in a result table.
