| Rohde & Schwarz RTO6-K134 Specifications |
| Noise separation |
total noise (TN),
deterministic noise (DN),
data dependent noise (DDN),
periodic noise (PN),
data dependent noise plus periodic noise (DDN+PN),
random noise (RN),
(other) bounded uncorrelated noise ((OBUN),
random noise plus other (other) bounded uncorrelated noise (RN+(O)BUN) |
| Accepted input signals |
clock signals or data signals (NRZ) |
| Reference clock |
internal clock recovery (PLL first or second order, constant clock or feed forward) or explicit clock signal |
| Basic measurements |
symbol rate, symbol duration, event count |

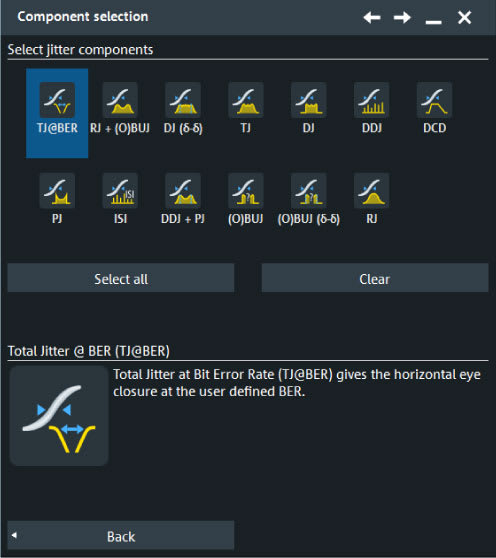

| Noise measurements |
eye height at bit error rate (EN@BER) |
absolute or relative, BER value selectable between 10-32 and 10-1 |
| level distortion (LD) |
absolute or relative value |
| inter symbol interference noise (ISIN) |
absolute or relative value |
| total noise (TN) |
peak-to-peak value and RMS value, absolute or relative |
| deterministic noise (DN) |
peak-to-peak value and RMS value, absolute or relative |
| data dependent noise (DDN) |
peak-to-peak value and RMS value, absolute or relative |
| periodic noise (PN) |
peak-to-peak value and RMS value, absolute or relative |
| data dependent noise plus periodic noise (DDN+PN) |
peak-to-peak value and RMS value, absolute or relative |
| periodic noise components |
amplitude, frequency, direction (vertical or horizontal) |
| random noise (RN) |
RMS value, absolute or relative |
| (other) bounded uncorrelated noise ((O)BUN) |
peak-to-peak value and RMS value, absolute or relative |
| (other) bounded uncorrelated noise ((O)BUN, dual-dirac) |
absolute or relative value |
| random noise plus (other) bounded uncorrelated noise (RJ+(O)BUN) |
peak-to-peak value and RMS value, absolute or relative |
| Statistics |
max. and min. values for each noise measurement type |

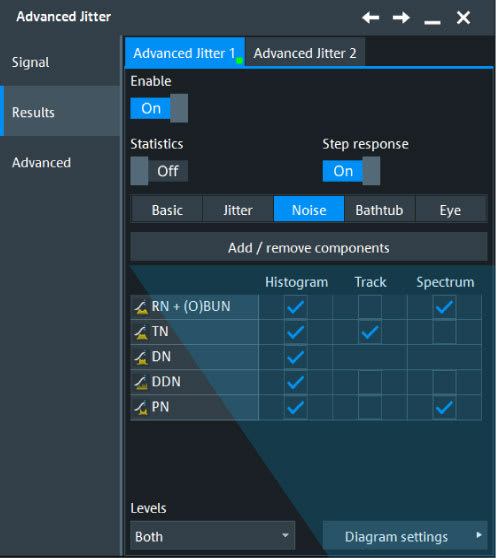

| Noise result plots |
histogram (level 0) |
TN, DN, DDN, PN, RN+OBUN |
| histogram (level 1) |
TN, DN, DDN, PN, RN+OBUN |
| histogram (both levels) |
TN, DN, DDN, PN, RN+OBUN |
| TIE track |
TN, DDN, PN, RN+OBUN |
| power spectral density (PSD) |
TN, DDN, PN, RN+OBUN |
| Additional result plots |
step responses |
| noise bathtub |
PN and (O)BUN removable from noise bathtub |
| synthetic eye diagram |
DD only, DD+P(h), DD+P(v), DD+P |
