0 reviews | Catalog: 1801.6887.02 | Model: Rohde & Schwarz RTO6-K121
Deembedding option for compensation of channel effects such as mismatch or lossy transmission due to signal traces, probe tips, cables or test fixtures (software license)
Your Price: $7,295.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The R&S RTO6-K121 deembedding base option allows waveform correction based on S-parameters of the involved measurement blocks. The R&S RTO6-K121 option is available for R&S®RTO6-B92, R&S RTO6-B93, R&S RTO6-B94 and R&S RTO6-B96 options only.

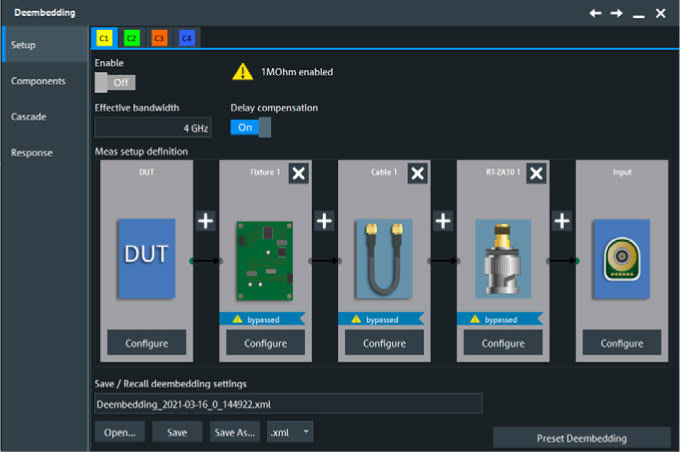

Transmission losses caused by the signal path can be corrected by activating the deembedding option. A cascade of signal path blocks can be defined here. The individual blocks are described by S-parameters that can be derived from simulation or measured with a vector network analyzer. The deembedding software automatically calculates the correction filter for the overall system response.
