| Rohde & Schwarz RTO6-K11 Specifications |
| R&S RTO6-K11 I/Q Software Interface |
| General |

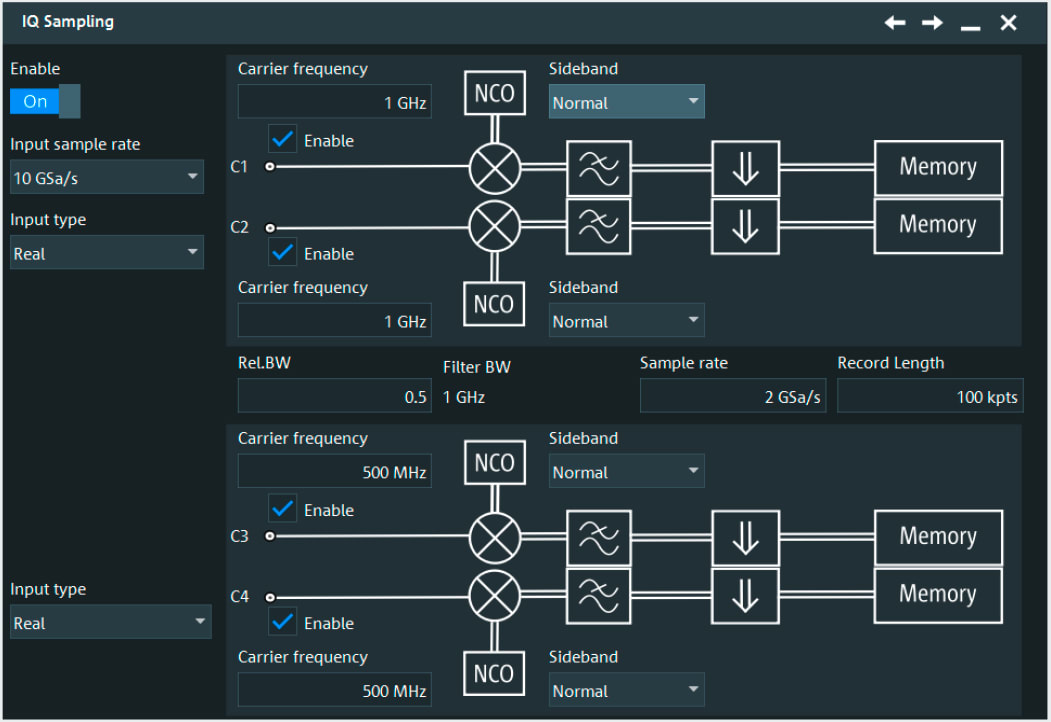

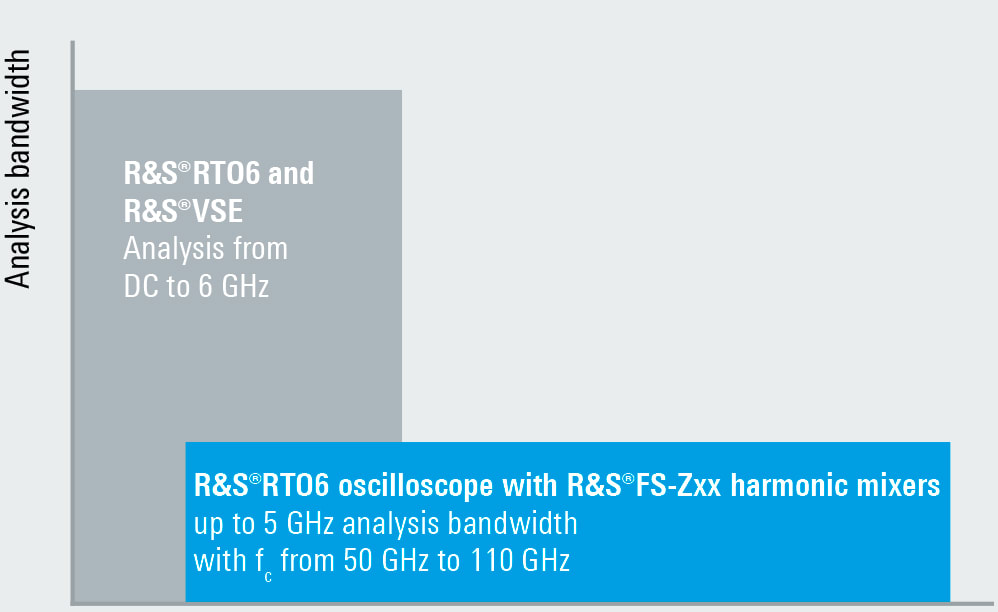

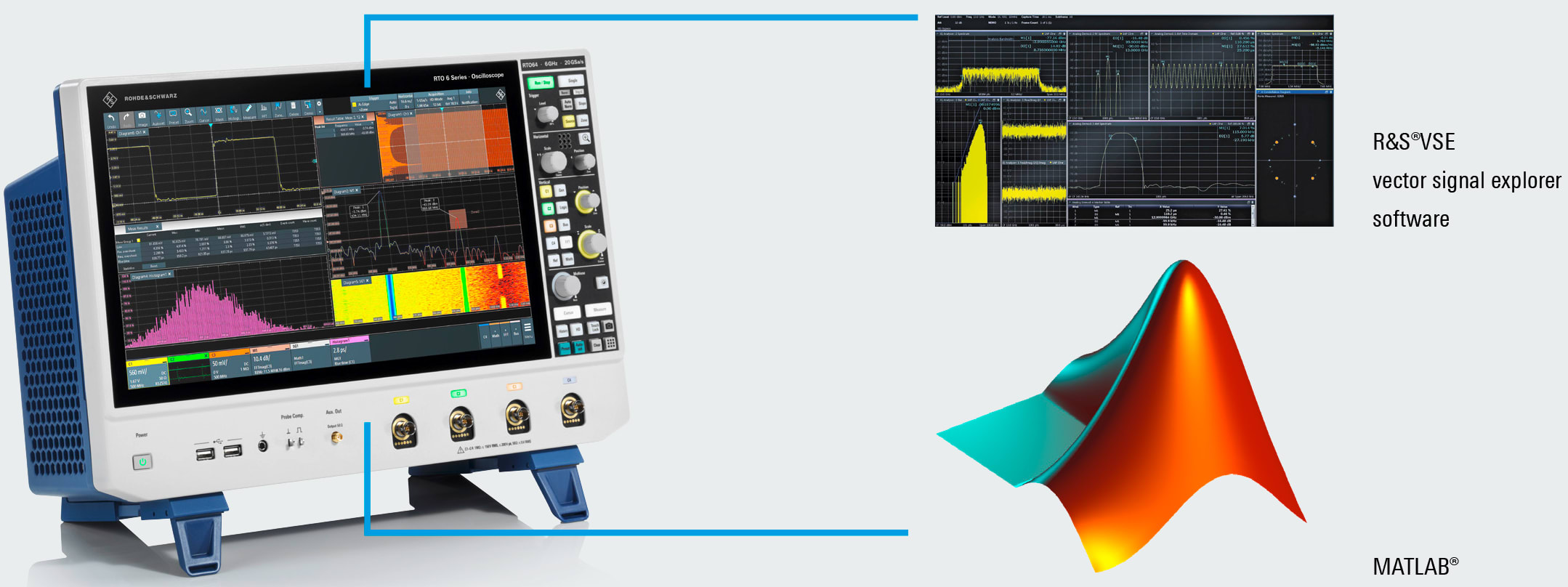

Function |
Mixing, filtering, decimation, and recording of RF or baseband signals as I/Q samples |
| Input signals |
Four real RF signals or two complex I/Q signals or two real RF signals and one complex I/Q signal |
| Mixer frequency |
Between 100 Hz and 5 GHz (or mixer deactivated) |
| Sampling rate of recorded I/Q samples |
Between 1 ksample/s and 10 Gsample/s |
| Digital filter bandwidth (flat frequency response) |
4% to 80% of sampling rate |
| Sampling rate of recorded I/Q samples |
Between 1 ksample/s and 10 Gsample/s user-selectable |
| Recording length |
Recording length independent of sampling rate |
| Standard |
Max. 10 Mpoints with one or two input signals,
Max. 6 Mpoints with three or four input signals |
| R&S RTO6-B110 option |
Max. 40 Mpoints with one or two input signals,
Max. 24 Mpoints with three or four input signals |
| Trigger |
Mode |
Auto or normal |
| Operation |
Triggers on acquired signal after A/D conversion serial bus and MSO trigger not available |
| Additional modes |
NFC-A, 106 kbps, SENSA_REQ;
NFC-B, 106 kbps, SENSB_REQ; NFC-F, 202 kbps or 404 kbps, start of sequence
(SoS) length: 48 bit or 96 bit |
| Display |
|
Magnitude of the down converted signals |
| Amplitude Flatness with RF Signal input (meas.) |
R&S RTO6-B90 option |
Max. used center frequency |
With I/Q bandwidth 100 MHz |
With I/Q bandwidth 250 MHz |
| ≤ 100 MHz |
±0.10 dB |
|
| ≤ 200 MHz |
±0.12 dB |
±0.30 dB |
| ≤ 300 MHz |
±0.20 dB |
±0.50 dB |
| ≤ 400 MHz |
±0.25 dB |
±0.70 dB |
| ≤ 500 MHz |
±0.35 dB |
±1.00 dB |
| R&S RTO6-B91 option |
Max. used center frequency |
With I/Q bandwidth 100 MHz |
With I/Q bandwidth 250 MHz |
| ≤ 100 MHz |
±0.10 dB |
|
| ≤ 200 MHz |
±0.10 dB |
±0.15 dB |
| ≤ 500 MHz |
±0.10 dB |
±0.25 dB |
| ≤ 750 MHz |
±0.15 dB |
±0.40 dB |
| ≤ 1 GHz |
±0.30 dB |
±0.90 dB |
| R&S RTO6-B92 option |
Max. used center frequency |
With I/Q bandwidth 100 MHz |
With I/Q bandwidth 500 MHz |
| ≤ 100 MHz |
±0.10 dB |
|
| ≤ 500 MHz |
±0.10 dB |
±0.10 dB |
| ≤ 1 GHz |
±0.17 dB |
±0.35 dB |
| ≤ 1.5 GHz |
±0.20 dB |
±0.50 dB |
| ≤ 2 GHz |
±0.35 dB |
±1.00 dB |
| R&S RTO6-B93 option |
Max. used center frequency |
With I/Q bandwidth 100 MHz |
with I/Q bandwidth 500 MHz |
| ≤ 100 MHz |
±0.10 dB |
|
| ≤ 500 MHz |
±0.10 dB |
±0.10 dB |
| ≤ 1 GHz |
±0.10 dB |
±0.35 dB |
| ≤ 2 GHz |
±0.10 dB |
±0.35 dB |
| ≤ 3 GHz |
±0.30 dB |
±1.30 dB |
| R&S RTO6-B94 option |
Max. used center frequency |
With I/Q bandwidth 100 MHz |
With I/Q bandwidth 500 MHz |
| ≤ 100 MHz |
±0.10 dB |
|
| ≤ 500 MHz |
±0.10 dB |
±0.10 dB |
| ≤ 1 GHz |
±0.10 dB |
±0.10 dB |
| ≤ 2 GHz |
±0.10 dB |
±0.15 dB |
| ≤ 3 GHz |
±0.12 dB |
±0.30 dB |
| ≤ 4 GHz |
±0.30 dB |
±0.75 dB |
