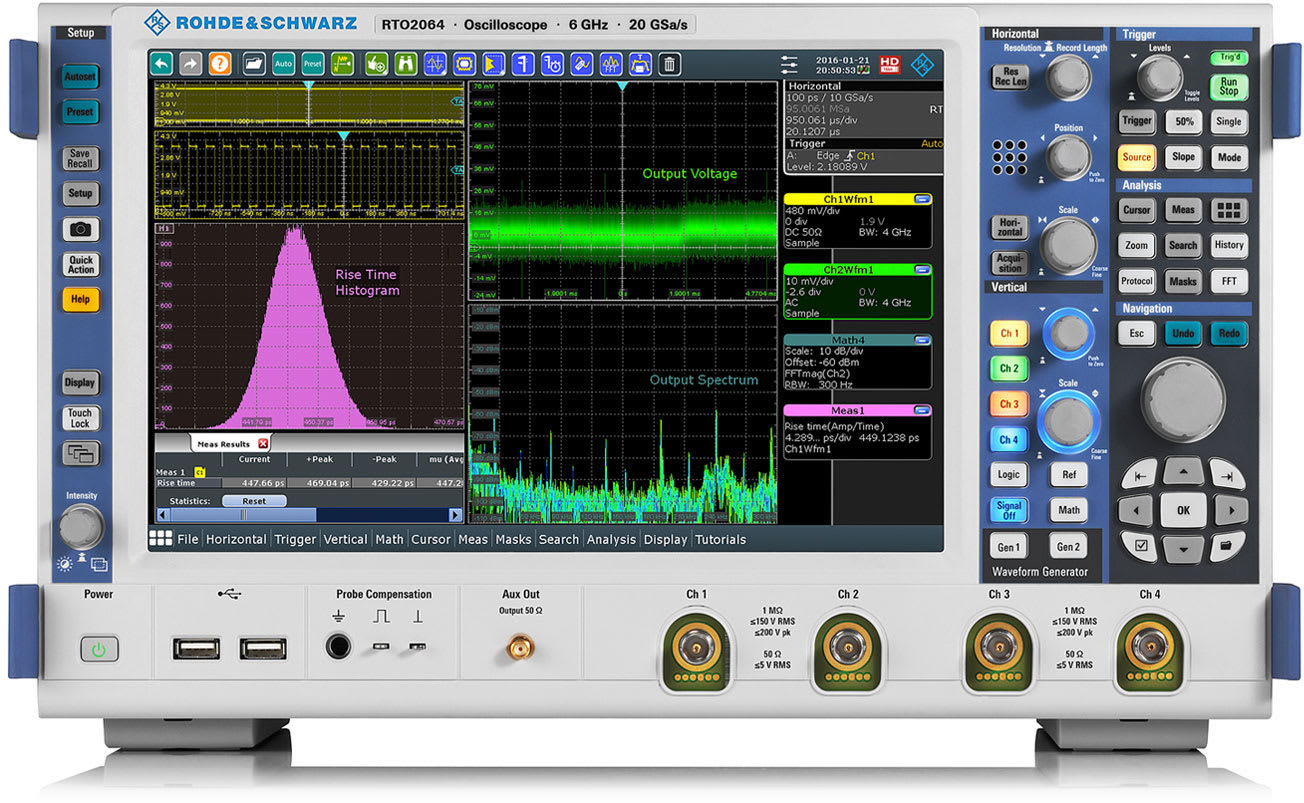

| Rohde & Schwarz RTO2004 Specifications |
| Specifications in brief |
| Vertical system |
| Number of channels |
R&S®RTO2004 |
4 |
| Analog bandwidth (–3 dB) and rise time at 50 Ω |
R&S®RTO2004 |
600 MHz (583 ps) |
| All instruments can be extended to up to 6 GHz bandwidth |
| Impedance |
|
50 Ω ± 1.5%, 1 MΩ ± 1% at 15 pF (meas.) |
| Input sensitivity |
max. bandwidth in all ranges |
50 Ω: 1 mV/div to 1 V/div, 500 μV to 1 V (optional); 1 MΩ: 1 mV/div to 10 V/div, 500 μV to 10 V (optional) |
| ENOB of A/D converter |
full-scale sine wave, < –3 dB frequency bandwidth |
> 7 bit (meas.) |
| Acquisition system |
| Real-time sampling rate |
R&S®RTO200x |
max. 10 Gsample/s on each channel |
| Acquisition memory |
standard configuration, per channel/1 channel active |
R&S®RTO 2-channel model: 50/100 Msample,
R&S®RTO 4-channel model: 50/200 Msample |
| max. upgrade (R&S®RTO-B110 option), per channel/1 channel active |
R&S®RTO 2-channel model: 1/2 Gsample,
R&S®RTO 4-channel model: 1/2 Gsample |
| Max. acquisition rate |
continuous acquisition and display, 10 Gsample/s, 1 ksample |
1000000 waveforms/s |
| ultra-segmented mode |
< 300 ns blind time |

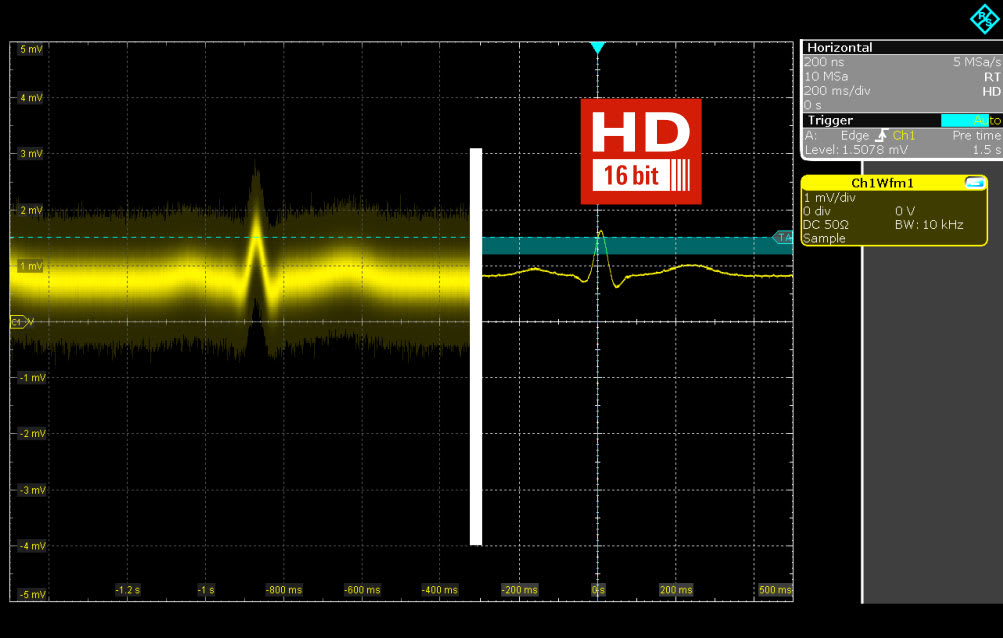

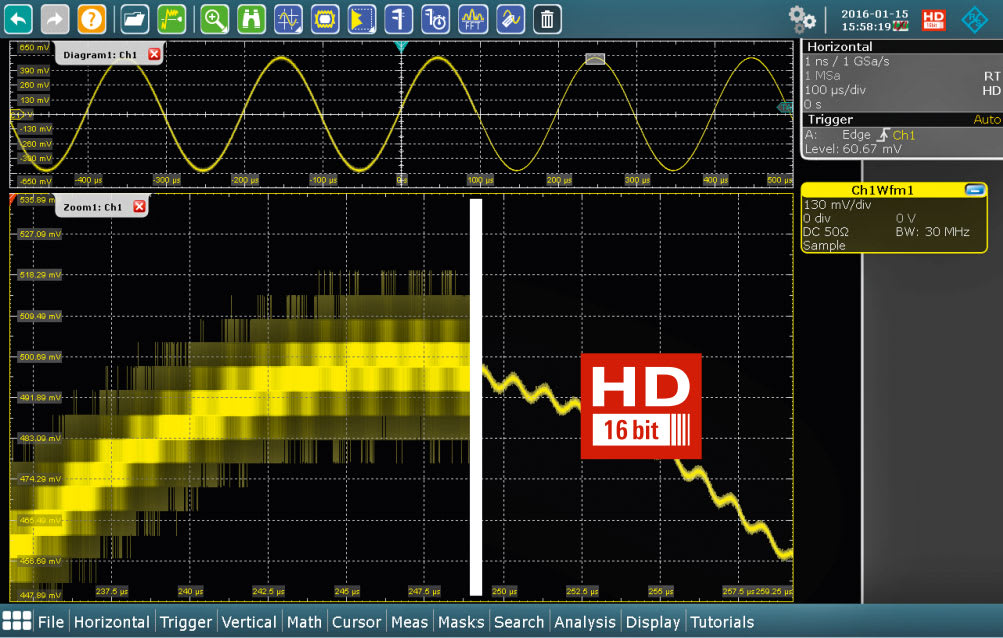

| Decimation mode |
any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel |
sample, peak detect, high resolution, root mean square |
| Waveform arithmetics |
|
off, envelope, average |
| Interpolation modes |
|
linear, sin(x)/x, sample & hold |
| Horizontal system |
| Timebase range |
|
25 ps/div to 10000 s/div |
| Accuracy |
after delivery/calibration |
±5 ppm |
| |
R&S®RTO-B4 option |
±0.02 ppm |
| Trigger system |
| Trigger types |
|
edge, glitch, width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, serial pattern, TV/video, serial bus trigger (optional), zone trigger (optional) |
| Zone trigger (optional) |
|
logical combination of max. 8 polygons, intersect or not intersect source: measurement channels, spectrum, math functions |
| Sensitivity |
definition of trigger hysteresis |
automatic or manually adjustable from 0 div to 5 div |
| General data |
| Dimensions |
W × H × D |
427 mm × 249 mm × 204 mm (16.81 in × 9.8 in × 8.03 in) |
| Weight |
|
9.6 kg (21.2 lb) |
| Screen |
|
12.1" LC TFT capacitive color touchscreen, 1280 × 800 pixel (XGA) |
| Interfaces |
|
1 Gbps LAN, type A: 2 × USB 3.1, 2 × USB 2.0, type B: 1 × USB 3.1, GPIB (optional), DVI and display port for external monitor, external trigger, trigger output |
