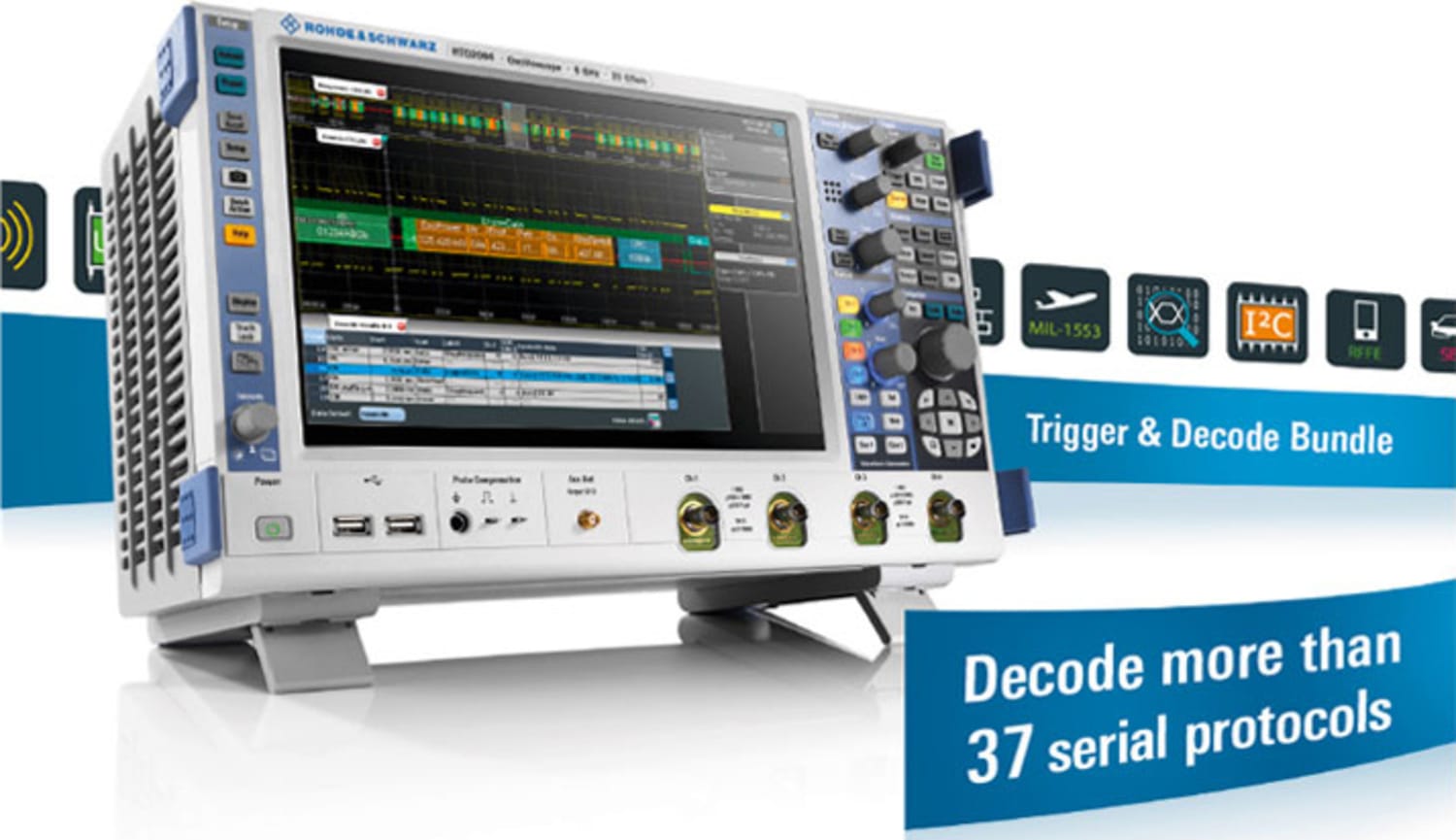

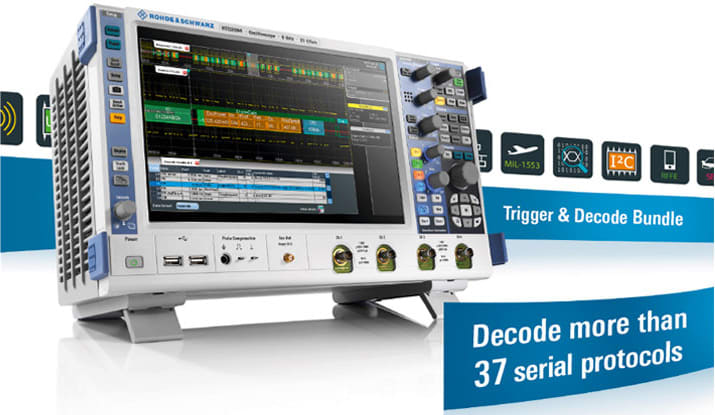

Rohde and Schwarz RTO-TDBNDL - Trigger and Decode Bundle Option (Catalog 1326.4202.02)

Name: Rohde and Schwarz RTO-TDBNDL - Trigger and Decode Bundle Option (Catalog 1326.4202.02)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTO-TDBNDL
Price: 9140.00 USD
Availability: InStock

0 reviews | Catalog: 1326.4183.02 | Model: Rohde & Schwarz RTO-TDBNDL

Compare

Trigger and Decode Bundle, consisting of I2C/SPI (RTO-K1), UART/RS232 (RTO-K2), CAN/LIN (RTO-K3), FlexRay (RTO-K4), I2S (RTO-K5), MIL (RTO-K6), ARINC (RTO-K7), Ethernet (RTO-K8), CAN-FD (RTO-K9), SENT (RTO-K10), MIPI-RFFE (RTO-K40), MIPI-D-PHY(RTO-K42), MIPI-M-PHY (RTO-K44), Custom (RTO- K50), 8b10b (RTO-K52), MDIO (RTO K55), 100BASE-T1 (RTO-K57), USB 2.0 (RTO-K60), USB 3.1gen1(RTO-61), USB-PD (RTO-K63), SpaceWire (RTO-65), PCle2.0 (RTO-K72), and CXPI (RTO-K76). (Software License)

Catalog number 1326.4202.02
For use with RTO2000 series oscilloscopes
Includes I²C/SPI, UART/RS232, CAN/LIN, FlexRay, I²S, MIL, ARINC, Ethernet, 100BASE-T1, CAN-FD, SENT, MIPI-RFFE, MIPI-D-PHY, MIPI-M-PHY, Custom, 8b10b, MDIO, USB 2.0, USB 3.1gen1, USB-PD, USB-SSIC, SpaceWire, PCIe2.0. CXPI
Bus setup in seconds with the app cockpit
Telegram display as color-coded bus signals and in decode table
Strong trigger capability on events and various error conditions
Powerful search and navigate capability
Fast eye-diagram mask testing with up to 600 000 waveforms/s

View Product Details

Your Price: $9,140.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-TDBNDL - Trigger and Decode Bundle Option (Catalog 1326.4202.02)

Rohde & Schwarz - RTO-TDBNDL - Trigger and Decode Bundle Option

Catalog number 1326.4202.02
For use with RTO2000 series oscilloscopes
Includes I²C/SPI, UART/RS232, CAN/LIN, FlexRay, I²S, MIL, ARINC, Ethernet, 100BASE-T1, CAN-FD, SENT, MIPI-RFFE, MIPI-D-PHY, MIPI-M-PHY, Custom, 8b10b, MDIO, USB2.0. USB3.1gen1, USB-PD, USB-SSIC, SpaceWire, PCIe2.0. CXPI
Bus setup in seconds with the app cockpit
Telegram display as color-coded bus signals and in decode table

The trigger and decode bundle option for R&S®RTO oscilloscopes enables decoding of more than 37 protocols. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified efficiently and reliably using the hardware-accelerated trigger. There is a trigger on start of frame, frame type, data, and various error conditions.

Trigger and decode bundle option enables decoding of more than 35 protocols

8b10b
ARINC 429
Automotive Ethernet 100BASE-T1
CAN
CAN-FD
CXPI
DALI
Ethernet 10BASE-T
Ethernet 100BASE-Tx
Foundation Fieldbus H1
Flexray
I²C

I²S/LJ/RJ/TDM
LIN
Manchester
MDIO
MIL-STD-1553
MIPI-D-PHY
MIPI-M-PHY
MIPI-RFFE
MIPI-Unipro
MVB
NRZ
PCIe1.1

PCIe2.x
Profibus DP
Profibus PA
SENT
Spacewire
SPI
UART/RS-232/RS-422/RS-485
USB 1.0/1.1
USB 2.0
USB-HSIC
USB 3.1gen1
USB-PD
USB-SSIC

Bus Setup in Seconds with the App Cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

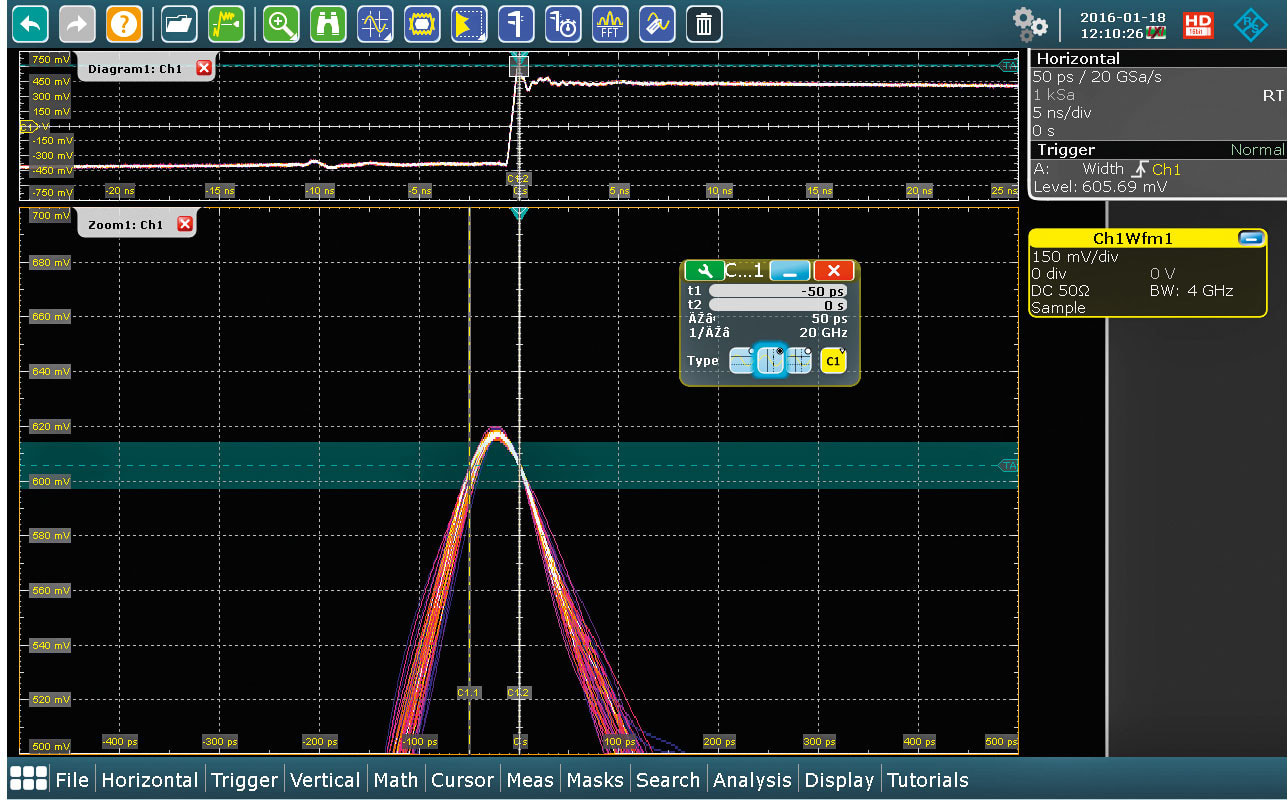

Strong Trigger Capability

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data, and protocol errors.

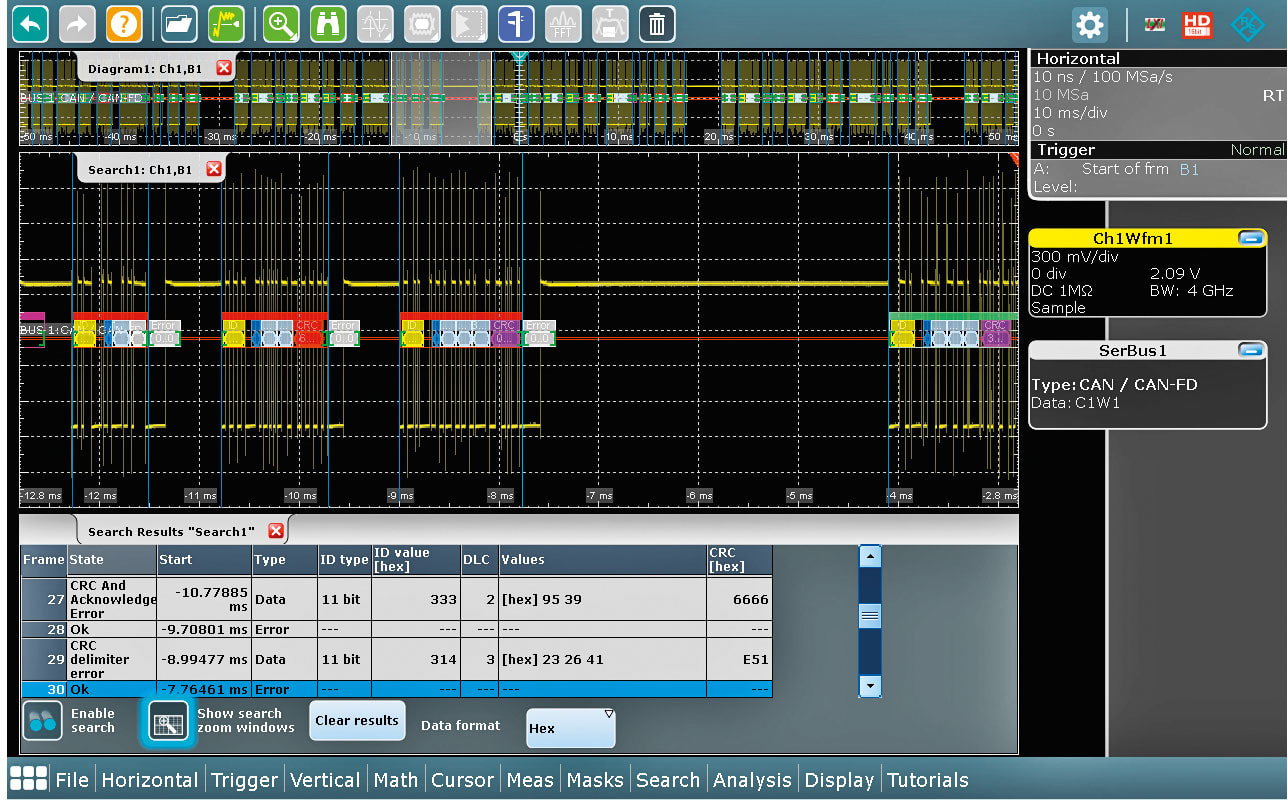

Powerful Search and Navigate Capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
