0 reviews | Catalog: 1333.0444.02 | Model: Rohde & Schwarz RTO-K92
eMMC Compliance Test Software for R and S RTO Oscilloscopes (for models 1329.7002.xx) (software license)
Your Price: $5,575.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The R&S RTO-K92 option offers an automated test solution for eMMC interfaces according to JEDEC specification JESD84-B51 version 5.1, covering HS200 and HS400 bus speed modes. The test wizard guides the user via illustrated step-by-step instructions. A configurable test report documents the test results. Automatic test sequences allow for a fast test execution.

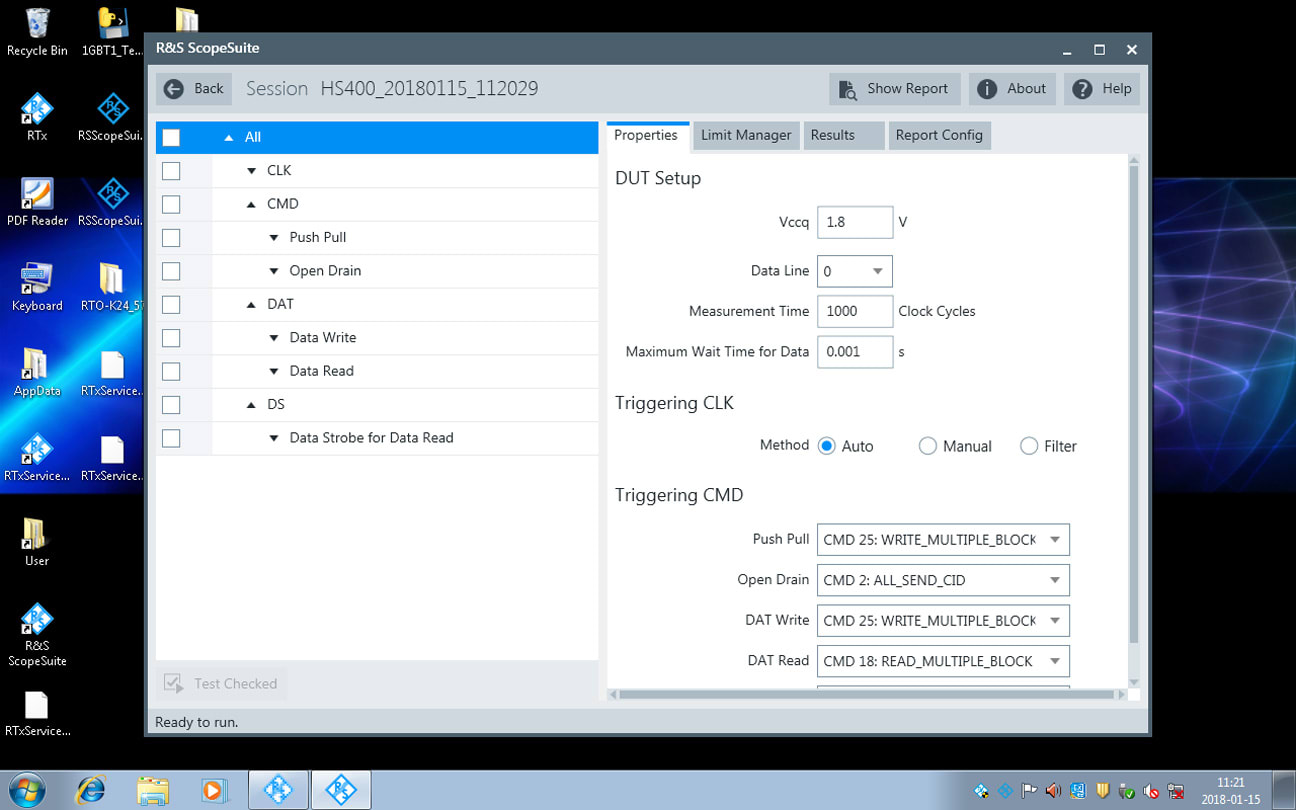

The complete test solution covers all relevant test cases of the JEDEC specification JESD84-B51 version 5.1 for the eMMC interfaces. A test fixture is available for signal access via a differential probe for accurate signals.
The R&S ScopeSuite has a test wizard for guided steps. The tests used are fully automatic. In addition, single tests can be carried out for efficient debugging. The limit editor lets you individually adjust standard-specific test limits.

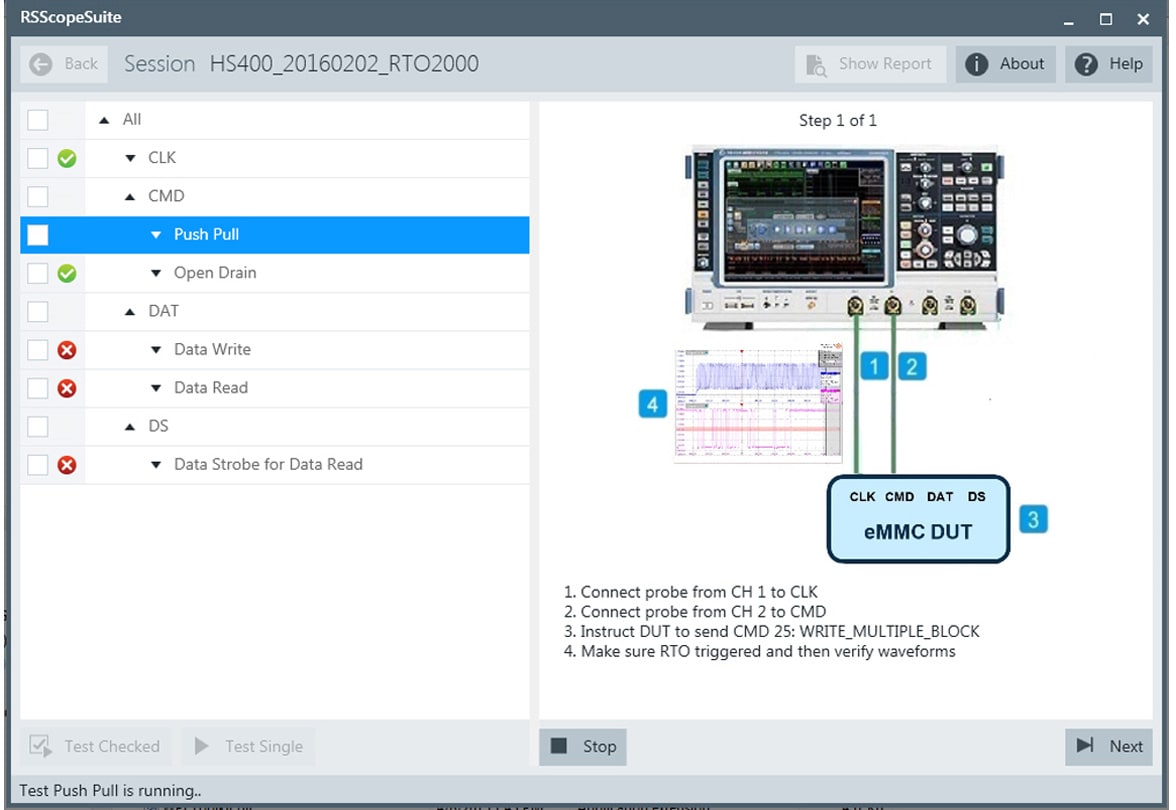

The eMMC Compliance test is a fully guided test. Detailed, image-based instructions make it easy to correctly connect the oscilloscope and the probes to the test fixture and the device under test. This increases the ease-of-use and reduces potential setup errors.

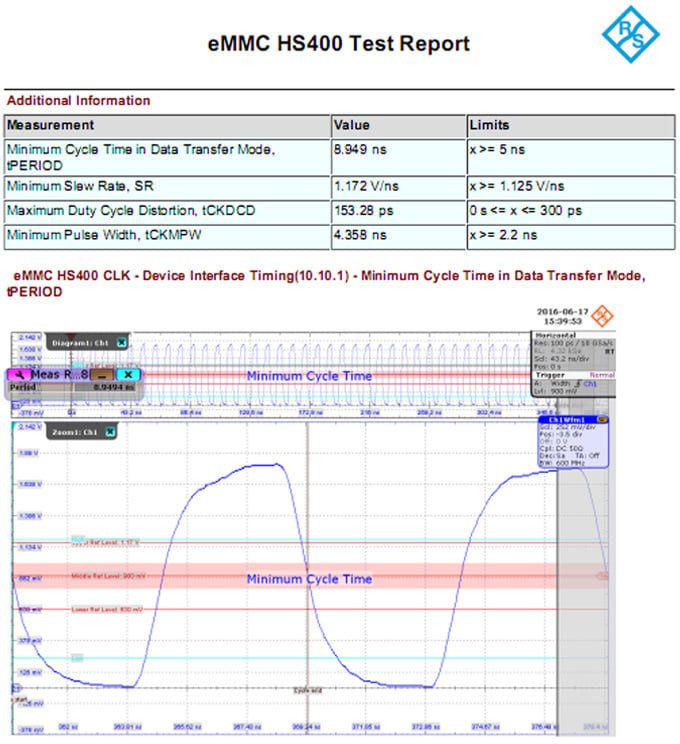

The test results are fully documented in a report created by the R&S ScopeSuite. Depending on the user’s preference, the test report can include numerical result data or oscilloscope screen shots. The available output formats are PDF, DOC and HTML.
