Rohde and Schwarz RTO-K9 - CAN-FD Triggering and Decoding (Catalog 1329.7348.02)

Name: Rohde and Schwarz RTO-K9 - CAN-FD Triggering and Decoding (Catalog 1329.7348.02)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTO-K9
Price: 2755.00 USD
Availability: InStock

0 reviews | Catalog: 1329.7348.02 | Model: Rohde & Schwarz RTO-K9

Rohde & Schwarz RTO-K9 - CAN-FD Triggering and Decoding (Catalog 1329.7348.02)

Compare

CAN-FD extension of R and S RTO-K3 CAN serial triggering and decoding requires R and S RTO-K3 CAN T and D license (for models 1329.7002.xx) (software license)

Catalog number 1329.7348.02
For use with RTO2000 series oscilloscopes
Serial standard: CAN-FD
Decode table, trigger, symbolic T&D, search
Symbolic decoding for CAN and CAN-FD addresses, including industry-standard CAN DBC file support
Telegram display as color-coded bus signals and in decode table
Trigger on start of frame, frame ID, data and various error conditions
On-screen serial decoding is time-correlated with the serial data waveform
Fastest CAN and CAN-FD eye-diagram mask testing with standard mask test functionality

View Product Details

Your Price: $2,755.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-K9 - CAN-FD Triggering and Decoding (Catalog 1329.7348.02)

Catalog number 1329.7348.02
For use with RTO2000 series oscilloscopes
Serial standard: CAN-FD
Decode table, trigger, symbolic T&D, search
Symbolic decoding for CAN and CAN-FD addresses, including industry-standard CAN DBC file support

R&S RTO oscilloscopes support triggering and decoding of the CAN flexible data rate (CAN-FD) extension, including CAN DBC file import. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and in a table. Errors are identified efficiently using the hardware-accelerated trigger. You can trigger on start of frame, frame ID, data and various error conditions.

Bus setup in seconds with the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

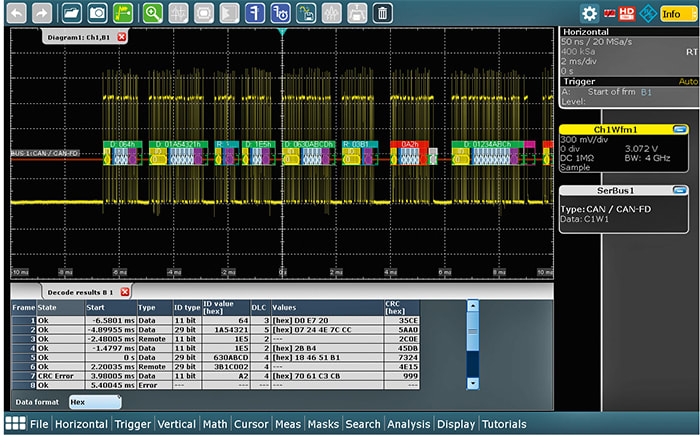

Telegram display as color-coded bus signals and in decode table

You can analyze the decoded bus frames with a color-coded data overlay over the bus signal. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. Additionally, the telegrams can be displayed in a concise table.

Strong trigger capability on start of frame, frame ID, data or various error conditions

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
