Rohde and Schwarz RTO-K8 - Ethernet Serial Decoding (Catalog 1329.7331.02)

Name: Rohde and Schwarz RTO-K8 - Ethernet Serial Decoding (Catalog 1329.7331.02)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTO-K8
Price: 2755.00 USD
Availability: InStock

0 reviews | Catalog: 1329.7331.02 | Model: Rohde & Schwarz RTO-K8

Rohde & Schwarz RTO-K8 - Ethernet Serial Decoding (Catalog 1329.7331.02)

Compare

10/100BASE-T Ethernet serial decoding (for models 1329.7002.xx) (software license)

Catalog number 1329.7331.02
For use with RTO2000 series oscilloscopes
Serial standard: Ethernet
Includes decode table, trigger, label support, search
On-screen serial decoding is time-correlated with the serial data waveform
Telegram display as color-coded bus signals and in decode table
Powerful search and navigate capability on 10BASE-T and 100BASE-TX for start of frame, source and destination MAC and for data and error conditions
Supports decoding of up to 4 serial buses

View Product Details

Your Price: $2,755.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-K8 - Ethernet Serial Decoding (Catalog 1329.7331.02)

Catalog number 1329.7331.02
For use with RTO2000 series oscilloscopes
Serial standard: Ethernet
Includes decode table, trigger, label support, search
On-screen serial decoding is time-correlated with the serial data waveform

R&S RTP, R&S RTO and R&S RTE oscilloscopes support decoding of 10BASE-T and 100BASE-TX Ethernet. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified efficiently and reliably using the hardware-accelerated trigger.

Bus setup in seconds with the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

Telegram display as color-coded bus signals and in decode table

You can analyze the decoded bus frames with a color-coded data overlay over the bus signal. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. Additionally, the telegrams can be displayed in a concise table.

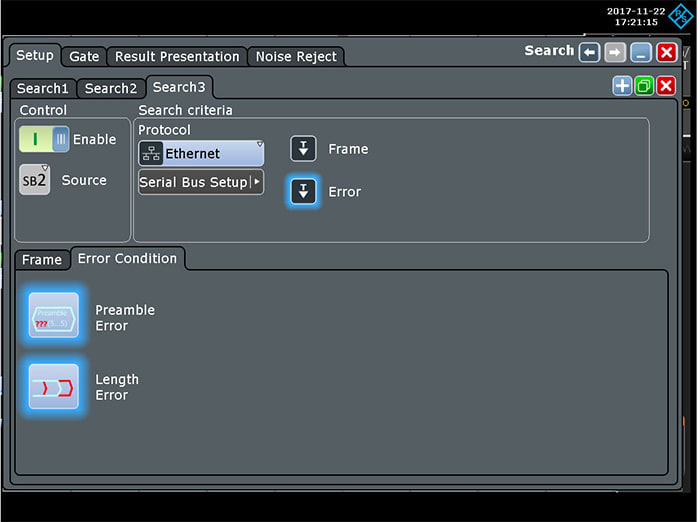

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
