Rohde and Schwarz RTO-K7 - ARINC 429 Triggering and Decoding (Catalog 1329.7325.02)

Name: Rohde and Schwarz RTO-K7 - ARINC 429 Triggering and Decoding (Catalog 1329.7325.02)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTO-K7
Price: 2755.00 USD
Availability: InStock

0 reviews | Catalog: 1329.7325.02 | Model: Rohde & Schwarz RTO-K7

Rohde & Schwarz RTO-K7 - ARINC 429 triggering and decoding (Catalog 1329.7325.02)

Compare

ARINC 429 serial triggering and decoding (for models 1329.7002.xx) (software license)

Catalog number 1329.7325.02
For use with RTO2000 series oscilloscopes
Serial standard: ARINC 429
Includes decode table, trigger, label support, search
Symbolic decoding for ARINC 429 address
Telegram display as color coded bus signals and in decode table
Trigger on word start, word stop, label, data or various error conditions
On-screen serial decode is time-correlated with the serial data waveform
Fastest ARINC 429 eye-diagram mask testing with standard mask test functionality

View Product Details

Your Price: $2,755.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-K7 - ARINC 429 Triggering and Decoding (Catalog 1329.7325.02)

Catalog number 1329.7325.02
For use with RTO2000 series oscilloscopes
Serial standard: ARINC 429
Includes decode table, trigger, label support, search
Symbolic decoding for ARINC 429 address

R&S RTP, R&S RTO, R&S RTE, R&S RTA4000 and R&S®RTM3000 oscilloscopes support triggering and decoding of ARINC 429 buses. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified efficiently and reliably using the hardware-accelerated trigger. You can trigger on word start, word stop, label, data and various error conditions.

Bus setup in seconds with the app cockpit

The configuration for any given protocol is accomplished in just a few steps starting from the app cockpit. Once the bus to decode has been chosen, the connected channels have been selected and the correct levels have been set, decoding begins automatically.

Telegram display as color coded bus signals and in decode table

You can analyze the decoded bus frames with a color coded data overlay over the bus signal. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. Additionally, the telegrams can be displayed in a concise table.

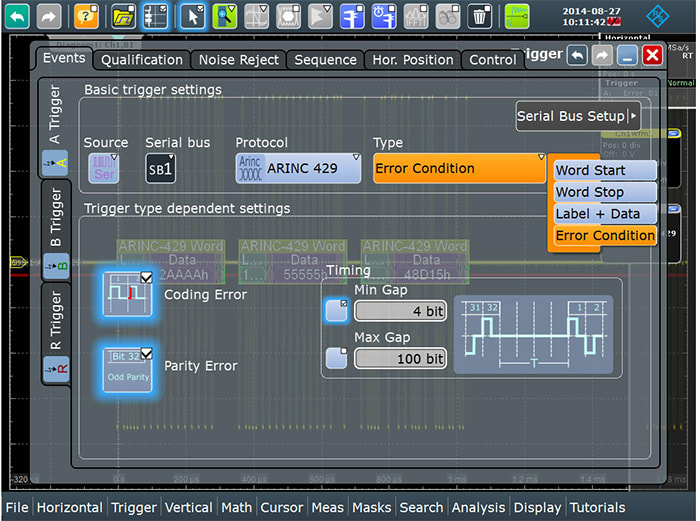

Strong trigger capability on word start, word stop, label, data or various error conditions

Reliable isolation of protocol events and errors is possible with the protocol-specific trigger. R&S oscilloscopes are ideal for finding errors quickly because of high acquisition rates, allowing decoding of protocol-specific trigger results. The Hardware-based triggering is available on specific protocol content, e.g. addresses or data, as well as on protocol errors.

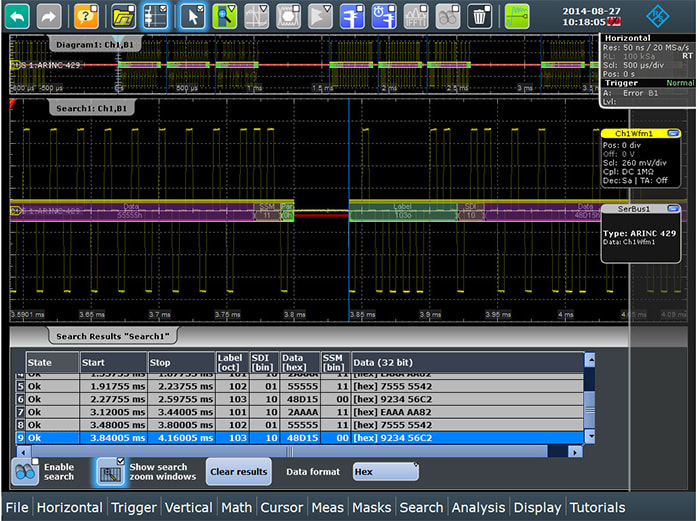

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with a simple navigation between events.
