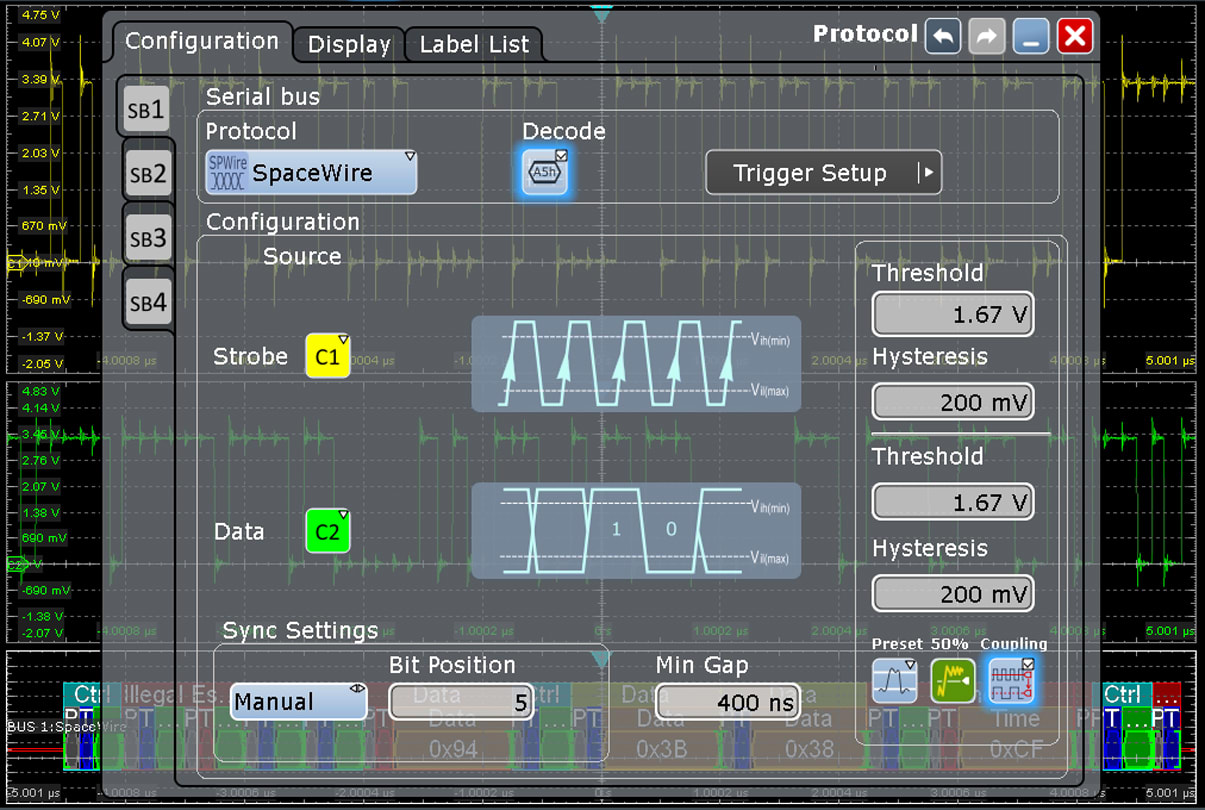

Bus setup in seconds with the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

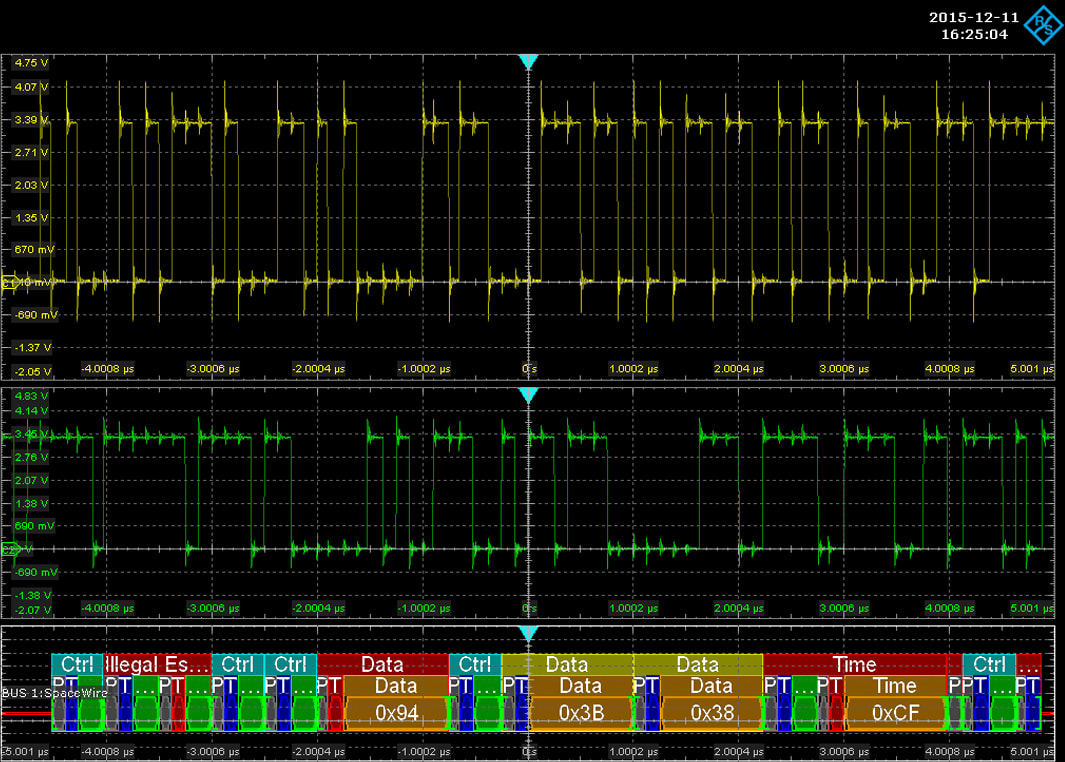

Telegram display as color-coded bus signals and in decode table

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The telegrams can also be displayed in a concise table.

Strong trigger capability on control frame, data pattern, NULL frames, time codes and error conditions

Reliable isolation of protocol events and errors is possible with the protocol-specific trigger. R&S oscilloscopes are ideal for finding errors quickly because of high acquisition rates, allowing decoding of protocol-specific trigger results. The Hardware-based triggering is available on specific protocol content, e.g. addresses or data, as well as on protocol errors.

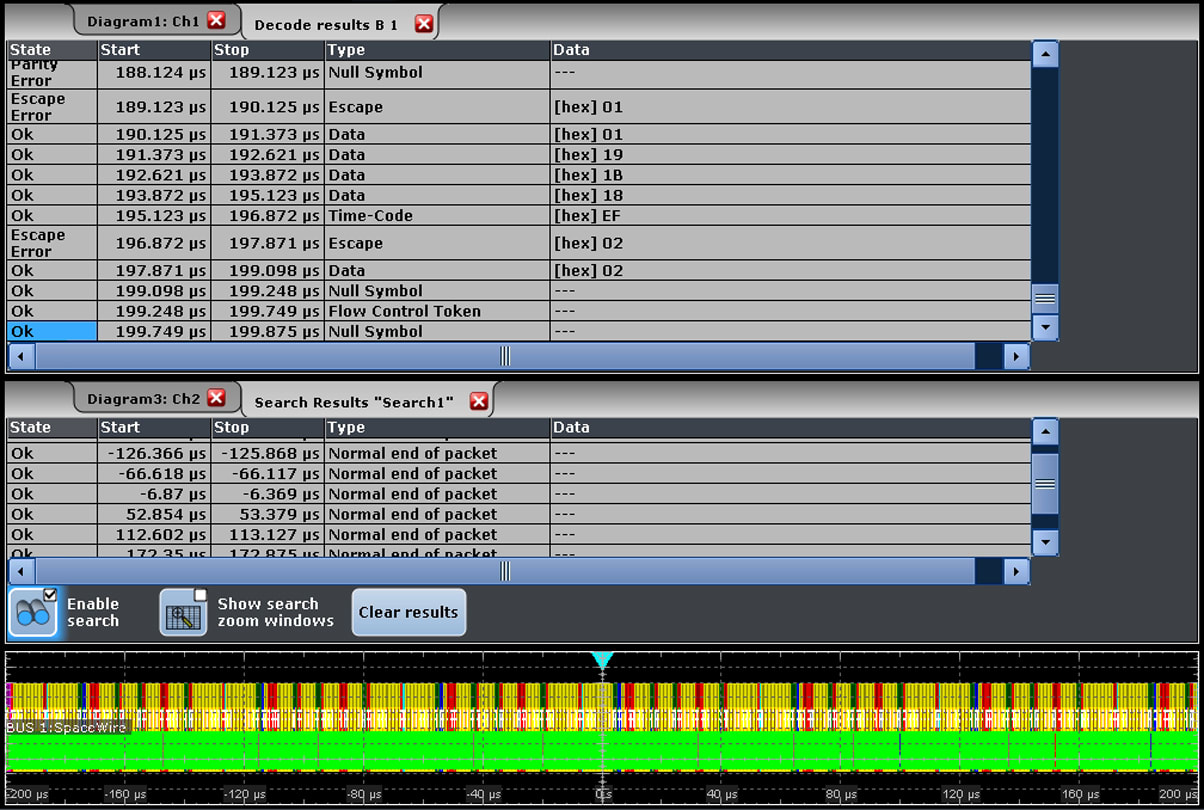

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
