0 reviews | Catalog: 1333.0596.02 | Model: Rohde & Schwarz RTO-K57
IEEE 100BASE-T1/BroadR-Reach serial triggering and decoding (for models 1329.7002.xx) (software license)
Your Price: $4,795.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The R&SRTO oscilloscope supports serial triggering and decoding of 100BASE-T1 Automotive Ethernet standards. Efficiently trigger on frame start, Idle frames, MAC frames including destination & source address, frame types and on various error conditions.

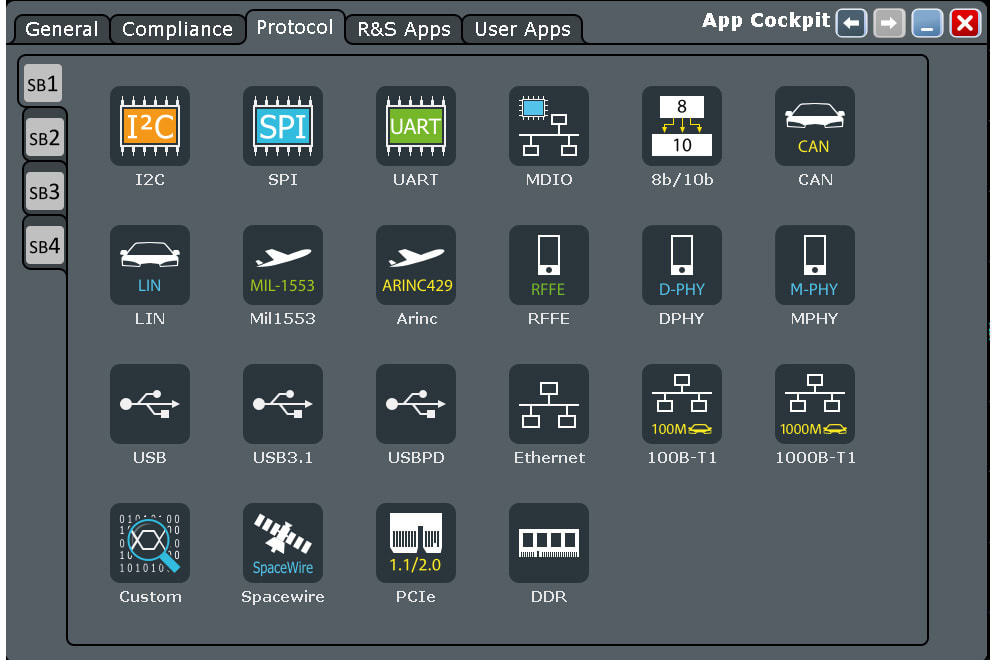

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

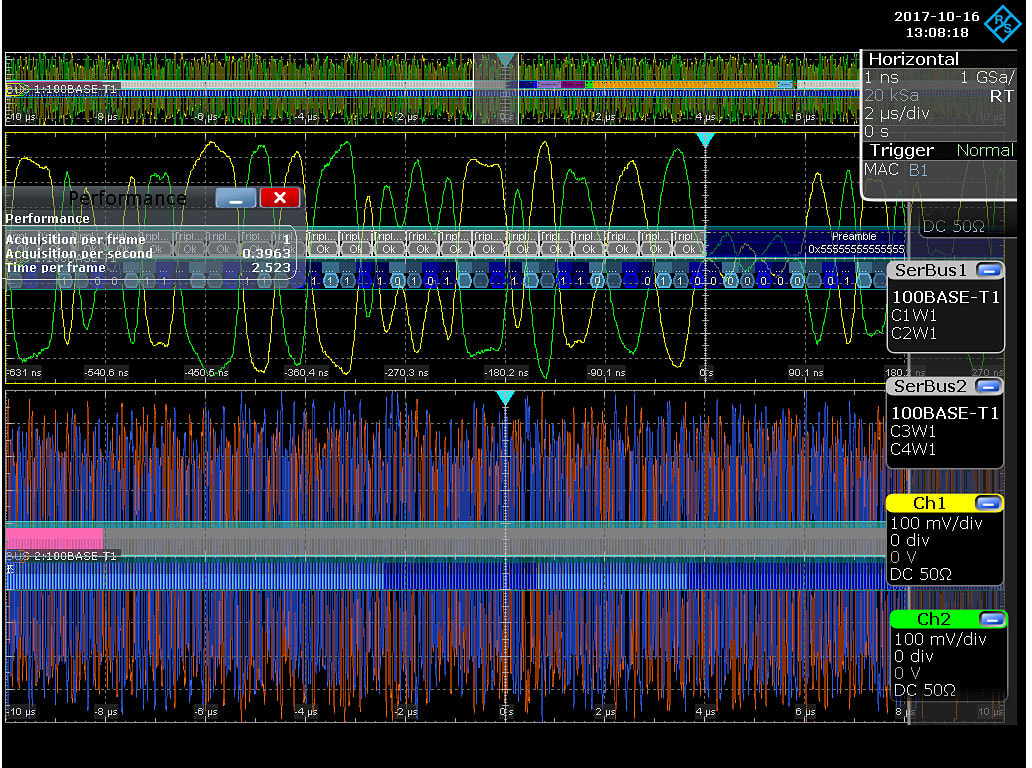

RT-ZF5 fixture allows you to decode both the forward and reverse data streams of either 100BASE-T1 or 1000BASE-T1 at the same time. You can compensate the directivity of the fixture to obtain accurate decoding results.

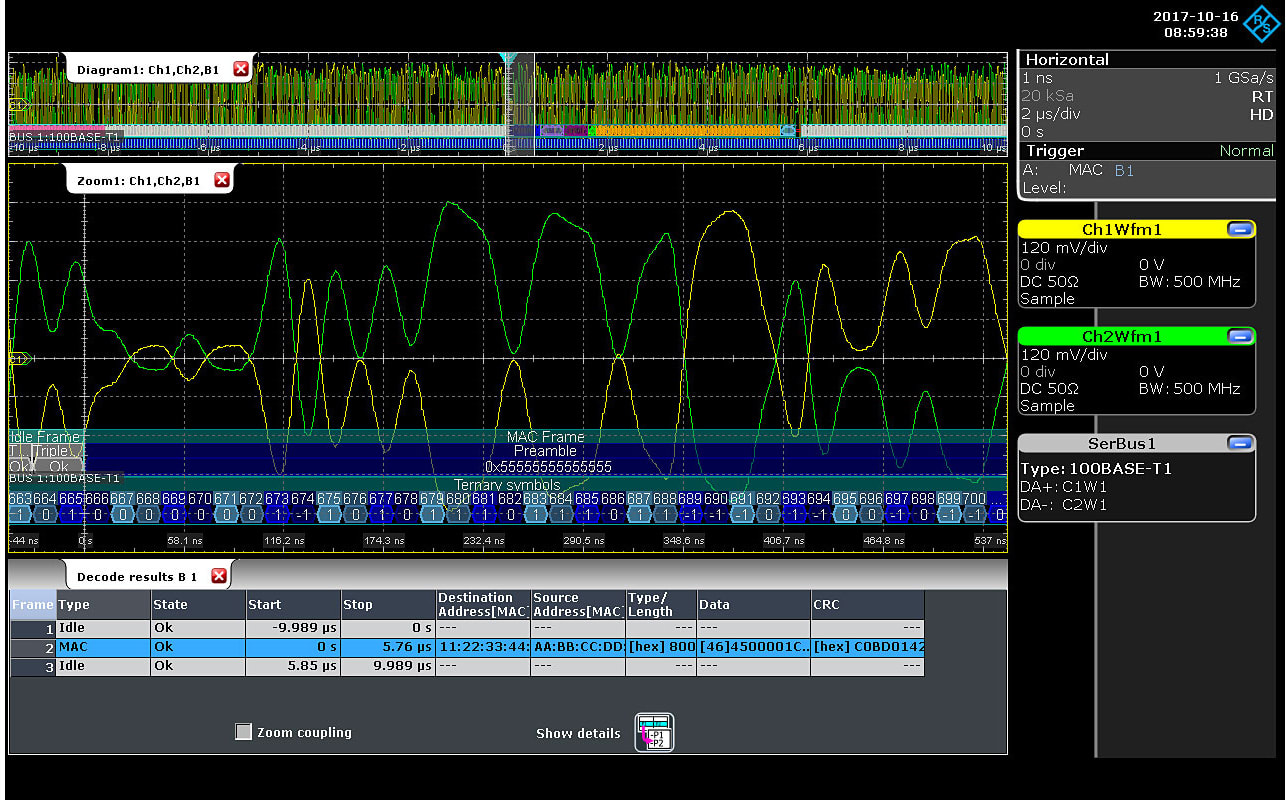

You can analyze the decoded bus on different decode layers. Most important is the ternary signals to directly correlate the decoding to the electrical signal. For further analysis, you can additionally show the scrambled and descrambled bits.

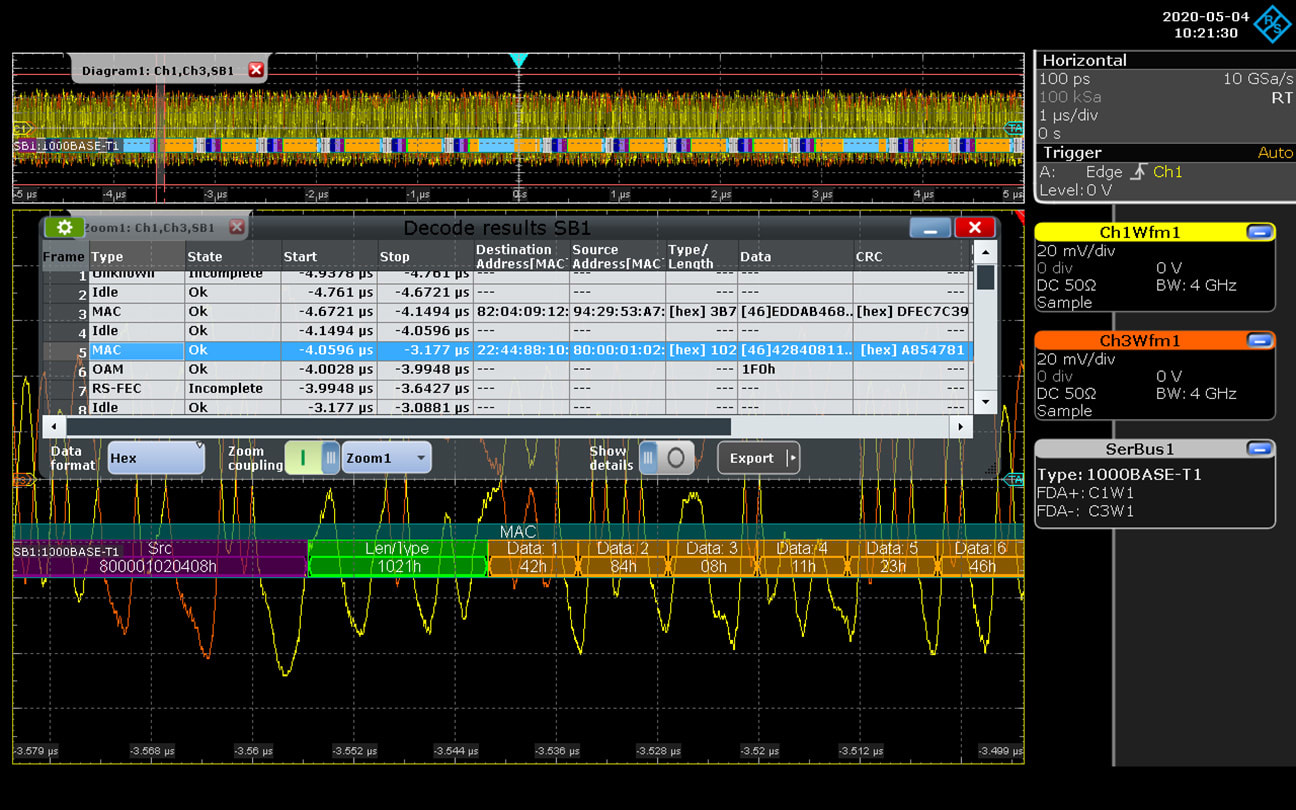

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The protocol details can also be displayed in a concise table. Select the data format and decode layer that best fits your analysis needs.

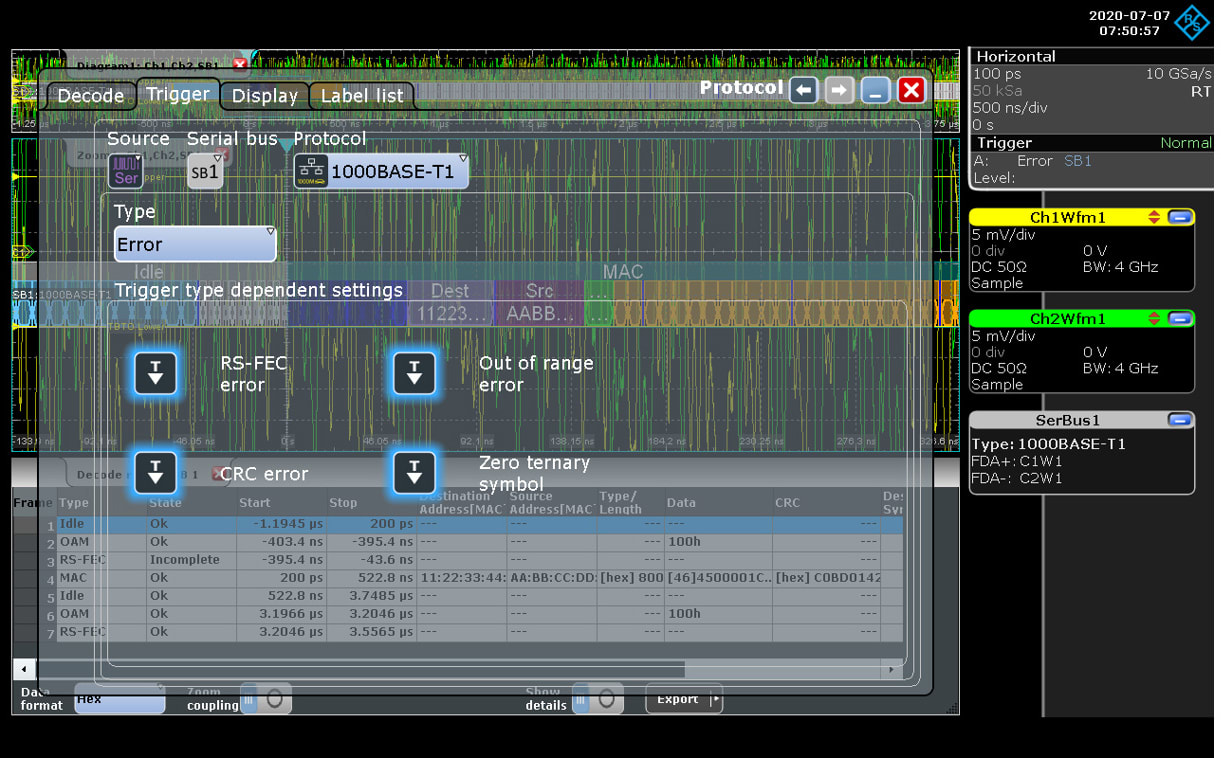

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

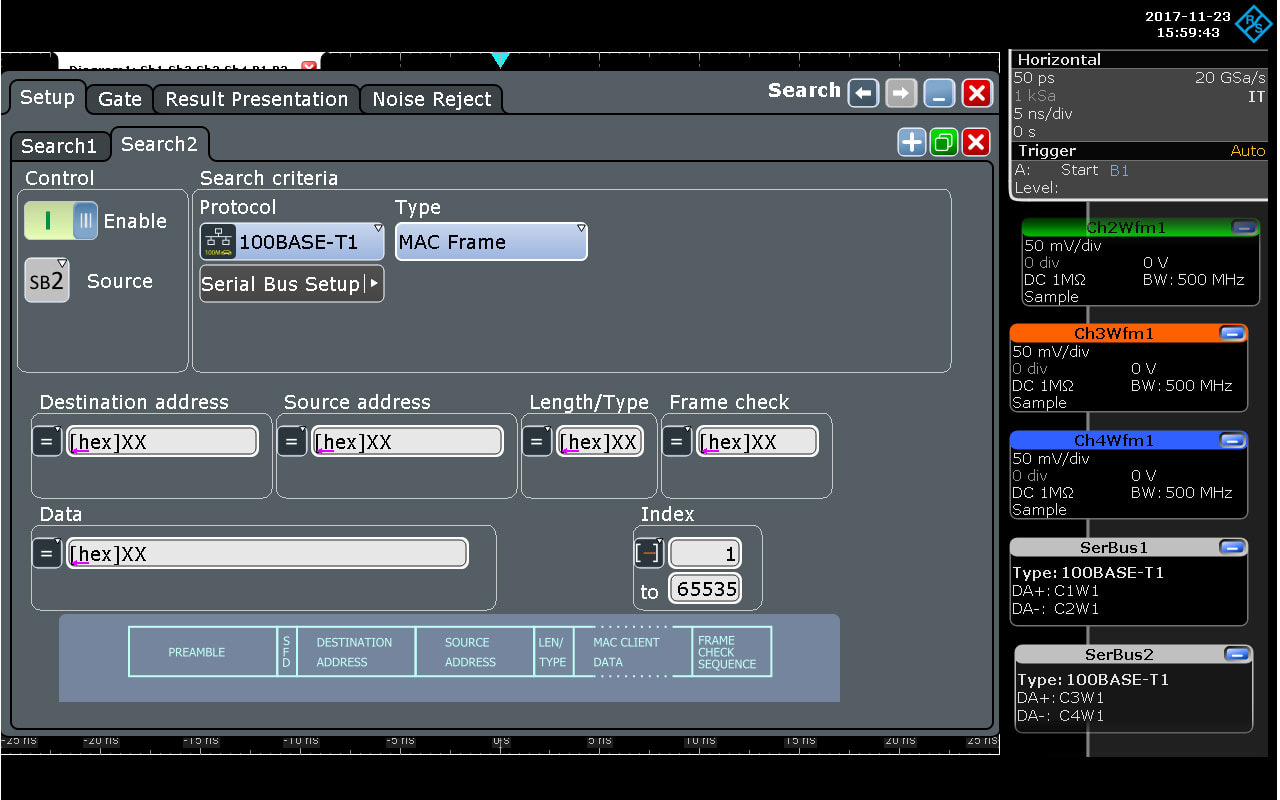

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
