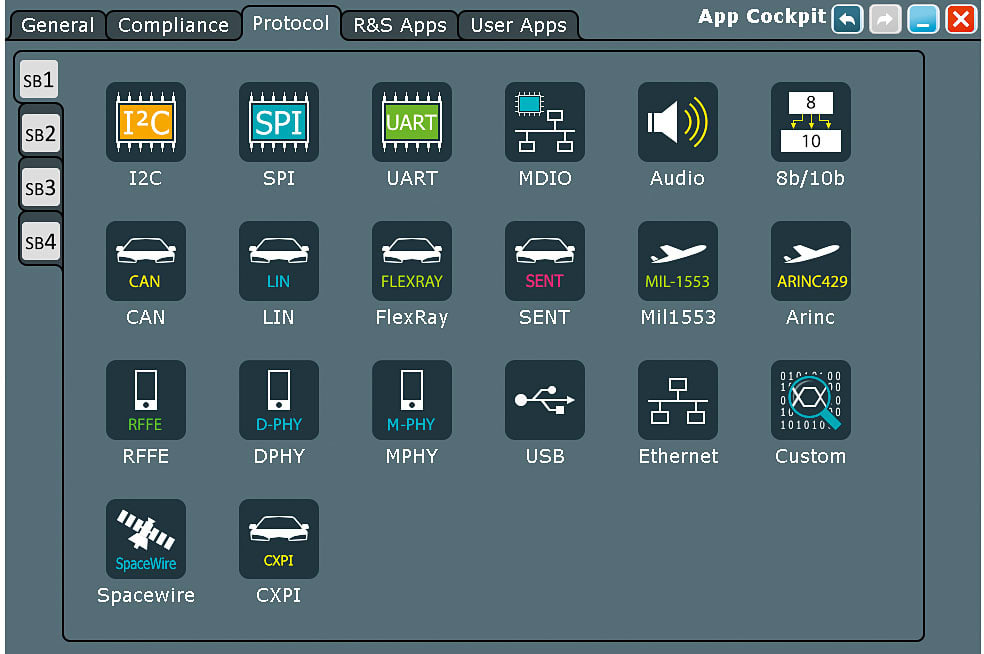

Bus setup in seconds with the app cockpit

The configuration for any given protocol is accomplished in just a few steps starting from the app cockpit. Once the bus to decode has been chosen, the connected channels have been selected and the correct levels have been set, decoding begins automatically.

Telegram display as color coded bus signals and in decode table

You can analyze the decoded bus frames with a color coded data overlay over the bus signal. Address and data content can be displayed in hex format. You always have the best overview with the flexible screen setup. Additionally, the telegrams can be displayed in a concise table.

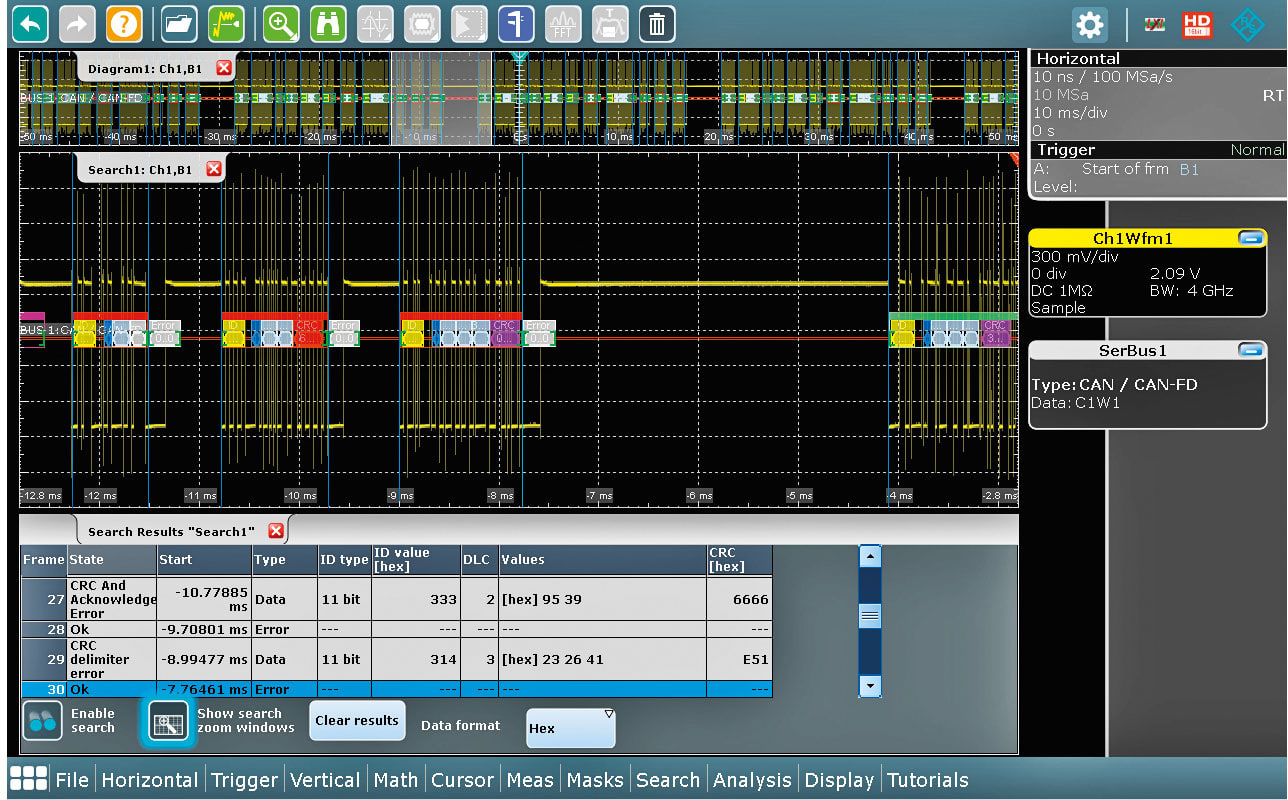

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with a simple navigation between events.
