Rohde and Schwarz RTO-K5 - I²S Triggering and Decoding (Catalog 1329.7302.02)

Name: Rohde and Schwarz RTO-K5 - I²S Triggering and Decoding (Catalog 1329.7302.02)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTO-K5
Price: 2755.00 USD
Availability: InStock

0 reviews | Catalog: 1329.7302.02 | Model: Rohde & Schwarz RTO-K5

Rohde & Schwarz RTO-K5 - I�S triggering and decoding (Catalog 1329.7302.02)

Compare

I2S/LJ/RJ/TDM serial triggering and decoding (for models 1329.7002.xx) (software license)

Catalog number 1329.7302.02
For use with RTO2000 series oscilloscopes
Bus setup in seconds with the app cockpit
Hardware-based triggering & decoding to find errors faster
Supports I²S standard, left justified, right justified and TDM signals
Trigger on data, window, frame condition, word select or various error conditions
Fast eye-diagram mask testing with up to 600 000 waveforms/s

View Product Details

Your Price: $2,755.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-K5 - I²S Triggering and Decoding (Catalog 1329.7302.02)

Catalog number 1329.7302.02
For use with RTO2000 series oscilloscopes
Bus setup in seconds with the app cockpit
Hardware-based triggering & decoding to find errors faster
Supports I²S standard, left justified, right justified and TDM signals

All Rohde & Schwarz oscilloscopes support triggering and decoding of the I²S audio standard, left and right justified and TDM signals. You can set up decoding in seconds. For analysis, results can be viewed as color-coded telegrams and in a table. Errors are identified by the hardware-accelerated trigger. You can trigger on data, window, frame condition, word select and various error conditions.

Bus setup in seconds with the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

Supports I²S standard, left justified, right justified and TDM signals

You can use the R&S®RTx-K5 option to decode the most common I²S audio signals, left justified, right justified and TDM.

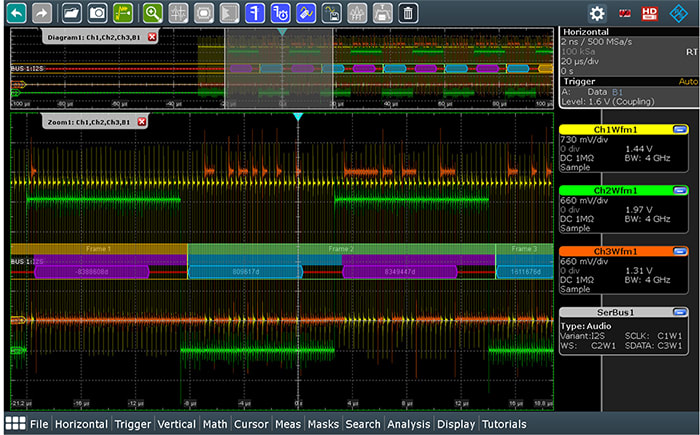

Telegram display as color-coded bus signals and in decode table

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The telegrams can also be displayed in a concise table.

Strong trigger capability on data, window, frame condition, word select and various error conditions

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
