• Catalog number 1329.7525.02
• For use with RTO2000 series oscilloscopes
• Serial standard MIPI D-PHY
• Includes decode table, trigger, search
• Decoding and triggering of low power (LP) and high speed (HS) parts

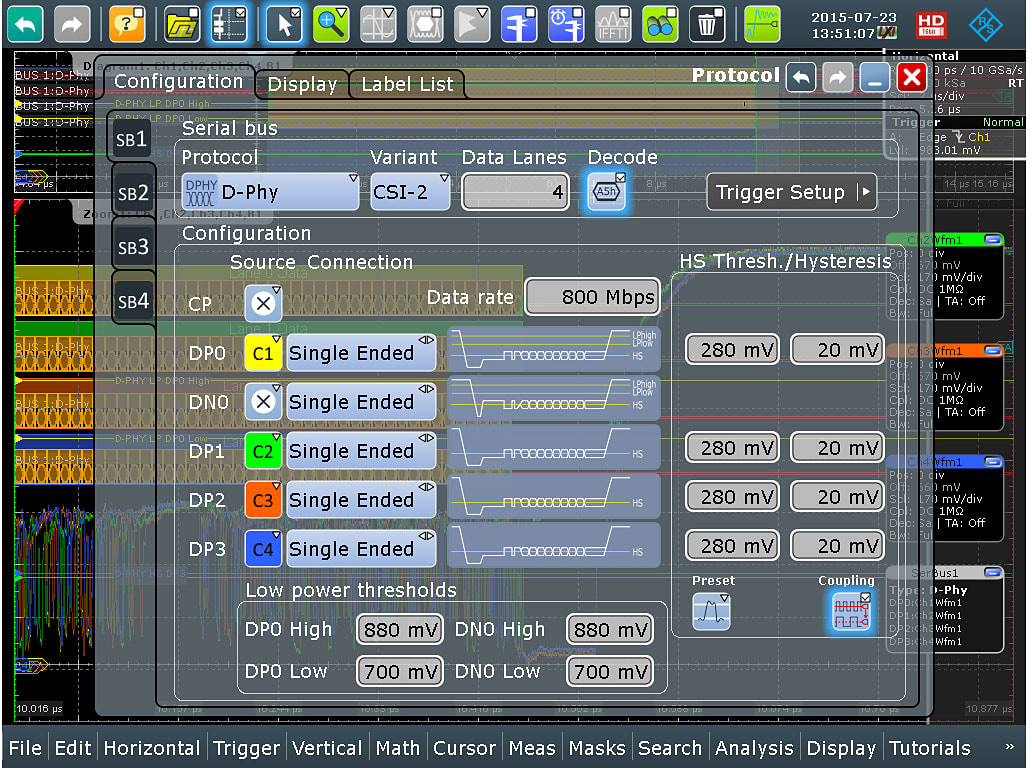

Bus setup in seconds starting from the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

Telegram display as color-coded bus signals and in decode table

Different standards for limiting the harmonic current must be met when developing switched-mode power supplies. The R&S RTO-K31 option helps you test in line with all common standards: EN 61000-3-2 classes A,B,C,D, MIL-STD-1399 and RTCA DO-160.

Trigger on HS start of packet, HS end of packet, HS packet header, HS data, LP escape mode, LP lane turnaround, LP HS request

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

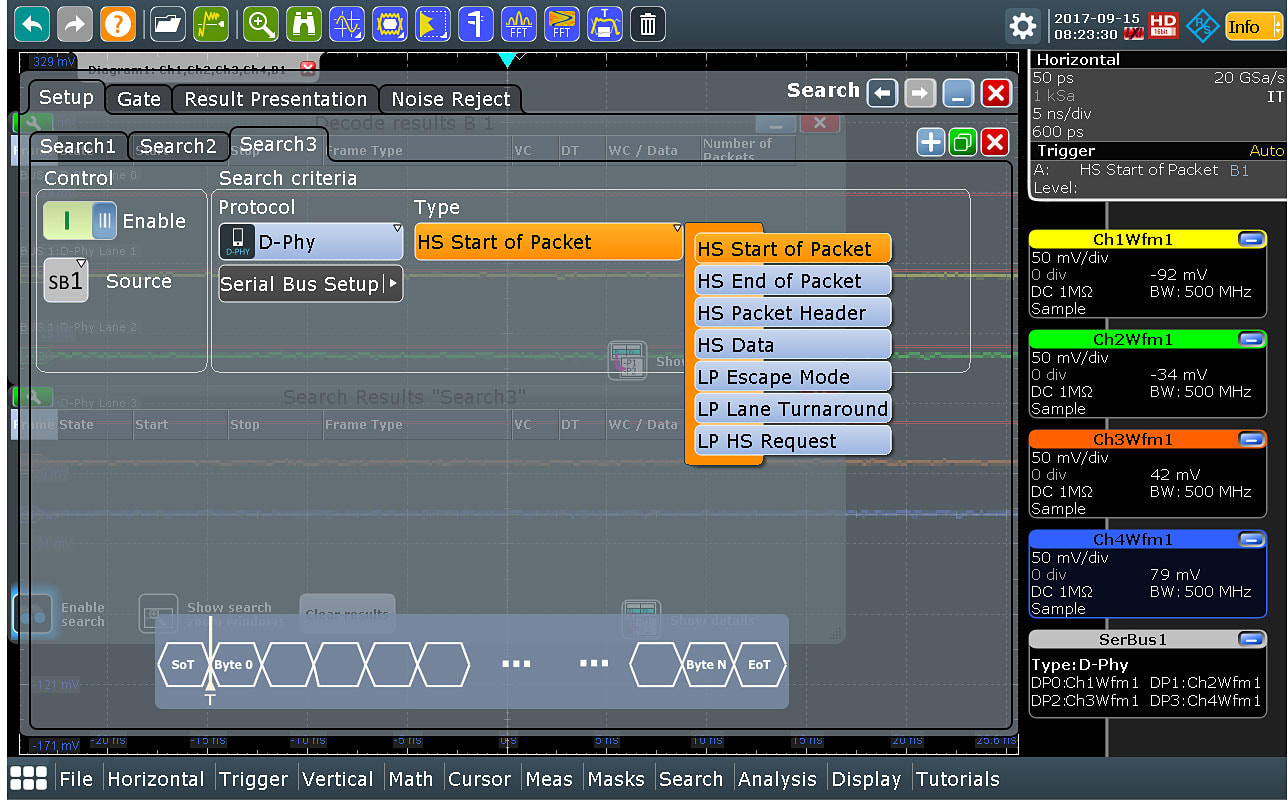

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
