• Catalog number 1329.7519.02
• For use with RTO2000 series oscilloscopes
• Serial standard MIPI RFFE
• Includes decode table, trigger, label support, search
• Glitch rejection for receivers as allowed by the standard

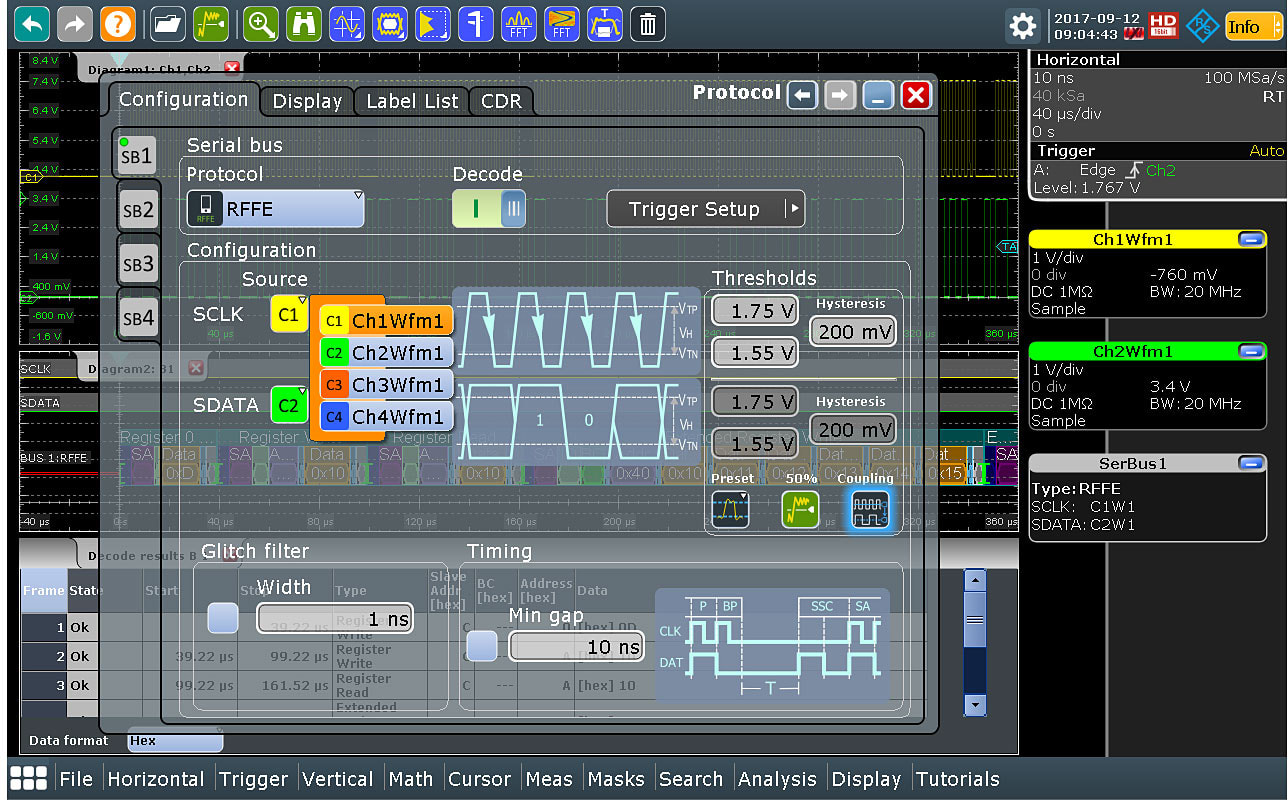

Bus setup in seconds from the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

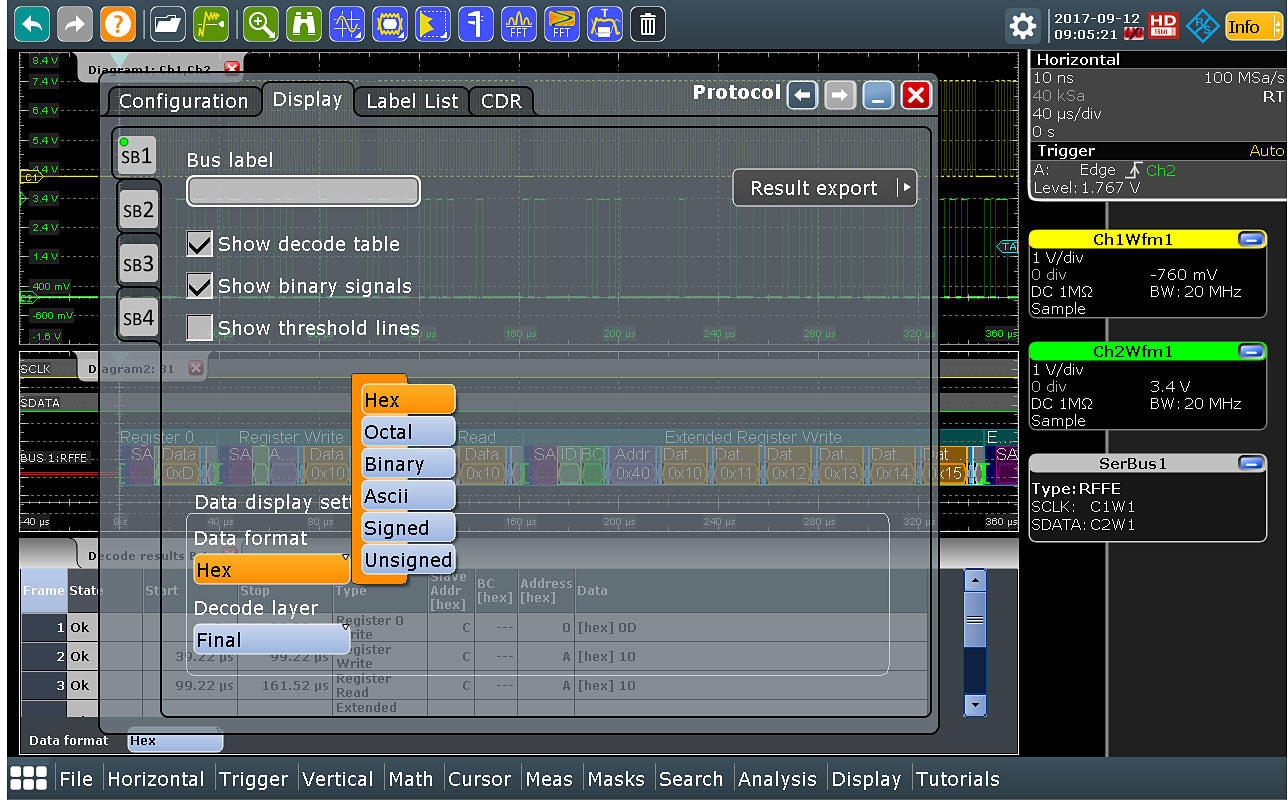

Protocol display as color-coded bus signals and in decode table

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The protocol details can also be displayed in a concise table. Select the data format and decode layer that best fits your analysis needs.

Trigger on start, stop, label and data and various error conditions.

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

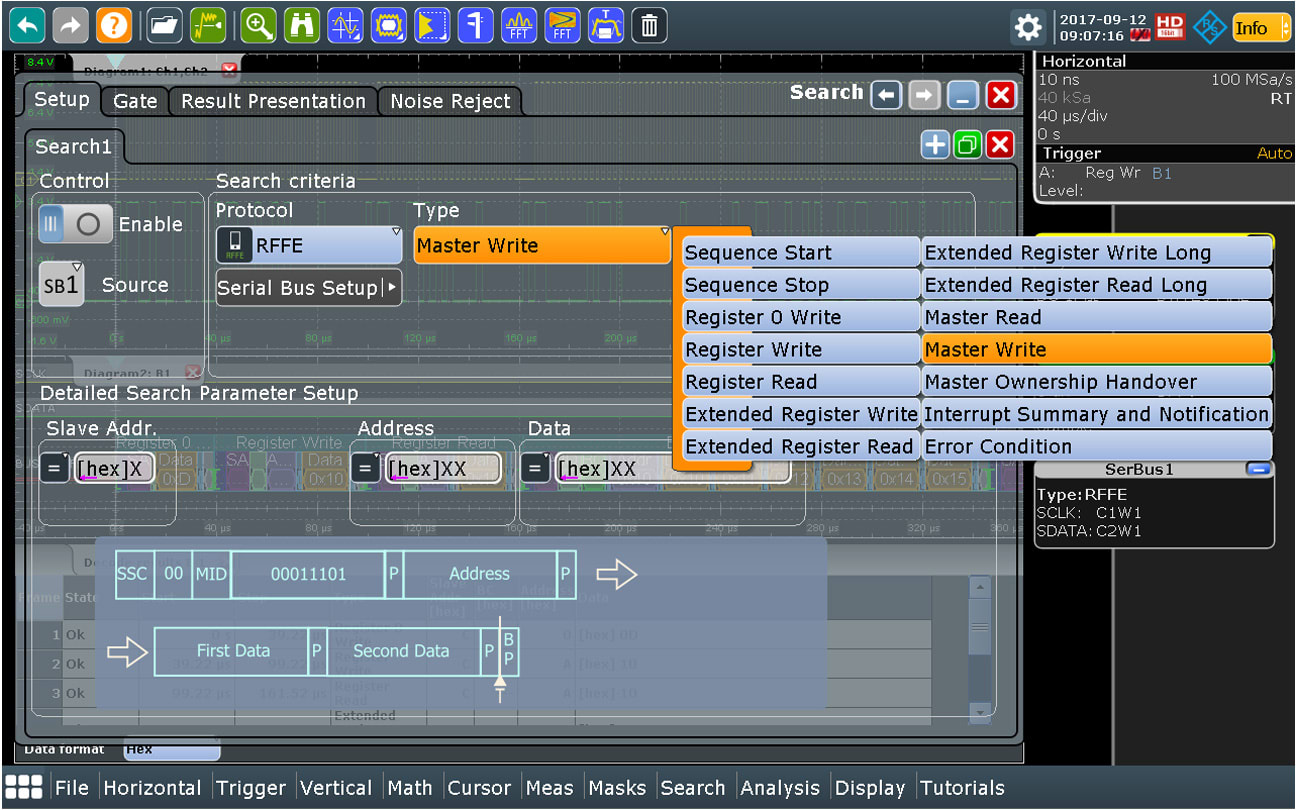

Search and navigate in recorded acquisitions

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
