Rohde and Schwarz RTO-K4 - FlexRay Triggering and Decoding (Catalog 1329.7290.02)

Name: Rohde and Schwarz RTO-K4 - FlexRay Triggering and Decoding (Catalog 1329.7290.02)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTO-K4
Price: 2755.00 USD
Availability: InStock

0 reviews | Catalog: 1329.7290.02 | Model: Rohde & Schwarz RTO-K4

Rohde & Schwarz RTO-K4 - FlexRay Triggering and Decoding (Catalog 1329.7290.02)

Compare

FLEXRAY serial triggering and decoding incl. Fibex-file Import (for models 1329.7002.xx) (software license)

Catalog number 1329.7290.02
For use with RTO2000 series oscilloscopes
Includes decode table, trigger, label support, search
Supports single-ended, differential and logic signals
Telegram display as color-coded bus signals and in decode table
Trigger on start of frame, identifier, data, symbol and various error conditions
Symbolic decoding for FlexRay buses, including industry standard FIBEX file support
Fastest FlexRay eye-diagram mask testing with standard mask test functionality

View Product Details

Your Price: $2,755.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-K4 - FlexRay Triggering and Decoding (Catalog 1329.7290.02)

Catalog number 1329.7290.02
For use with RTO2000 series oscilloscopes
Includes decode table, trigger, label support, search
Supports single-ended, differential and logic signals
Telegram display as color-coded bus signals and in decode table

R&S RTO oscilloscopes support triggering and decoding of FlexRay buses, including FIBEX standard file import. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified efficiently using the hardware-accelerated trigger. You can trigger on start of frame, identifier, data, symbol and various error conditions.

Bus setup in seconds with the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

Symbolic triggering and decoding based on FIBEX files is supported

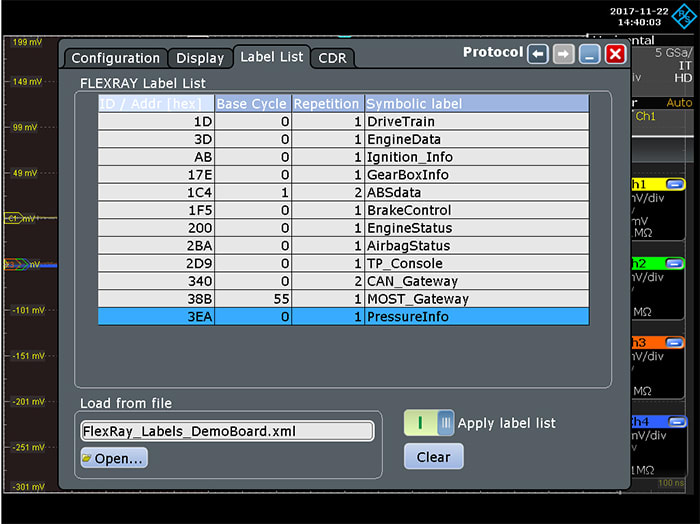

You can analyze the decoded bus with symbolic labels based on FIBEX file information. Just import the label file and you can start showing the bus frames as a symbol.

Telegram display as color-coded bus signals and in decode table

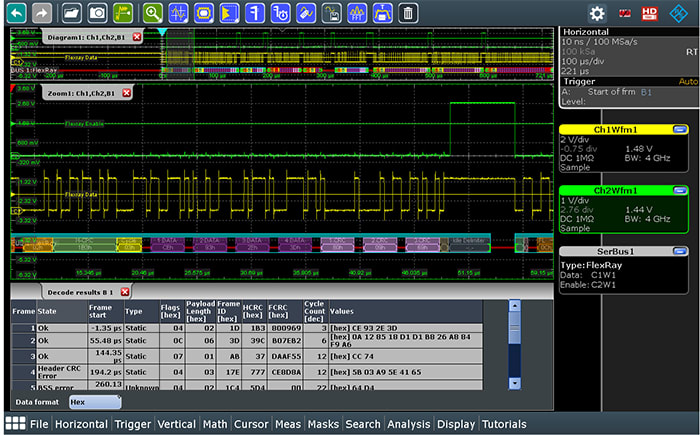

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The telegrams can also be displayed in a concise table.

Strong trigger capability on start of frame, identifier, data, symbol and various error conditions

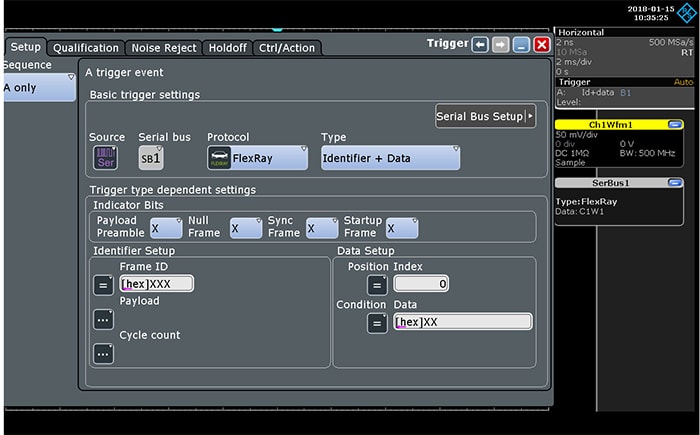

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

Powerful search and navigate capability

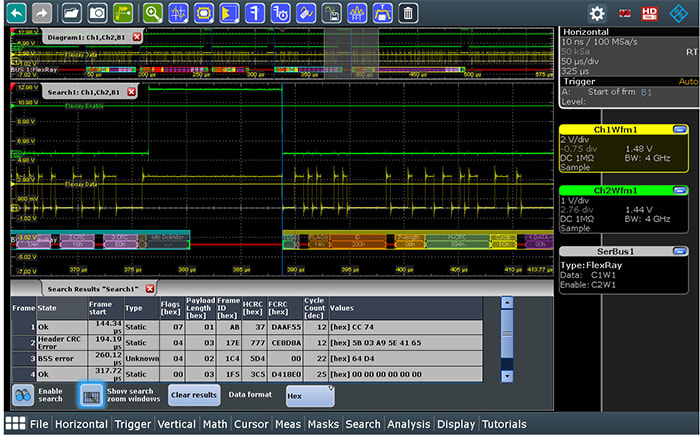

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
