0 reviews | Catalog: 1329.7502.02 | Model: Rohde & Schwarz RTO-K31
Power analysis (for models 1329.7002.xx) (software license)
Your Price: $3,065.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The R&S RTx-K31 software option provides essential measurement functions for analyzing power electronics, including inrush current, output spectrum and safe operating area. A measurement wizard with detailed instructions guides the user through the test setup. The oscilloscope configures itself automatically and delivers quick results.

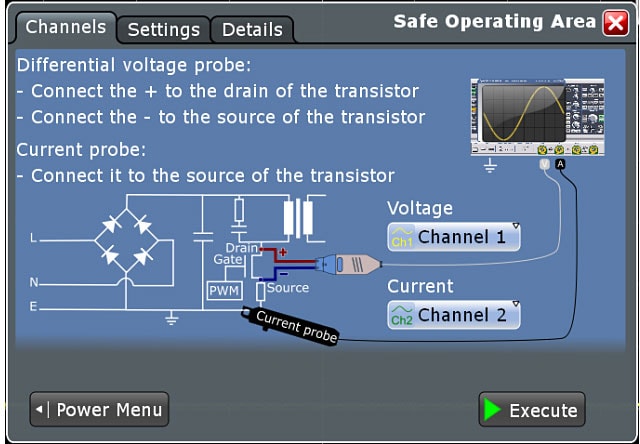

After you select a measurement function, the measurement wizard guides you through the test setup. Detailed illustrations help you make the correct connections. The oscilloscope then configures itself automatically and delivers quick results. You can modify the configuration or completely manually configure the oscilloscope in order to document specific signal details.
Different standards for limiting the harmonic current must be met when developing switched-mode power supplies.The R&S RTO-K31 option helps you test in line with all common standards: EN 61000-3-2 classes A,B,C,D, MIL-STD-1399 and RTCA DO-160.

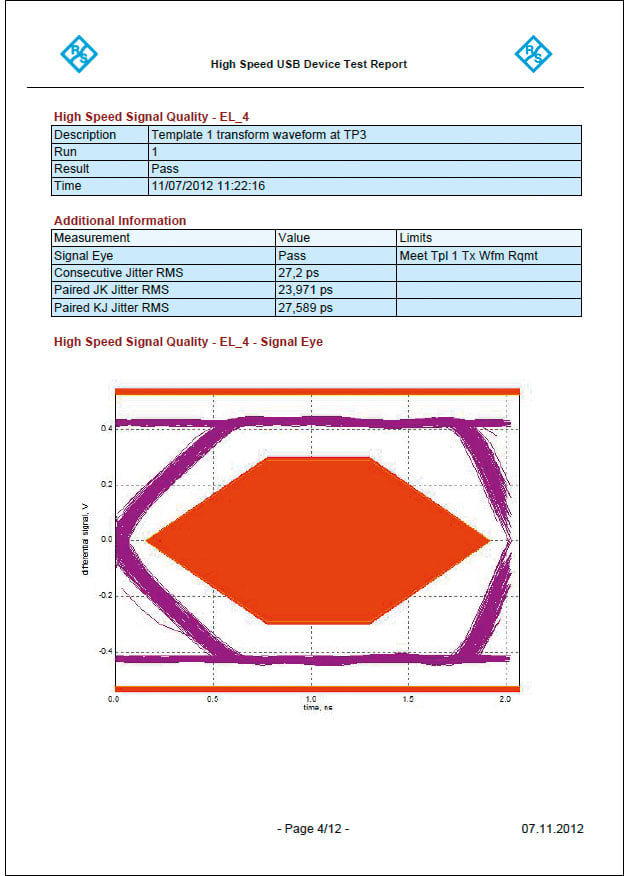

Add each result to the test report by simply pressing a button. The test report documents the setup and configuration. Define the level of detail in the report and customize the layout, for example by adding a company logo. The available output formats are PDF and RTF.
