• Catalog number 1329.7483.02
• For use with RTO2000 series oscilloscopes
• Test solution of BroadR-Reach Ethernet interfaces
• Predefined, automated test steps
• Step-by-step wizard for user guidance

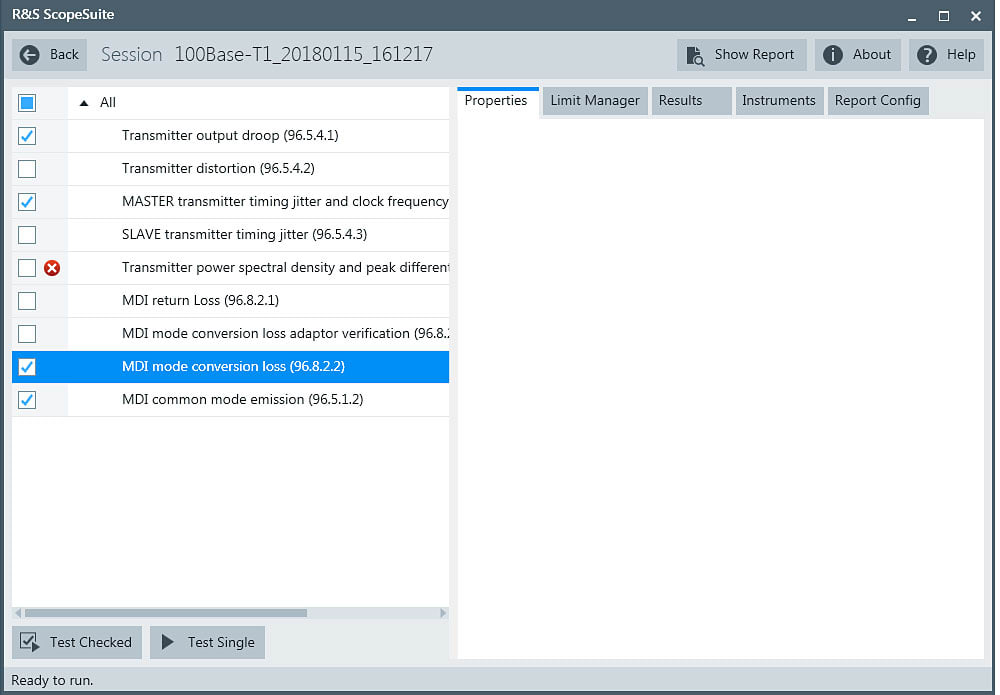

Meets OPEN TC8 and IEEE 802.3bw test specifications

The complete test solution covers all mandatory and optional test cases of the OPEN TC8 test specification for ECU compliance testing. The complete solution includes an oscilloscope and a vector network analyzer. For accurate probing, the RT-ZF8 test fixture meets OPEN TC8 fixture validation.

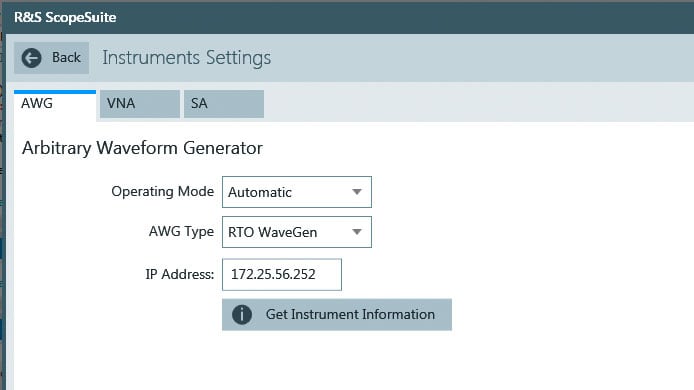

Fully automatic or manual tests

The R&S ScopeSuite has a test wizard for guided steps. The tests used are fully automatic. In addition, single tests can be carried out for efficient debugging. The limit editor lets you individually adjust standard-specific test limits.

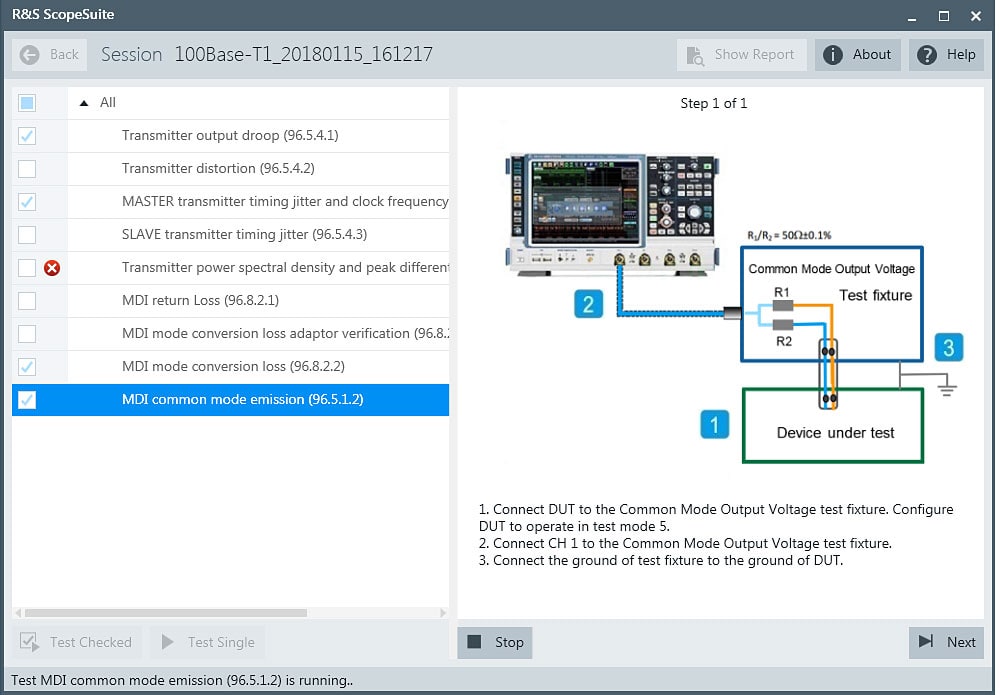

Ease-of-use with image-based guided test steps

The Ethernet compliance test is a fully guided test. Detailed, image-based instructions make it easy to correctly connect the oscilloscope and the probes to the test fixture and the device under test. This increases the ease-of-use and reduces potential setup errors.

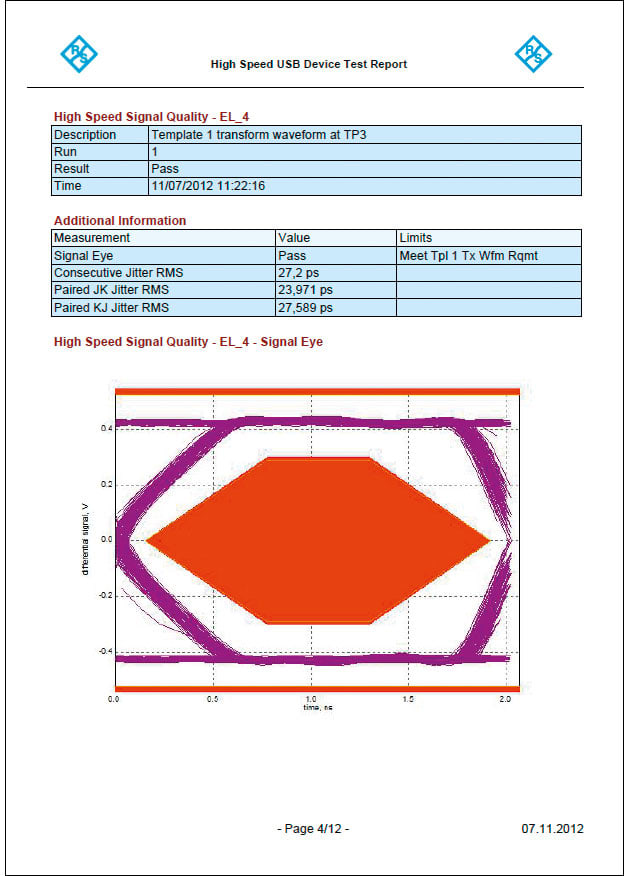

Clear and comprehensive reporting functionality

The test results are fully documented in a report created by the R&S ScopeSuite. Depending on the user’s preference, the test report can include numerical result data or oscilloscope screen shots. The available output formats are PDF, DOC and HTML.

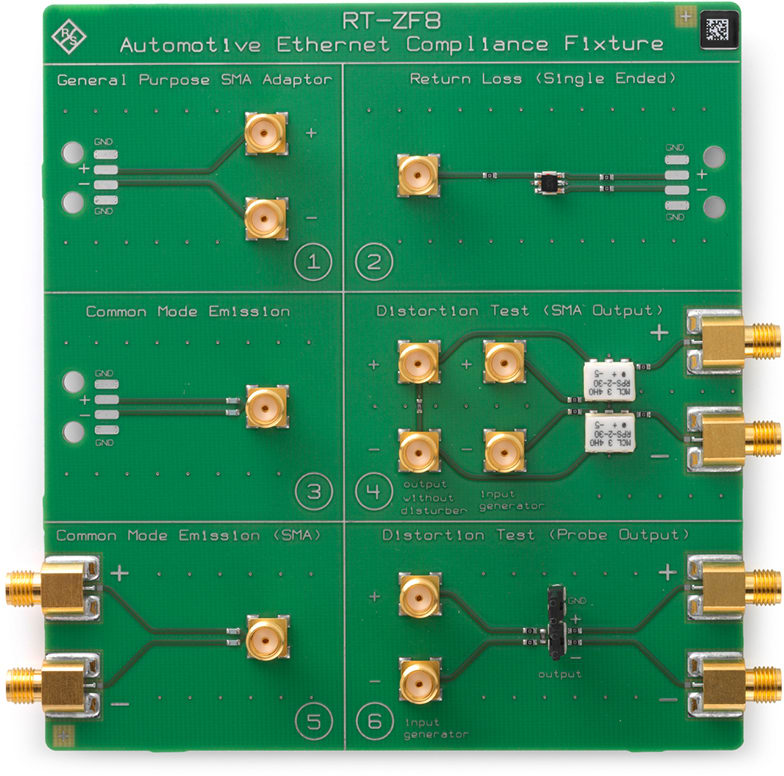

Test solution includes oscilloscope, VNA, Waveform generator and test fixtures

The compliance test setup includes test cases that need a waveform generator and a network analyzer. R&S offers a complete solution with the R&S RTO-B6 waveform generator and the R&S ZND Vector Network Analyzer. The R&S ScopeSuite compliance test software fully supports all instruments for a fully integrated compliance test solution.
