0 reviews | Catalog: 1329.7483.02 | Model: Rohde & Schwarz RTO-K24
Ethernet Compliance Test Software for BroadR-Reach Ethernet (for models 1329.7002.xx) (software license)
Your Price: $3,300.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.

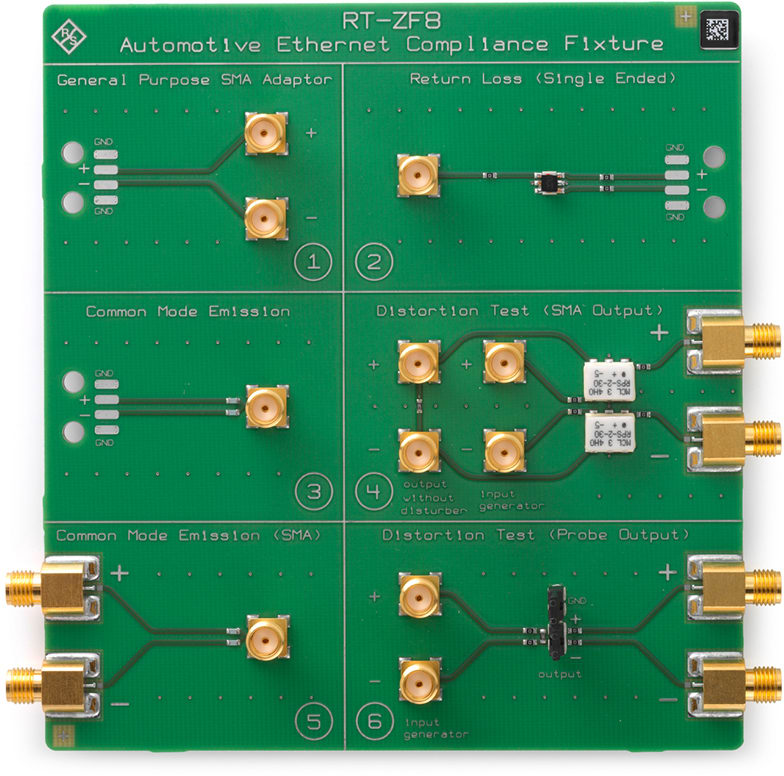

The R&S RTP-K24 and R&S RTO-K24 option offers an automated compliance test solution for 100BASE-T1 or BroadR-Reach Ethernet according to OPEN Alliance TC8 and IEEE 802.3bw compliance test specification. The test wizard guides the user via illustrated step-by-step instructions. Automatic test sequences allow for a fast test run. A configurable test report documents the test results. The complete Ethernet compliance test solution includes the R&S RT-ZF8 Test Fixture.

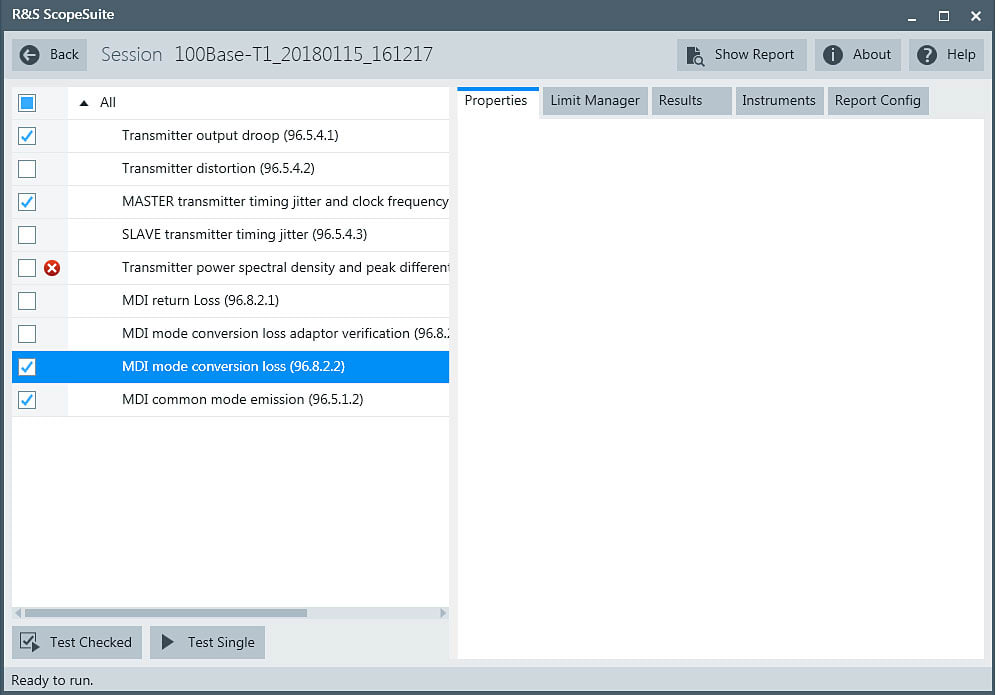

Meets OPEN TC8 and IEEE 802.3bw test specifications The complete test solution covers all mandatory and optional test cases of the OPEN TC8 test specification for ECU compliance testing. The complete solution includes an oscilloscope and a vector network analyzer. For accurate probing, the RT-ZF8 test fixture meets OPEN TC8 fixture validation.

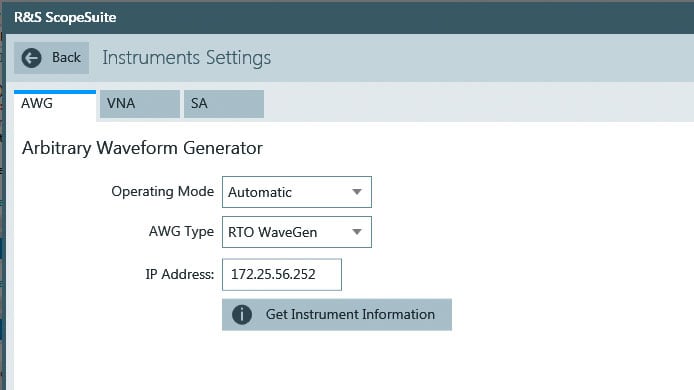

The R&S ScopeSuite has a test wizard for guided steps. The tests used are fully automatic. In addition, single tests can be carried out for efficient debugging. The limit editor lets you individually adjust standard-specific test limits.

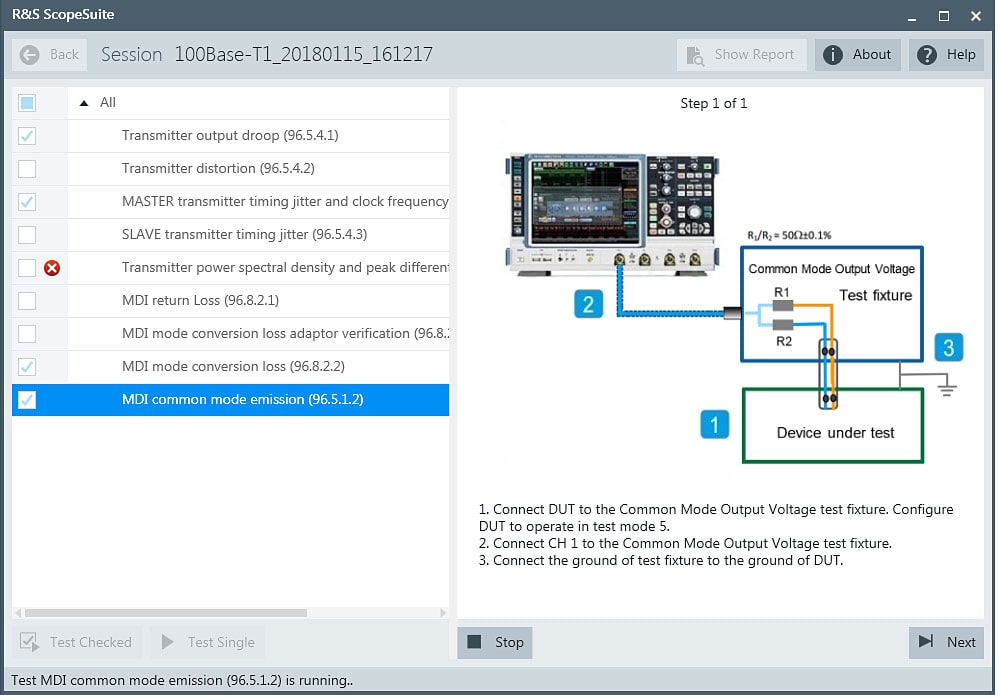

Ease-of-use with image-based guided test steps The Ethernet compliance test is a fully guided test. Detailed, image-based instructions make it easy to correctly connect the oscilloscope and the probes to the test fixture and the device under test. This increases the ease-of-use and reduces potential setup errors.

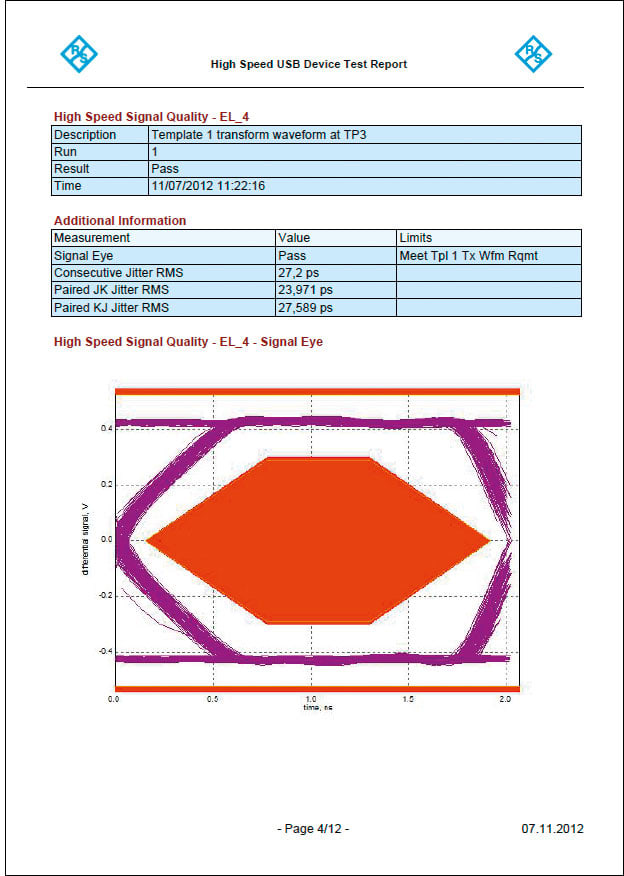

Clear and comprehensive reporting functionality The test results are fully documented in a report created by the R&S ScopeSuite. Depending on the user’s preference, the test report can include numerical result data or oscilloscope screen shots. The available output formats are PDF, DOC and HTML.
Test solution includes oscilloscope, VNA, Waveform generator and test fixtures The compliance test setup includes test cases that need a waveform generator and a network analyzer. R&S offers a complete solution with the R&S RTO-B6 waveform generator and the R&S ZND Vector Network Analyzer. The R&S ScopeSuite compliance test software fully supports all instruments for a fully integrated compliance test solution.
