0 reviews | Catalog: 1329.7477.02 | Model: Rohde & Schwarz RTO-K23
Ethernet compliance test software for 2.5/5/10G-Base-T Ethernet, (for models 1329.7002.xx) (software license)
Your Price: $10,370.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.

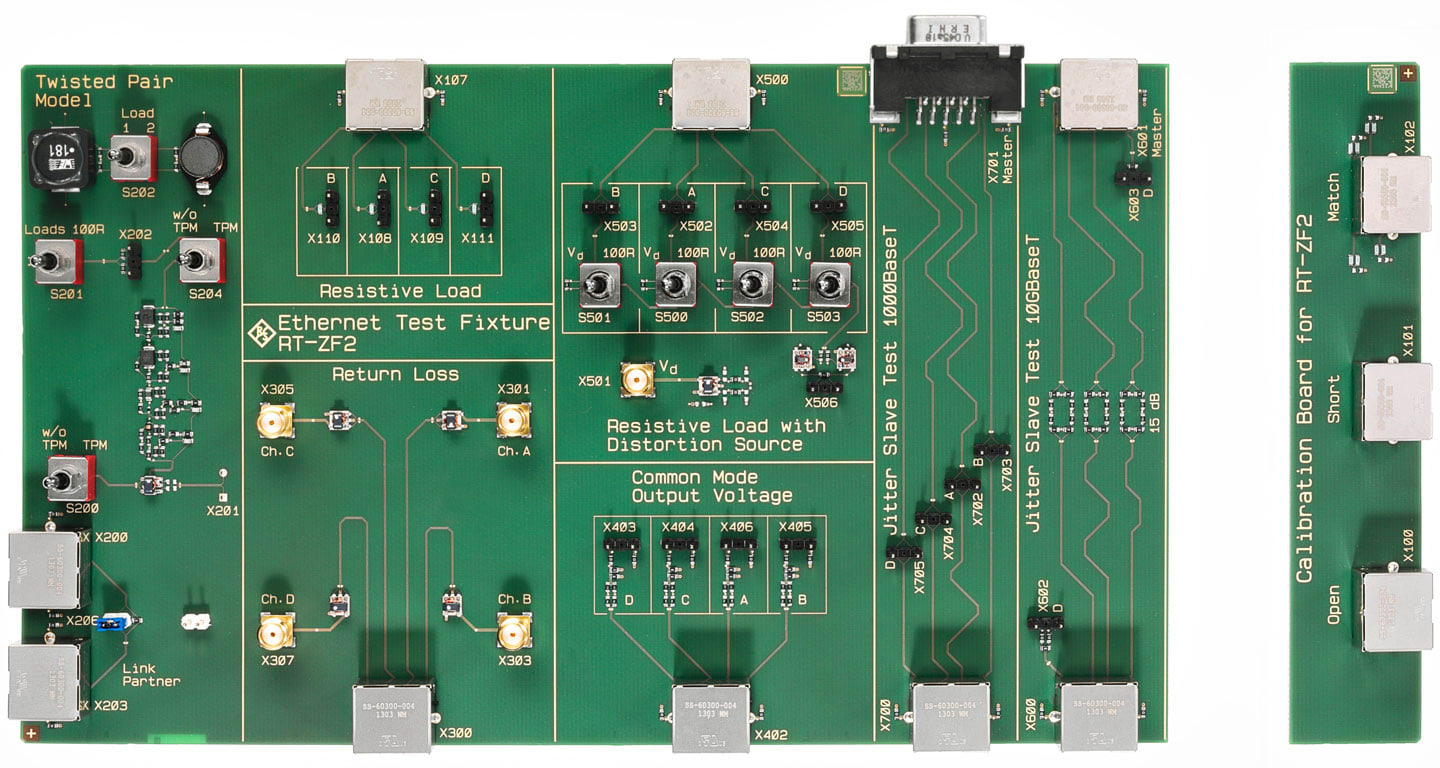

The R&S RTO-K23 option offers an automated test solution for 10GBASE-T Ethernet interfaces according to the IEEE test specification. The test wizard guides the user via illustrated step-by-step instructions. Automatic test sequences allow for a fast test run. A configurable test report documents the test results. The complete Ethernet compliance test solution includes the R&S RT-ZF2 Test Fixture.
The complete test solution covers all relevant test cases of the IEEE test specification for 10GBASE-T Ethernet interfaces. A test fixture guarantees accurate signal probing via differential probes and completes the scope of the test solution.
Select PCIe compliance test form the start screen of the R&S ScopeSuite Automated Compliance Test software

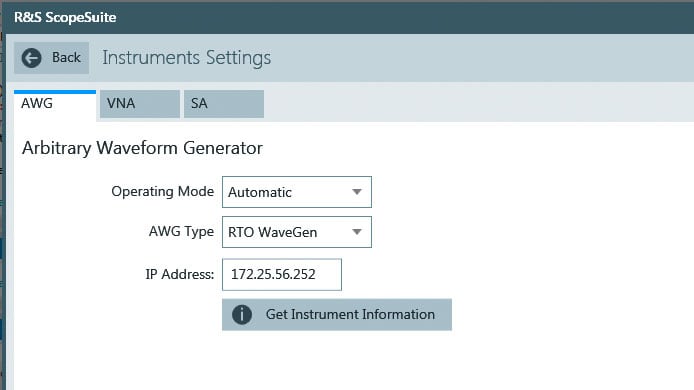

The R&S ScopeSuite has a test wizard for guided steps. The tests used are fully automatic. In addition, single tests can be carried out for efficient debugging. The limit editor lets you individually adjust standard-specific test limits.

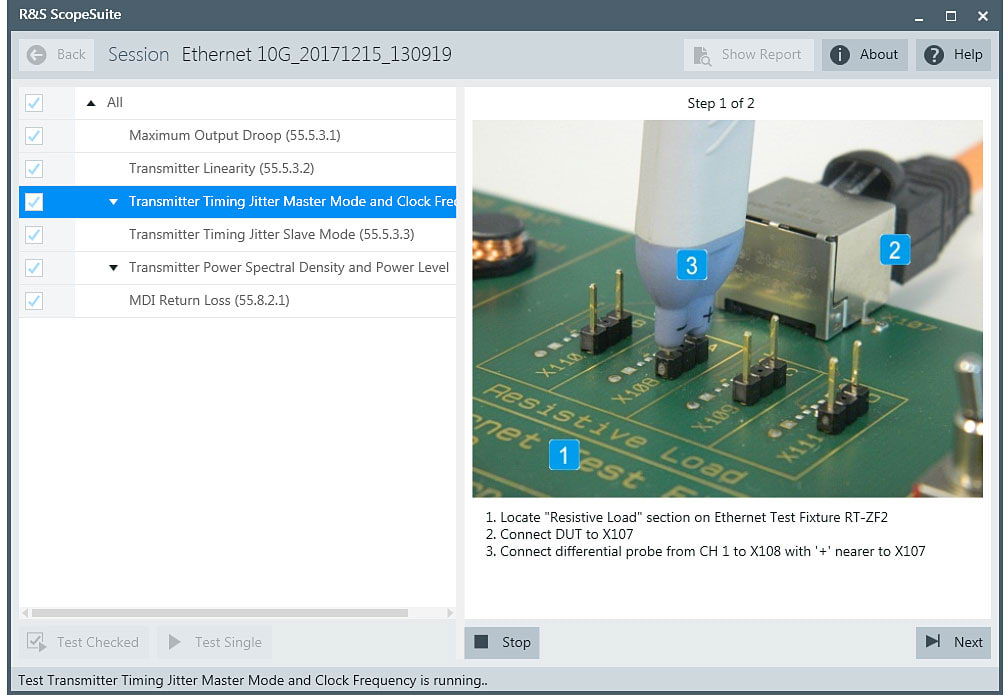

The Ethernet compliance test is a fully guided test. Detailed, image-based instructions make it easy to correctly connect the oscilloscope and the probes to the test fixture and the device under test. This increases the ease-of-use and reduces potential setup errors.

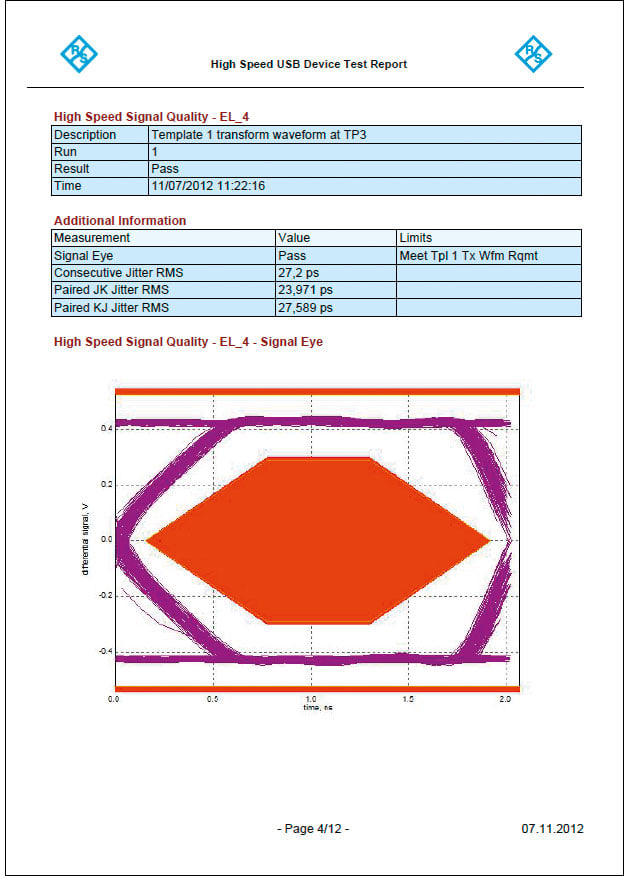

Detailed report including setup parameters, measurement results and screenshots
The test results are fully documented in a report created by the R&S ScopeSuite. Depending on the user’s preference, the test report can include numerical result data or oscilloscope screen shots. The available output formats are PDF, DOC and HTML.
The compliance test setup includes test cases that need a waveform generator and a network analyzer. R&S offers a complete solution with the R&S RTO-B6 waveform generator and the R&S ZND Vector Network Analyzer. The R&S ScopeSuite compliance test software fully supports all instruments for a fully integrated compliance test solution.
