0 reviews | Catalog: 1326.3087.02 | Model: Rohde & Schwarz RTO-K130
Time domain reflection and transmission analysis option (TDR/TDT) for the R and S RTP oscilloscope with the RTO-B7 pulse source (for RTO2000, 1329.7002.xx). (software license)
Your Price: $6,515.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The R&S RTO/RTP-K130 option combines the R&S RTO/RTP-B7 pulse source and the analog input channels of the R&S RTO or RTP oscilloscope to create a time domain reflection (TDR) and transmission (TDT) analysis system that supports the characterization and debugging of signal paths, including PCB traces, cables and connectors. The option allows both single-ended and differential measurements.
The R&S RTO/RTP-B7 pulse source provides a highly symmetrical differential pulse signal with a steep rise time of 22 ps. This enables either single-ended or differential time domain reflection (TDR) and / or transmission (TDT) analysis with the R&S RTO or R&S RTP High-Performance oscilloscopes.

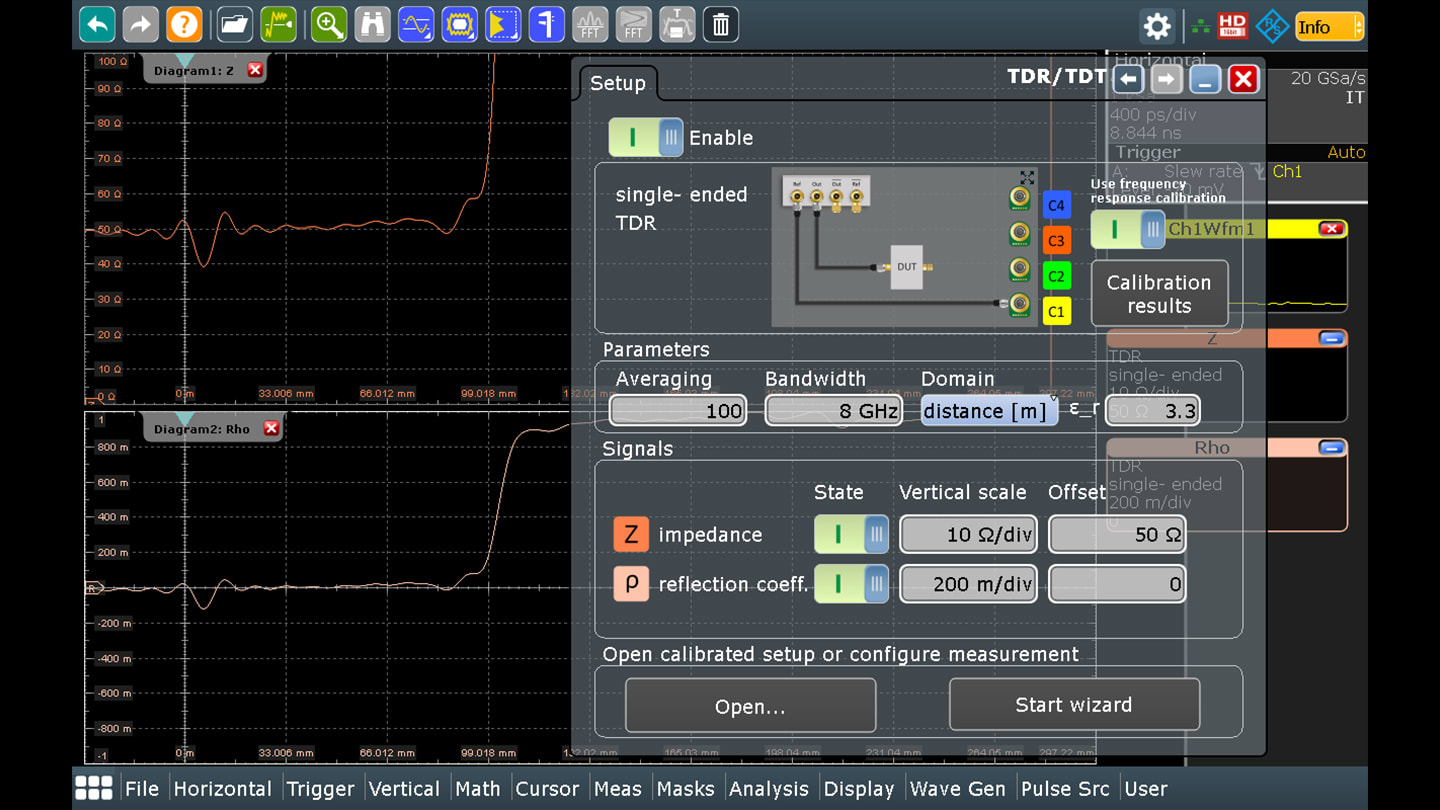

Setup dialog for the configuration of a single-ended TDR measurement. Display of the impedance and the reflection coefficient over distance.
Guided operation
The TDR/TDT wizard guides the user in an initial step through the calibration of the test setup, which depends on the selected measurement type (TDR, TDR/TDT, TDT) and configuration (single-ended or differential. In the next steps the wizard supports the user with meaningful illustrations through the test setup and parameter definition for the measurement.

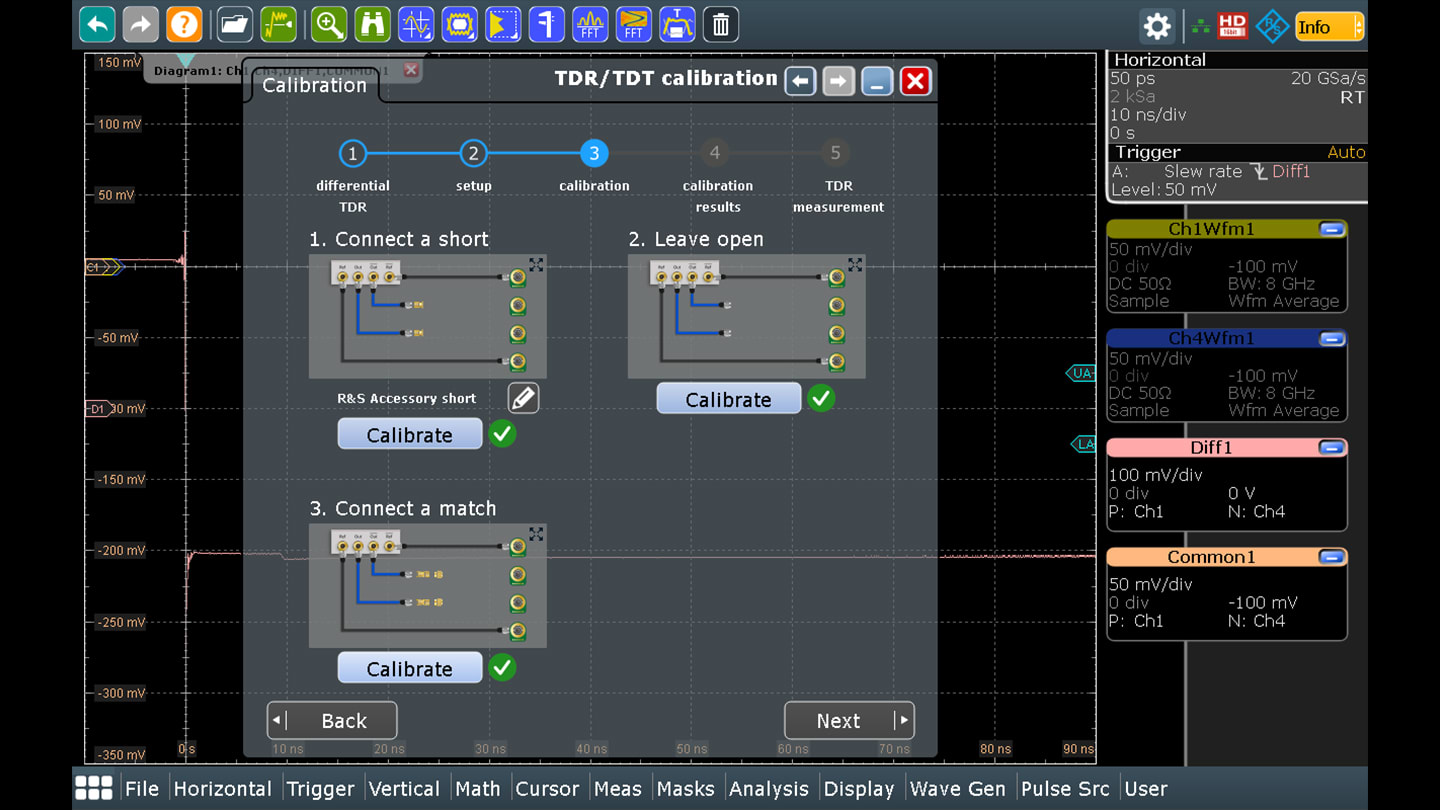

A wizard guides the user through the calibration of the TDR/TDT setup.
Fully integrated
The operation of the R&S RTP-K130 TDT/TDR analysis option and the R&S RTO/RTP-B7 pulse option are fully integrated in the oscilloscopes graphical user interface. The pulse option includes all accessories for calibration and measurement such as shorts, 50 Ohm terminations or cables. For differential measurements the low-loss and phase-matched cable pair R&S RT-Z17 is required.
