Rohde & Schwarz RTO-K1 - I2C/SPI triggering and decoding (Catalog 1329.7260.02)

Images (8)

Compare

I2C/SPI serial triggering and decoding (for models 1329.7002.xx) (software license)

Catalog number 1329.7260.02
I²C/SPI serial standard
includes decode table, trigger, I²C label support, and search
For use with the RTO2000 series oscilloscopes
Symbolic decoding for I²C addresses and data
Telegram display as color-coded bus signals and in decode table
Trigger on start, stop, address, data and various error conditions
Supports decoding of up to 4 serial buses from analog or digital channel signals
Fastest I²C and SPI eye-diagram mask testing with standard mask test functionality

View Product Details

Your Price: $2,665.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde and Schwarz RTO-K1 - I2C/SPI Triggering and Decoding (Catalog 1329.7260.02)

Catalog number 1329.7260.02
I²C/SPI serial standard
includes decode table, trigger, I²C label support, and search
For use with the RTO2000 series oscilloscopes
Symbolic decoding for I²C addresses and data

All Rohde & Schwarz oscilloscopes support triggering and decoding of I²C, of 2-wire, 3-wire and 4-wire SPI buses. You can setup decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified efficiently and reliably using the hardware-accelerated trigger. You can trigger on start, stop, address, data and various error conditions.

Bus decoding selection with the app cockpit

Bus setup in seconds with the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

Decoded frames are color-coded

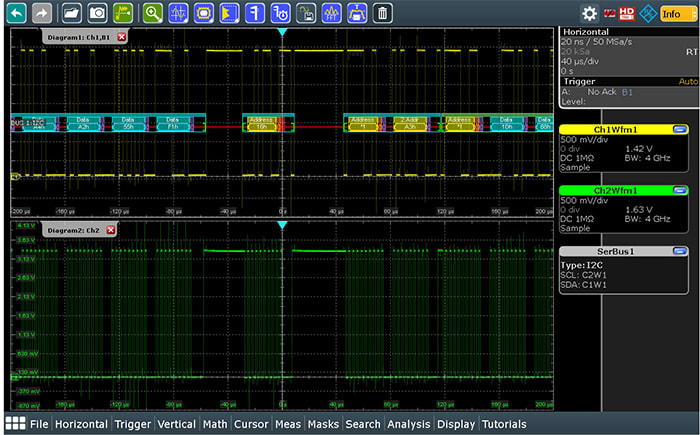

Telegram display as color-coded bus signals and in decode table

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The telegrams can also be displayed in a concise table.

Protocol trigger setup dialog

Strong trigger capability on start, stop, address, data and various error conditions

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results.

Powerful searching, even in long recordings

Powerful search and navigate capability

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
