| Specifications |
| Vertical system |
| Number of channels |
RTM3002; RTM3004 |
2; 4 |

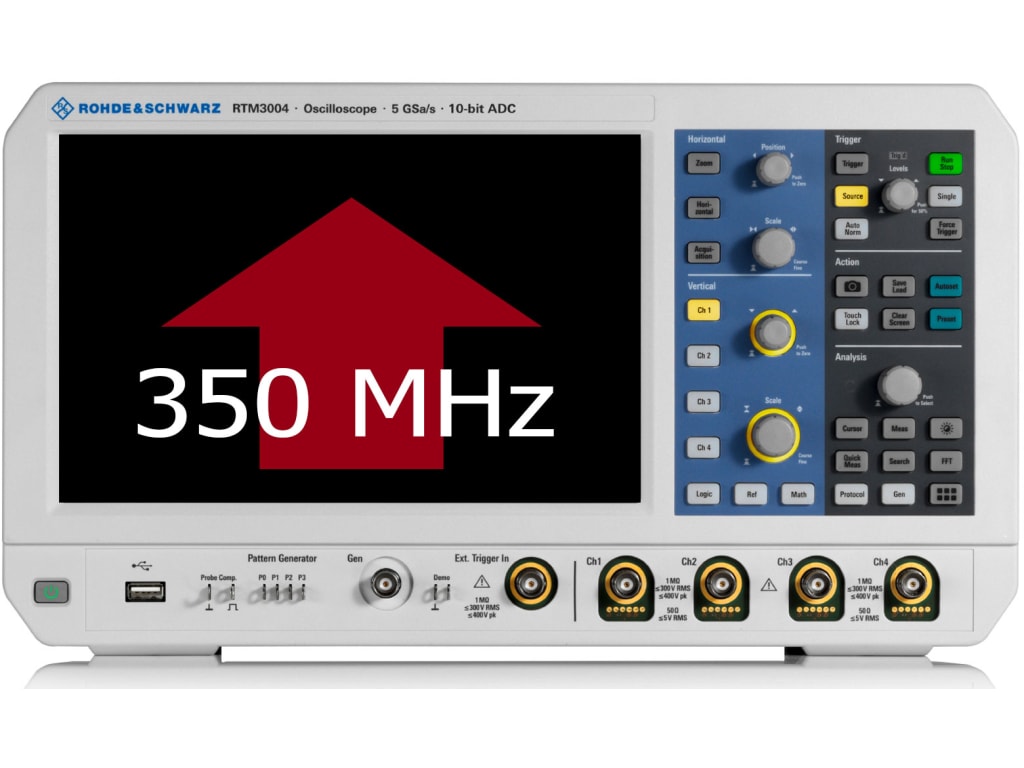

| Bandwidth (–3 dB) at 50 Ω |
RTM3002/3004 (with RTM-B2x2/-B2x3/-B2x5/-B2x10 options) |
100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz |
| Rise time (calculated) |
RTM3002/3004 (with RTM-B2x2/-B2x3/-B2x5/-B2x10 options) |
3.5 ns, 1.75 ns, 1 ns, 700 ps, 350 ps |
| Input impedance |
|
50 Ω ± 1.5% (meas.), 1 MΩ ± 1% (meas.) || 14 pF ± 1 pF (meas.) |
| Input sensitivity |
max. bandwidth in all ranges |
| |
at 1 MΩ |
500 µV/div to 10 V/div |
| |
at 50 Ω |
500 µV/div to 1 V/div |
| DC gain accuracy |
offset and position = 0, maximum operating temperature change of ±5°C after self-alignment |
| |
input sensitivity > 5 mV/div |
±1.5% of full scale |
| |
input sensitivity ≤ 5 mV/div |
±2% of full scale |
| ADC resolution |
|
10-bit, up to 16-bit with high resolution decimation |
| Acquisition system |
| Maximum realtime sampling rate |
|
2.5 Gsample/s; 5 Gsample/s, interleaved |
| Acquisition memory |
standard; with R&S®RTM-K15 option |
40 Msample (80 Msample interleaved); 400 Msample segmented memory |
| Horizontal system |
| Timebase range |
|
selectable between 0.5 ns/div and 500 s/div |
| Trigger system |
| Trigger types |
standard |
edge, width, video (PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p), pattern, line, serial bus, timeout |
| |
option |
I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN, ARINC429, MIL-STD-1553 |
| MSO option |
| Digital channels |
|
16 (2 logic probes) |
| Sampling rate |
|
1.25 Gsample/s |
| Acquisition memory |
standard; with R&S®RTM-K15 option |
40 Msample (80 Msample interleaved); 400 Msample segmented memory |
| Waveform generator |
| Resolution, sample rate |
|
14-bit, 250 Msample/s |
| Amplitude |
high Z; 50 Ω |
20 mV to 5 V (Vpp); 10 mV to 2.5 V (Vpp) |
| DC offset |
high Z; 50 Ω |
±5 V; ±2.5 V |
| Signal forms frequency ranges |
sine |
0.1 Hz to 25 MHz |
| |
pulse/rectangle |
0.1 Hz to 10 MHz |
| |
ramp/triangle |
0.1 Hz to 1 MHz |
| |
noise |
max. 25 MHz |
| Arbitrary |
sampling rate; memory depth |
max. 10 Msample/s; 32k points |
| General data |
| Screen |
|
10.1" WXGA TFT color display (1280 × 800 pixel) |
| Interfaces |
|
USB host with MTP, USB device, LAN, powerful web server for remote display and operation |
| Audible noise |
maximum sound pressure level at a distance of 1.0 m |
28.3 dB(A) |
| Dimensions |
W × H × D |
390 mm × 220 mm × 152 mm (15.4 in × 8.66 in × 5.98 in) |
| Weight |
|
3.3 kg (7.27 lb) |
