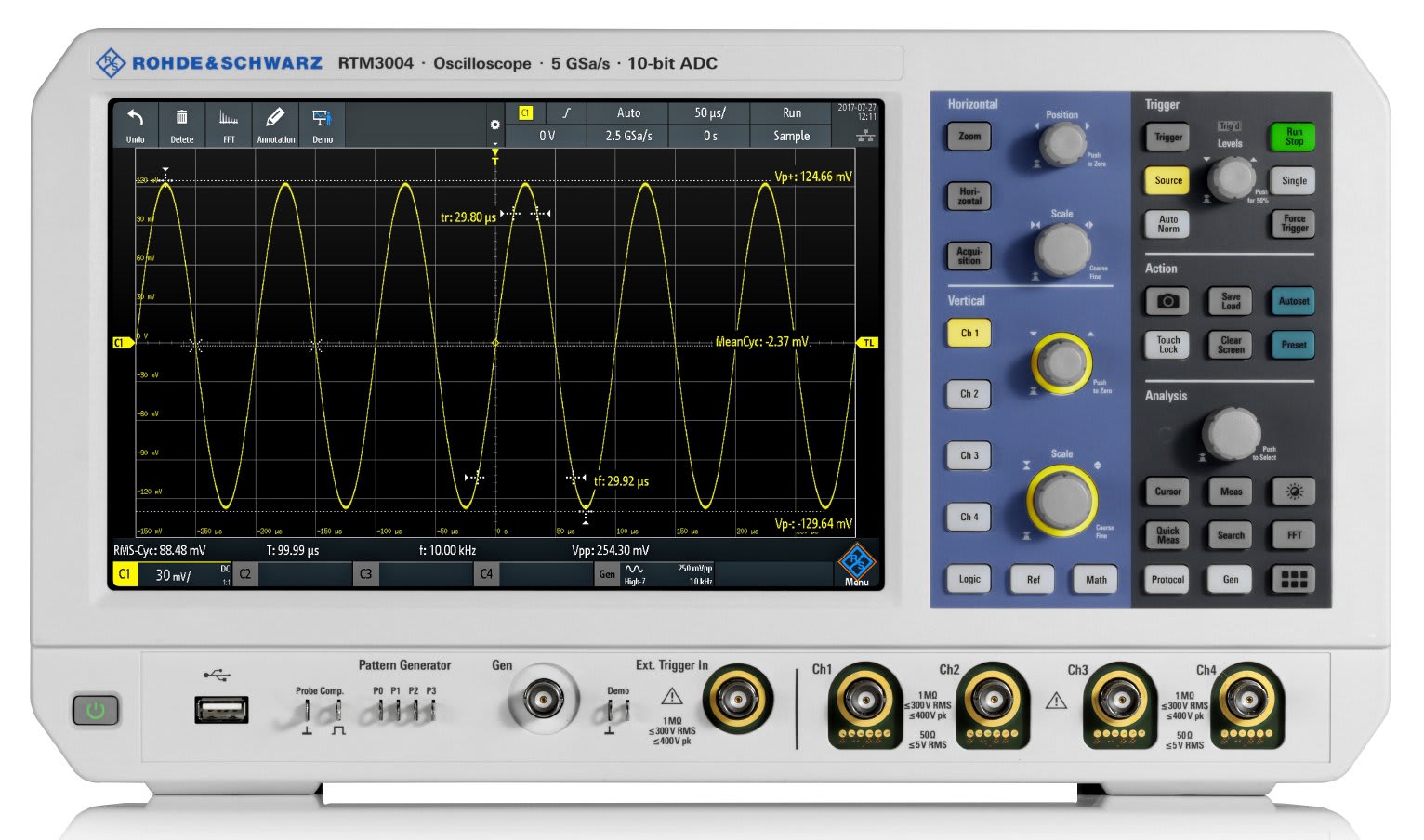

Designed as an everyday problem solving tool, the Rohde & Schwarz RTM3000 combines the power of ten (10-bit ADC, 10 times the memory and 10.1" touchscreen) with a Rohde & Schwarz probe interface for use with all Rohde & Schwarz probes.

The display, which is the largest capacitive display (10.1") with the highest resolution (1280 x 800 pixel) in its class, works just like your smartphone. Simply touch the screen to quickly navigate in pop-up menus and use gesturing to easily scale, zoom and move a waveform.

The 10-bit A/D converter yields up to a fourfold improvement over conventional 8-bit A/D converters. You get sharper waveforms with more signal details.

40 Msample memory depth is available on each channel if all channels are active. When interleaved, 80 Msample are available to capture longer signal sequences for more analysis results.

With the Rohde & Schwarz probe interface, all Rohde & Schwarz probing solutions can be used - for perfect connections to any DUT.

The R&S RTM3000 is more than just an oscilloscope. It offers a logic analyzer, protocol analyzer, waveform and pattern generator, digital voltmeter and dedicated operating modes for frequency analysis, mask tests and long data acquisitions. You can quickly and efficiently debug all kinds of electronic systems - and the R&S RTM3000 satisfies the all-important rule of investment protection at a very attractive price.


See small signal details in the presence of large signals

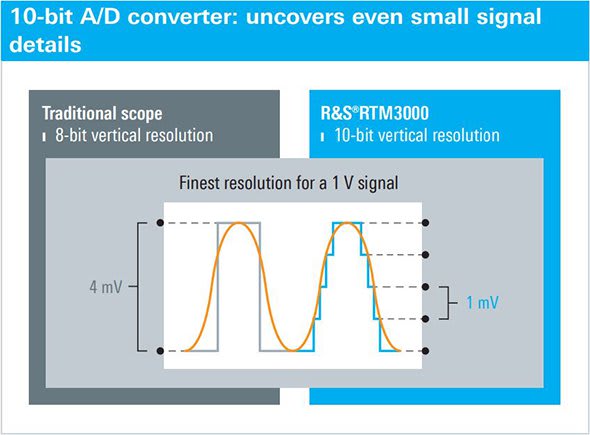

10-bit vertical resolution - 1024 levels, 4 times more than 8-bit ADC

The R&S RTM3000 features a customized Rohde & Schwarz designed 10-bit A/D converter that delivers a fourfold improvement over conventional 8-bit A/D converters.

The increased resolution results in sharper waveforms with more signal details that would otherwise be missed.

One example is the characterization of switched-mode power supplies. The voltages across the switching device must be determined during the on/off times within the same acquisition. For precise measurements of small voltage components, a high resolution of more than 8-bit is essential.

500 μV/div: full measurement bandwidth and low noise

The R&S RTM3000 oscilloscope offers outstanding sensitivity down to 500 μV/div. Traditional oscilloscopes can only reach this level of input sensitivity by employing software-based magnification or by limiting the bandwidth. The R&S RTM3000 oscilloscope shows the signal's real sampling points over the full measurement bandwidth - even at 500 μV/div. This ensures high measurement accuracy.

The accuracy of the signal displayed on the screen depends on the oscilloscope's inherent noise. The R&S RTM3000 oscilloscope precisely measures even at the smallest vertical resolution by using low-noise front ends and state-of-the-art A/D converters.


Capture more at full bandwidth

40 Msample standard and 80 Msample interleaved

The R&S RTM3000 offers a class-leading memory depth: 40 Msample per channel, and even 80 Msample in interleaved mode. This is eight times more than similar oscilloscopes in the same instrument class. It captures longer acquisition sequences even at high sampling rates for more analysis results, e.g. when analyzing transients of switched-mode power supplies.

Segmented memory: 400 Msample with history function

The R&S RTM-K15 option with deep, segmented memory analyzes signal sequences over a long observation period. For example, protocol-based signals with communications gaps, such as I2C and SPI, can be captured over several seconds or minutes. Thanks to the variable segment
size from 10 ksample to 80 Msample, the 400 Msample memory is optimally utilized; more than 26000 cohesive individual recordings are possible.

In history mode, previous acquisitions to the maximum segmented memory depth of 400 Msample are available for further analysis. Functions such as mask tests, QuickMeas and FFT can be used for further analysis.

With a sampling rate of up to 5 Gsample/s and a memory depth of up to 80 Msample, the R&S RTM3000 oscilloscopes really excel here. They accurately display signals over long sequences - right down to the details.


X-in-1 Oscilloscope

The Rohde & Schwarz is an X-in-1 oscilloscope, capable of many different tasks. Powerful software enables users to quickly and efficiently debug all kinds of electronic systems. Please note, some software packages are optional items.
