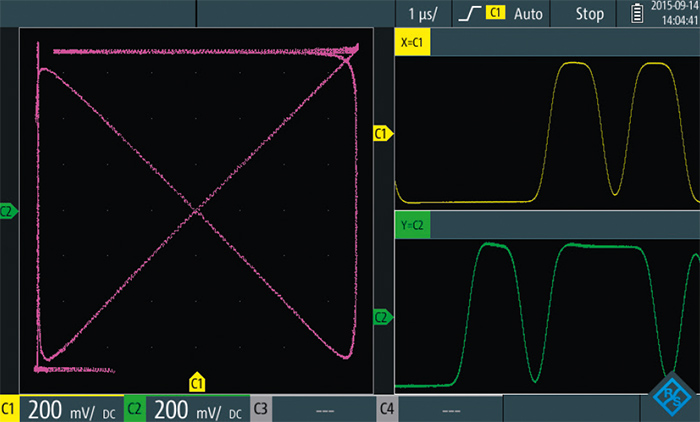

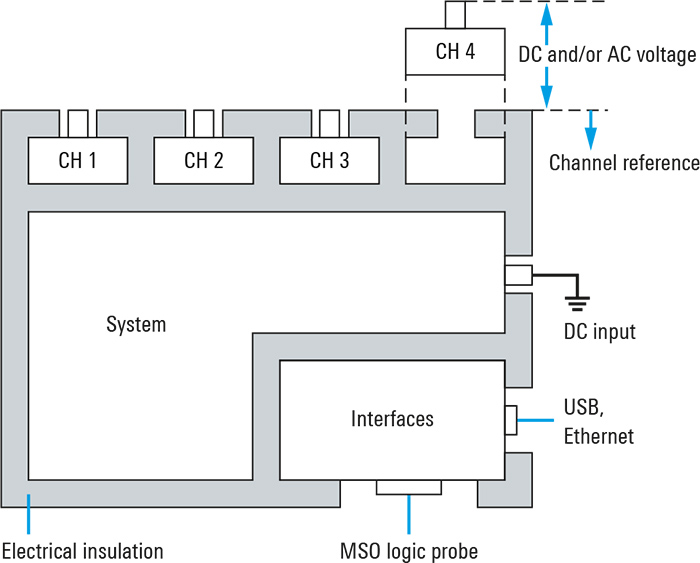

| Input channels |
2-channel models |
2 oscilloscope channels, 1 digital multimeter |
| |
4-channel models |
4 oscilloscope channels |

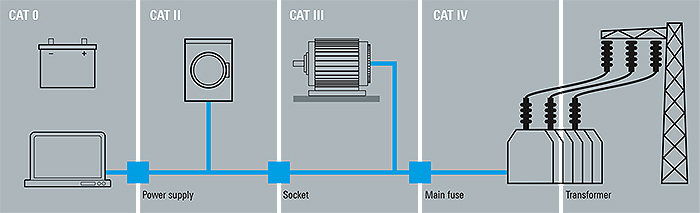

| Maximum input voltage |
BNC inputs |
CAT IV 300 V (RMS), 424 V (Vp) |
| |
with probe R&S®RT-ZI10 or R&S®RT-ZI11 |
CAT IV 600 V, CAT III 1000 V |
| Offset range |
|
+/-200 V |
| Acquisition and Horizontal System |
| Maximum realtime sampling rate |
1 / 2 / 4 channels active |
5 / 2.5 / 1.25 Gsample/s |
| Acquisition memory |
1 / 2 / 4 channels active |
500 / 250 / 125 ksample / channel |
| Realtime waveform acquisition rate |
max. |
50 000 waveforms/s |
| Timebase range |
|
1 ns/div to 500 s/div |

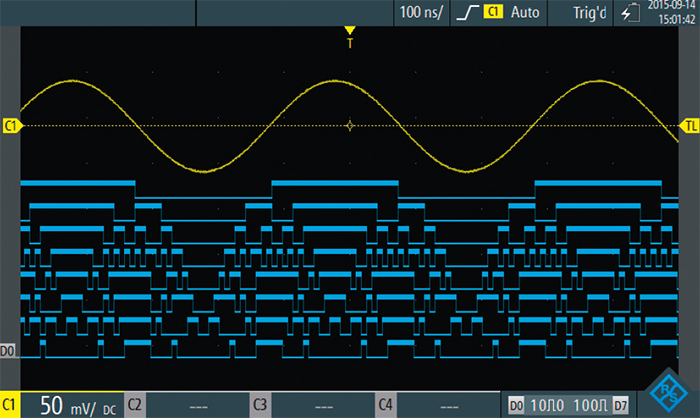

| Logic Analyzer (MSO) functionality (optional: R&S®RTH-B1) |
| Input channels / memory depth |
|
8 logic channels / 125 kSample |
| Bandwidth / sampling rate |
|
250 MHz / 1.25 GSample/s |
| Digital Trigger System |
| Trigger modes |
|
auto, normal, single |
| Trigger types |
Advanced trigger types optional (R&S®RTH-K19) |
14 trigger types |

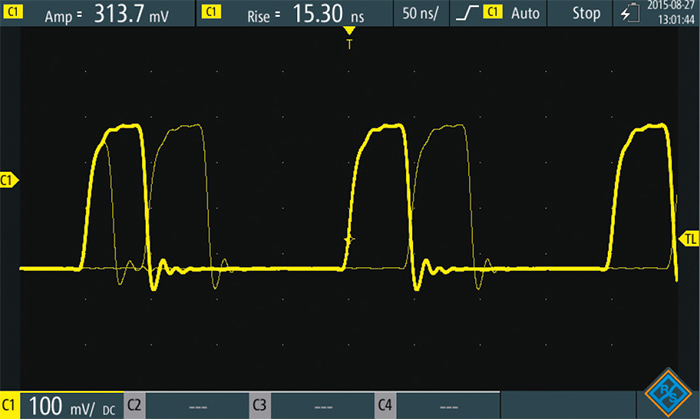

| Automatic oscilloscope measurements |
| Automatic measurements |
|
33 measurement functions |

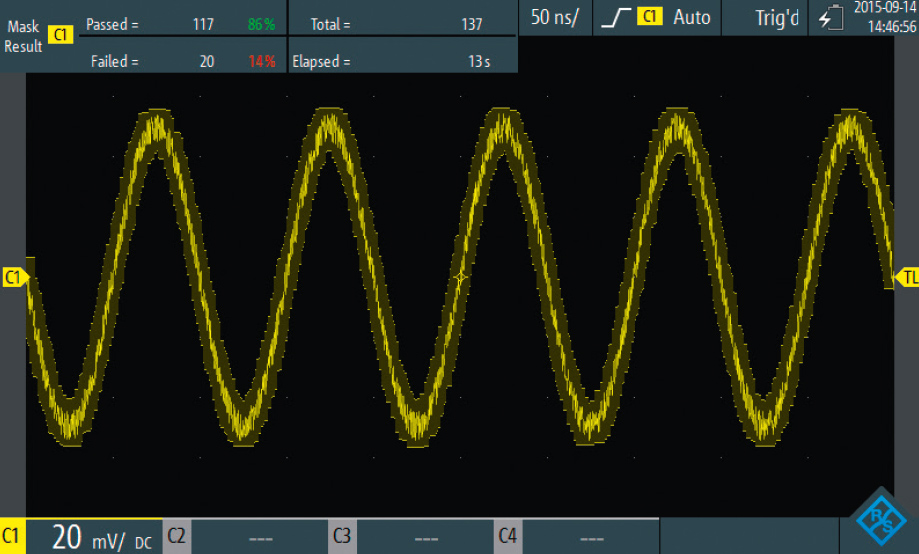

| Mask testing |
| Mask definition |
|
Tolerance tube |
| Actions on violation |
|
none, beep, stop |

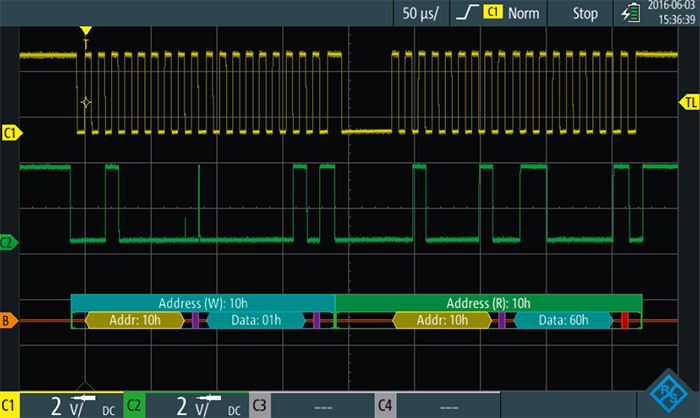

| Protocol Trigger & Decode |
| Supported Protocols |
(Optional: R&S®RTH-K1, R&S®RTH-K2) |
I2C, SPI, UART/RS-232/RS-422/RS-485 |

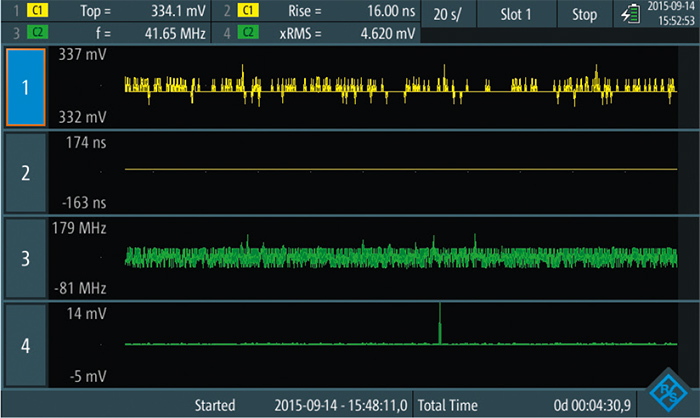

| Data logger |
| Number of simult. logging channels |
|
4 |
| Measurement speed |
|
1/2/5 measurements/s |
| Memory depth |
|
2 Msample per logging channel |

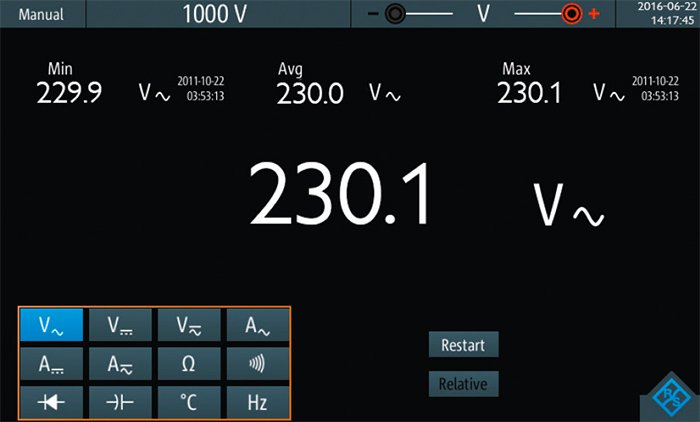

| Digital voltmeter / Digital Multimeter |
| Resolution |
2-channel version (Digital Multimeter) |
10 000 counts |
| |
4-channel version (Digital voltmeter) |
999 counts |
| Voltage and current |
Current with optional current probe or shunt |
DC, AC, AC+DC |
| Temperature |
|
With PT100 temperature sensor |
Resistance, continuity, diode test,
capacity, frequency |
|
Only 2-channel version |
| General data |
| Dimensions |
W x H x D |
201 mm x 293 mm x 74 mm
(7.91 in x 11.54 in x 2.91 in) |
| Weight |
with battery |
2.4 kg (5.3 lb) (nom.) |
| IP rating |
|
IP51, in line with IEC 60529 |
| Screen |
|
7.0" LC TFT 800 x 480 color display |
| Interfaces |
|
USB host, USB device, LAN, Wireless LAN (optional) |
