Superior Performance
- Lab Memory Promotion
- 60 MHz to 500 MHz with 5 Gsample/s sampling rate
- 50 000 waveforms per second
- 10-bit A/C converter
- 2 mV/div to 100 V/div
- Up to 200 V offset range
- 33 automatic measurement functions
5 Instruments in one Handheld Package
- Lab performance oscilloscope
- Logic analyzer
- Protocol analyzer
- Data logger
- Digital multimeter (1)
(1) Additional multimeter channel in two-channel model.
Capacitive Touch and Keypad Operation
- Full operation via touch panel or keypad
- See more with a 7" color display
- Easy parameter adjustment with multifunction wheel
- Large buttons for use with gloves
Outstanding Protection
- Maximum safety in all environments: CAT IV 600 V/CAT III 1000 V
- IP51 housing that meets military environmental requirements
- Nonslip and impact resistant rubberized surface
Excellent connectivity and much more
- Wireless LAN and Ethernet for web-based remote control and quick data access
- Finish faster with one-touch documentation
- MicroSD card and USB device/host support
- More than 4 hours of battery power

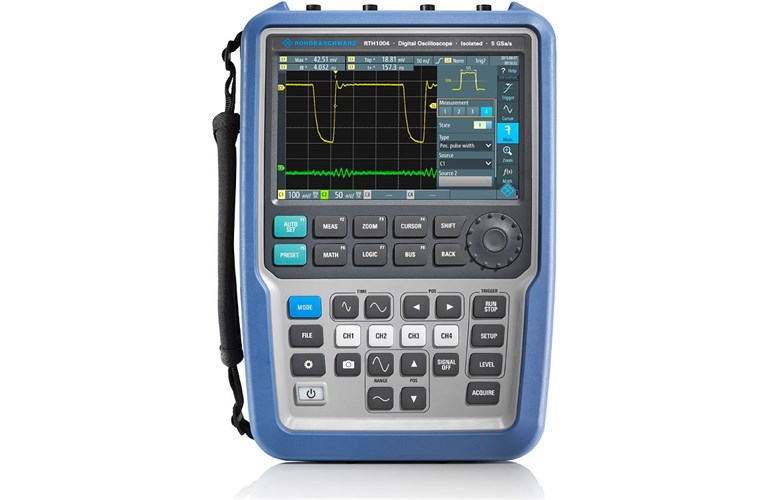

Superior Performance: A Lab Oscilloscope in a Handheld Package
Lab Oscilloscope Performance
When debugging embedded devices in the lab or analyzing complex problems in the field, the R&S®Scope Rider offers the performance and capabilities of a lab oscilloscope as well as the form factor and ruggedness of a battery-operated handheld device.
Small sensor signals can be analyzed with an excellent vertical sensitivity of 2 mV/div. Triggering on protocol events and decoding protocol data enables convenient debugging of digital control signals. A digital trigger system provides the best trigger sensitivity available in a handheld oscilloscope, and 14 trigger types give the flexibility required to capture exactly the right signal. With 33 automatic measurement functions, the R&S®Scope Rider delivers the capabilities of a lab oscilloscope when analyzing signal parameters.
Safe Measurements on Power Electronics
Analyzing modern electric drive systems requires measuring motor voltages and currents while analyzing digital control signals. Safety is a key consideration for such measurements.
The R&S®Scope Rider offers up to four isolated input channels with CAT IV 600 V rating that allow measurements on high-voltage electronics without compromising safety. Digital control signals can be analyzed with the 8-bit logic interface that is isolated from the analog input channels. The protocol trigger and decode capability of the R&S®Scope Rider is unprecedented in handheld oscilloscopes and provides direct display of decoded messages.

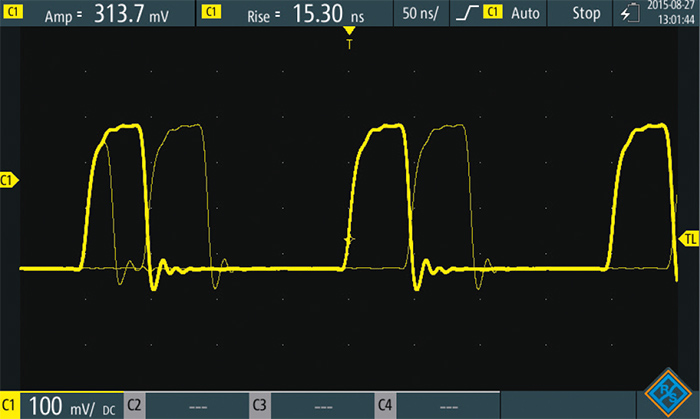

High-speed acquisition system with deep history: Never miss rare faults again
Capturing and analyzing rare anomalies in electric signals is a typical use case when debugging electronic systems. With an acquisition rate of up to 50 000 waveforms per second – more than 1000 times faster than conventional handheld oscilloscopes – the R&S®Scope Rider sees signals other scopes miss. Rare faults in signals can be reliably captured and analyzed.
In history mode, the instrument automatically stores up to 5000 waveforms in a separate history buffer. At any point in time, acquisition can be stopped and any waveform in the history buffer can be analyzed using the full oscilloscope functionality. One-time anomalies that would have been missed by a conventional handheld oscilloscope can now be analyzed in detail.
The high-speed acquisition system of the R&S Scope Rider captures up to
50 000 waveforms/s and uncovers rare and unexpected signal anomalies.
Debugging Power in your hand:
Five Instruments in One Portable Design
Oscilloscope, logic and protocol analyzer, data logger and digital multimeter: With the power of five instruments and dedicated operation modes for XY operation, roll mode and mask testing, the R&S®Scope Rider provides the capabilities and the flexibility needed for debugging all kinds of electronic systems.
|
|

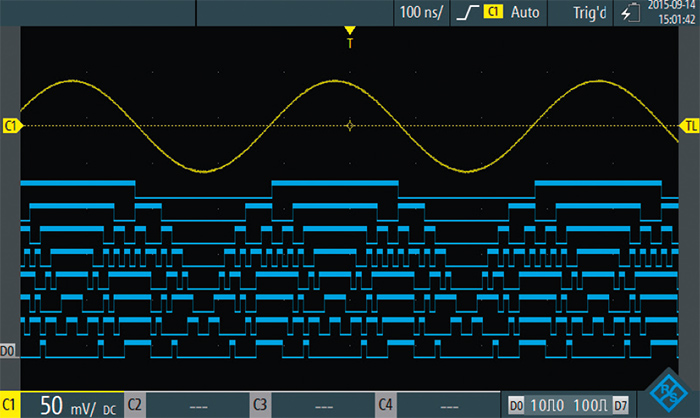

Logic Analyzer
Motor drive measurements often require up to four analog measurement channels with no channel free for monitoring digital control interfaces. The digital logic probe (MSO) of the R&S®Scope Rider features eight additional digital inputs for analyzing control signals, time-correlated to the analog channel signals. With 250 MHz bandwidth, 1.25 Gsample/s sampling rate and configurable thresholds, it adapts to almost any digital interface.
|
|
|

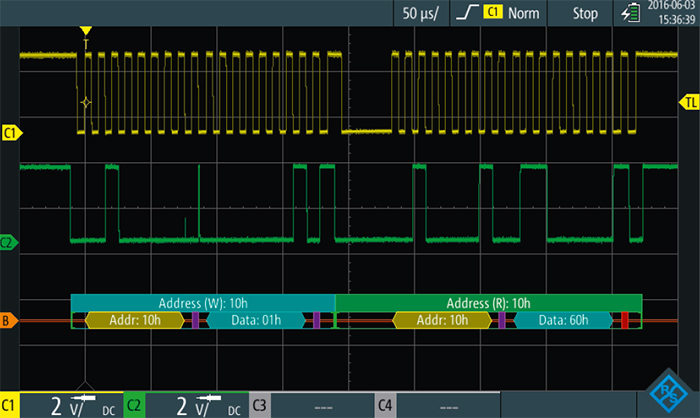

Protocol Analyzer
Protocols such as I 2 C, SPI or CAN/LIN are frequently used for transferring control messages between integrated circuits. The R&S®Scope Rider is the first isolated handheld digital oscilloscope with trigger and decode capability for in-depth troubleshooting. Triggering on protocol events or data enables selective acquisition of relevant events, data and signals.
|
|
|

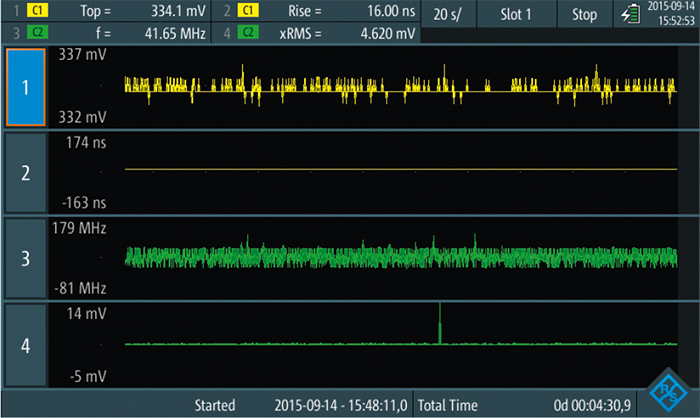

Data Logger
Sporadic sensor signal faults or rare glitches in a power supply can cause complex system failures without any obvious indication of the root cause. The long-term data logger of the R&S®Scope Rider makes it possible to monitor up to four key measurements at a speed of 1, 2 or 5 measurements per second to uncover such rare failures. The large memory of 2 Msample per channel allows more than 23 days of log duration. The statistics display provides information about minimum and maximum values with exact time.
|
|
|

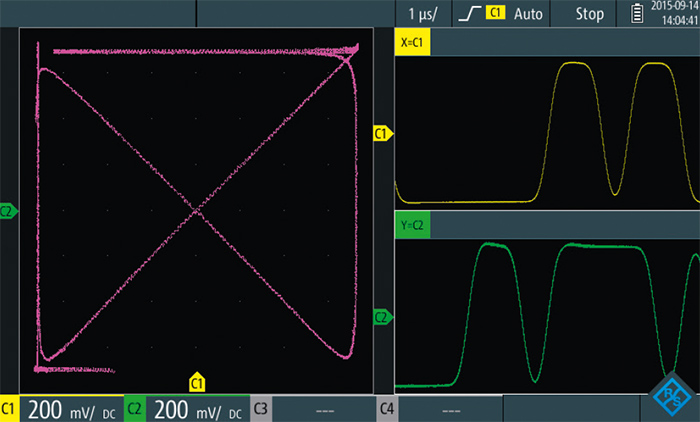

XY Operation Mode
Relative phases between two signals can be easily measured with the dedicated XY mode that also shows the individual time signals.
|
|
|

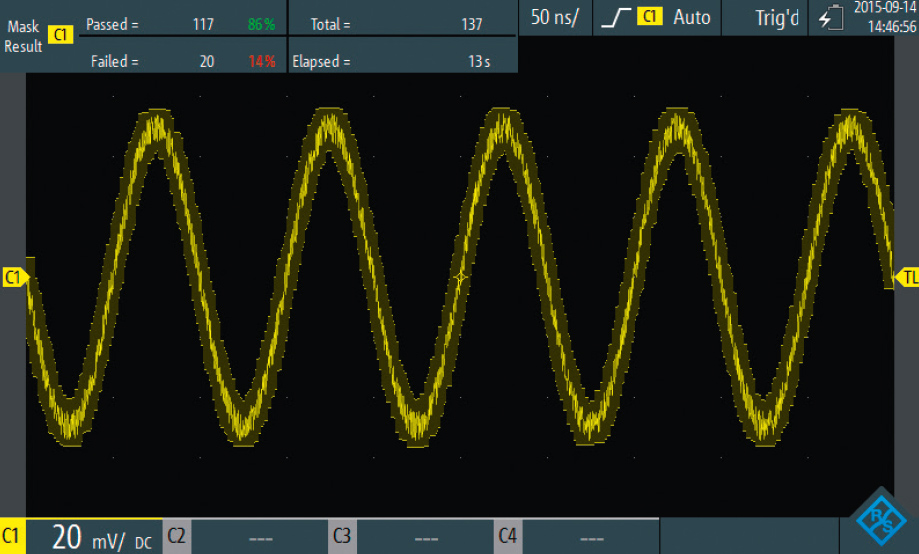

Mask Test Mode
The mask test mode shows pass and fail statistics and makes it easy to set up masks based on test signals.
|
|
|

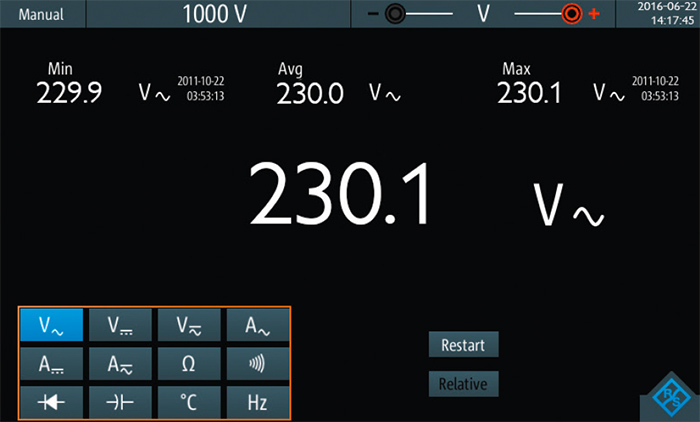

Digital Multimeter
The two-channel variant R&S®RTH1002 features a dedicated, isolated digital multimeter with 10 000 count resolution. Measurement functions include V DC, V AC, V AC + V DC, resistance, continuity and capacitance as well as current or temperature if suitable shunts are used.
|
| The four-channel variant, RTH1004 features a digital voltmeter on each input channel. Statistics information shows minimum, average and maximum values with corresponding time stamps. |
Capacitive Touch and Keypad Operation: Intuitive to use
- Full instrument control via touch panel or keypad
- Excellent readability and crystal clear signals: 7", 800 × 480 pixel capacitive touch display
- Multifunction wheel for easy parameter adjustment
- Large keys for use with safety gloves
Wireless LAN or Ethernet: Easy remote control within a web browser
An integrated wireless LAN module or the Ethernet port allow the R&S®Scope Rider to be remotely controlled directly from the web browser. The touch interface of the R&S®Scope Rider is accessible in the web browser. All settings can be adjusted on the PC. Image compression ensures that the screen image is rapidly updated.
User interface designed to customer needs
Making use of the latest display technology, the R&S®Scope Rider provides a crystal clear signal display with a high-resolution capacitive touch color display. Oscilloscope settings can easily be adjusted on the screen while dedicated keys provide quick access to important oscilloscope functions. A central multifunction wheel allows quick adjustment of settings such as the trigger level or the vertical position of each channel. Fully controllable via the keypad, the oscilloscope can also be used with gloves if safety or weather require them. Easy-to-under- stand diagrams explain important settings such as the trigger mode, the automatic measurement functions or the channel settings.
Easy documentation of measurement results
Simplify your measurement documentation with documentation project directories on the microSD card or USB flash drive. Screenshots, measurement results and settings files are saved with a single button press in the selected project directory. Data can be easily accessed and downloaded using the web browser interface.
Up to 32 Gbyte of data storage capability
The R&S®Scope Rider supports microSD cards with up to 32 Gbyte storage capability, making it possible to save virtually an unlimited amount of data, screenshots or settings files on the instrument.
Wireless LAN or Ethernet:
Easy Remote Control for Safety Critical Measurements
An integrated wireless LAN module and web server allows easy remote control of the R&S®Scope Rider. The waveform display and user interface of the R&S®Scope Rider are directly available in the web browser; all settings can be changed on the screen.
With no software installation required, the R&S®Scope Rider can be controlled from almost every portable device such as a laptop, a tablet or even a mobile phone.

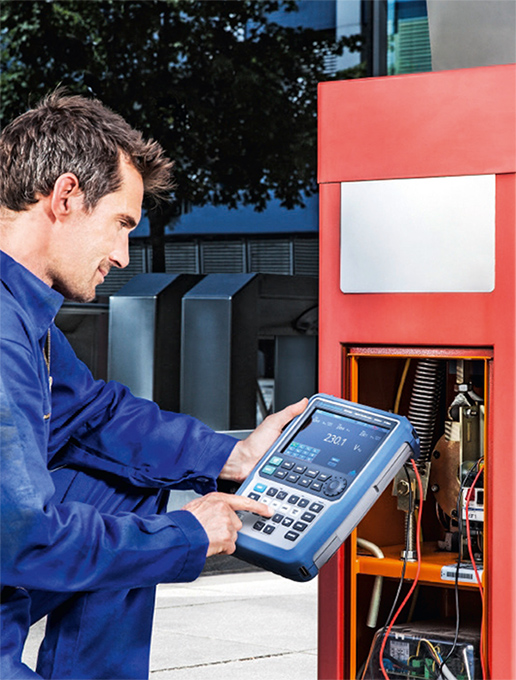

Built for your work environment:
Outstanding Protection and Ruggedness
- Isolation of all analog input channels
- Rated for measurements in CAT III 1000 V/ CAT IV 600 V environments
- IP51 housing for harsh environments
- Nonslip and impact resistant rubberized surface
