Rohde & Schwarz RTE-K50 Manchester and NRZ

Name: Rohde & Schwarz RTE-K50 Manchester and NRZ
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRTE-K50
Price: 2970.00 USD
Availability: InStock

0 reviews | Catalog: 1326.1326.02 | Model: Rohde & Schwarz RTE-K50

Compare

Manchester and NRZ serial triggering and decoding (for models 1317.2500.xx) (software license)

For use with RTE 1000 series
Manchester and NRZ serial triggering and decoding (for models 1326.2000.xx) (unregistered license)
The protocol frame can be configured, including preamble, frame ID, data, CRC and more
Display of all decoded telegrams as color-coded bus signals or in tabular form, as defined in the frame configuration
Triggering on start of frame, frame ID and data. Maximum data rate for triggering of 50 Mbit/s
Support of up to 50 different frame formats
Fastest eye-diagram mask testing with standard mask test functionality

View Product Details

Your Price: $2,970.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde & Schwarz RTE-K50 - Manchester and NRZ

Manchester and NRZ serial triggering and decoding (for models 1326.2000.xx) (unregistered license)

The protocol frame can be configured, including preamble, frame ID, data, CRC and more
Display of all decoded telegrams as color-coded bus signals or in tabular form, as defined in the frame configuration
Triggering on start of frame, frame ID and data. Maximum data rate for triggering of 50 Mbit/s

The R&S®RTO and R&S®RTE oscilloscopes support triggering and decoding of any Manchester and NRZ coded serial protocol with data rates up to 5 Gbit/s, including Manchester violation detection. You can define up to 50 different frame formats. Errors are identified reliably and efficently using the hardware-accelerated trigger. You can trigger on start of frame, frame ID and data.

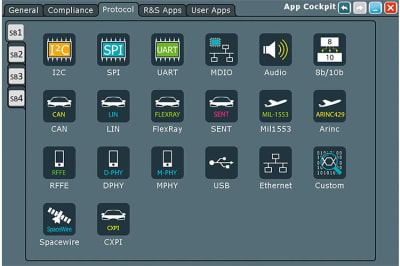

Fast Bus Setup

Bus setup in seconds with the app cockpit - Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

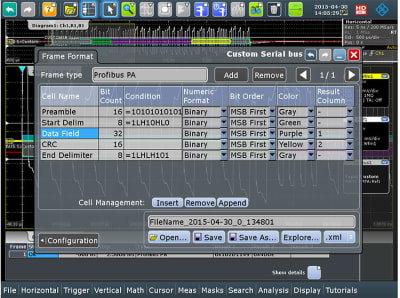

Up to 50 Different Frame Formats

Frame formats for NRZ and Manchester buses - You can define up to 50 different frame formats for any NRZ or Manchester coded protocol with data rates up to 5 Gbit/s.
