• Bus setup in seconds with the app cockpit
• Hardware-based triggering & decoding to find errors faster
• Supports I²S standard, left justified, right justified and TDM signals
• Trigger on data, window, frame condition, word select or various error conditions
• Fast eye-diagram mask testing with up to 600 000 waveforms/s

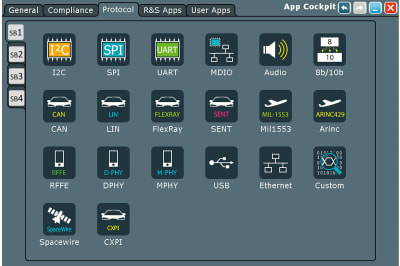

Fast bus setup

Bus setup in seconds with the app cockpit
Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

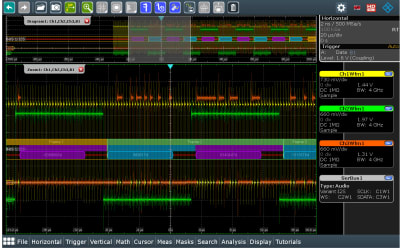

Supports I²S standard, left justified, right justified and TDM signals

You can use the R&S®RTx-K5 option to decode the most common I²S audio signals, left justified, right justified and TDM.

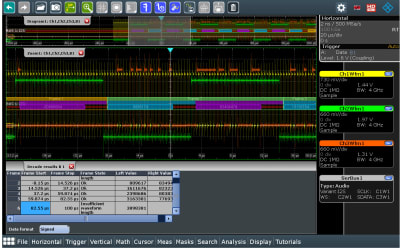

Color-coded telegram display

Telegram display as color-coded bus signals and in decode table
You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The telegrams can also be displayed in a concise table.

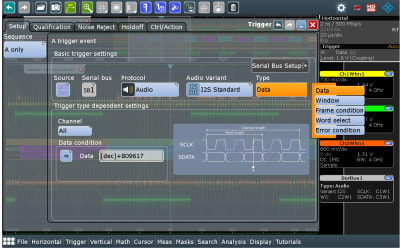

Strong trigger capability

Strong trigger capability on data, window, frame condition, word select and various error conditions
The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

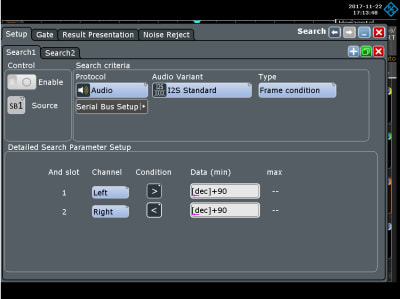

Search and navigate in recorded acquisitions

Powerful search and navigate capability
Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.
