• Every R&S RTP, R&S RTO2000 and R&S RTE can be enhanced to include an arbitrary waveform generator
• Test your device with native signals
• Single-ended and differential interface stimulation
• Fully automated compliance tests with the R&S B6 option

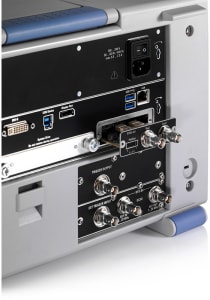

Enhancement for R&S RTP, R&S RTO2000 and R&S RTE oscilloscopes

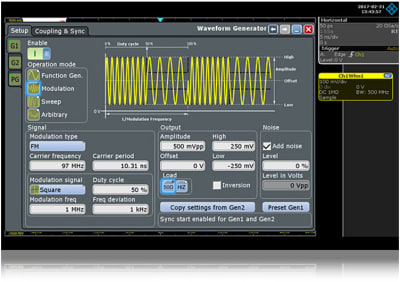

The R&S RTP, R&S RTO2000 and R&S RTE oscilloscopes can be enhanced with a fully integrated arbitrary waveform and pattern generator. The generator provides 2 analog and 8 digital channels with up to 100 MHz bandwidth, 500 Msample/s and 14-bit resolution and can be operated as a pattern, function or modulation generator. It is suitable for education, design and R&D purposes.

Single-ended and differential interface stimulation

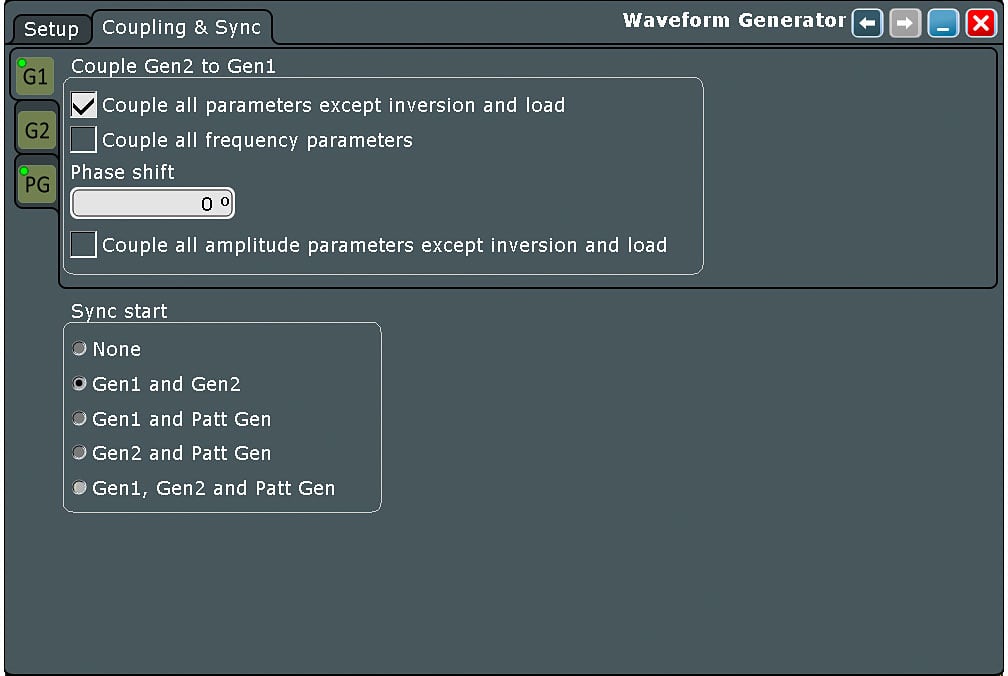

For testing differential devices, the generators can be coupled and offset from each other. With the offset capability of amplitude and phase in coupled mode, you can simulate both ideal and non-ideal conditions. Differential devices, such as differential amplifiers or I/Q mixers, can be tested against amplitude impairments and phase imbalances.

Test your device with native signals

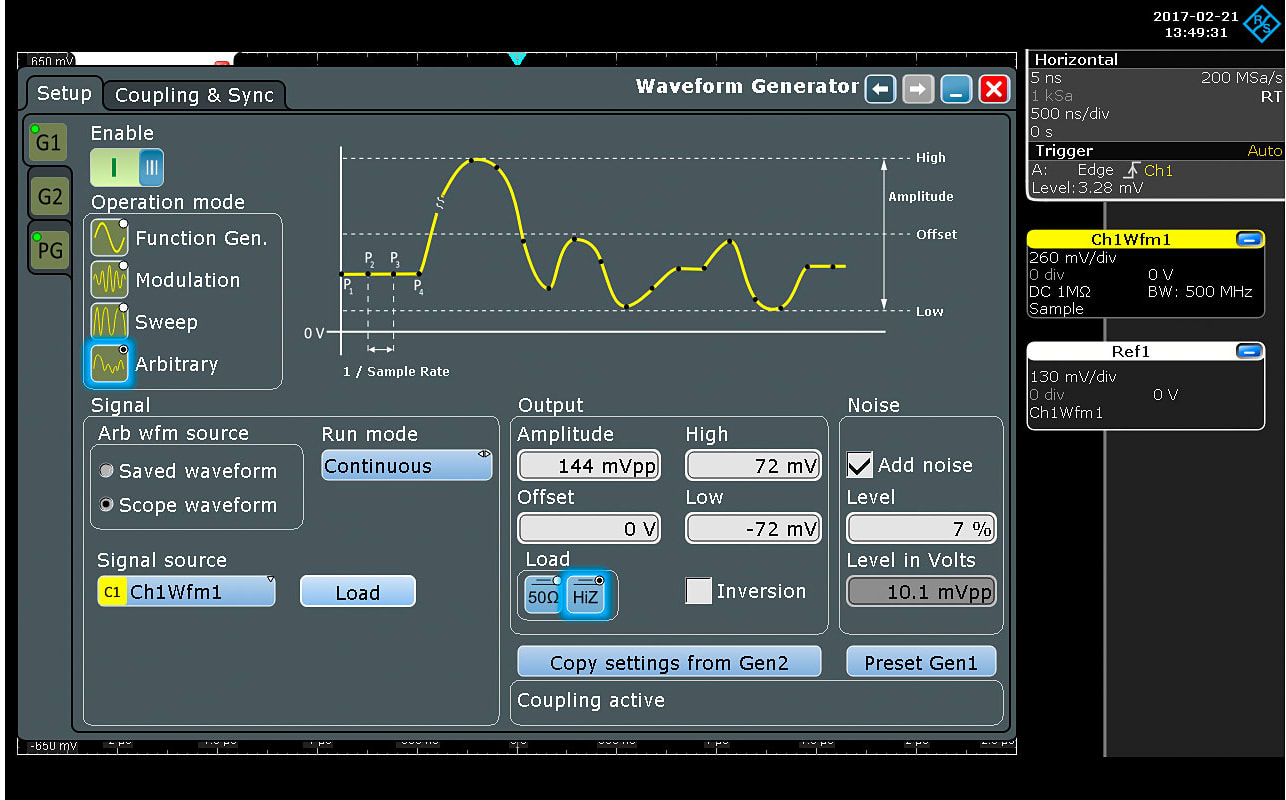

Testing your device with real-world signals opens up a new method to test the margins of your design. The arbitrary waveform generator lets you play back waveforms that are captured on the oscilloscope. The captured waveforms can be manipulated by changing the amplitude and offset level or be superimposed with noise to evaluate a device against design criteria.

Fully automated compliance tests

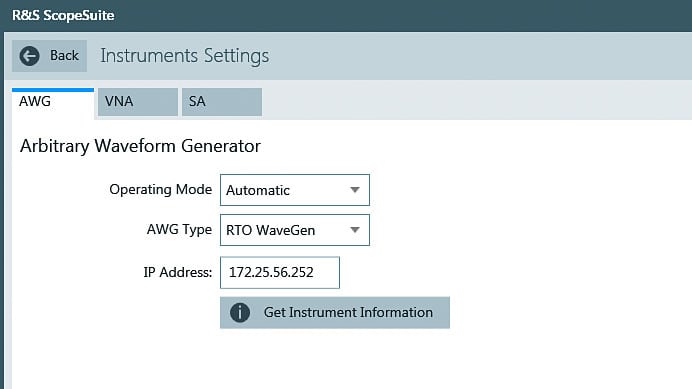

Compliance tests can be fully automated utilizing the B6 arbitrary waveform generator, eliminating the need for an external signal source. R&S ScopeSuite is able to control the waveform generator and provide, for instance, the disturbing signal needed for Ethernet compliance testing. As a result, the R&S RTO and R&S RTP offer the most compact compliance test solutions on the market.
