Vertical System |
Number of channels |

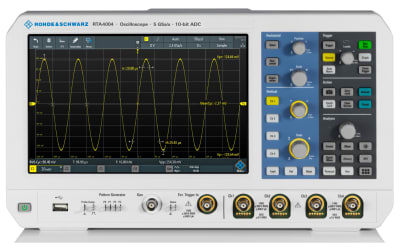

RTA4004 |
4 |
Bandwidth (-3 dB) |
RTA4004 (with R&S®RTA-B24x options) |
200 MHz, 350 MHz, 500 MHz, 1 GHz |
Rise time (calculated) |
RTA4004 (with R&S®RTA-B24x options) |
5 ns, 3.5 ns, 1.75 ns, 1.15 ns |
Input sensitivity |
max. bandwidth in all ranges |
|
|
at 1 MΩ |
500 µV/div to 10 V/div |
|
at 50 Ω |
500 µV/div to 1 V/div |
DC gain accuracy |
offset and position = 0, maximum operating temperature change of ±5 °C after self-alignment |
|
input sensitivity > 5 mV/div |
±1 % of full scale |
|
input sensitivity ≤ 5 mV/div to ≥ 1 mV/div |
±1.5 % of full scale |
|
input sensitivity < 1 mV/div |
±2.5 % of full scale |
ADC resolution |
|
10-bit, up to 16-bit with high resolution decimation |
Acquisition system |
Maximum realtime sampling rate |
|
2.5 Gsample/s; 5 Gsample/s, interleaved |
Acquisition memory |
|
100 Msample (200 Msample, interleaved);
1 Gsample segmented memory |
Horizontal system |
Timebase range |
|
selectable between 0.5 ns/div and 500 s/div |
Trigger system |
Trigger types |
standard |
edge, width, video (PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV
720p, HDTV 1080i, HDTV 1080p), pattern, line, serial bus |
|
option |
I 2 C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN, audio (I²S),
ARINC 429, MIL-STD-1553 |
MSO option |
Digital channels |
|
16 (2 logic probes) |
Sampling rate |
|
2.5 Gsample/s; 5 Gsample/s, interleaved |
Acquisition memory |
|
10 Msample |
Waveform generator |
Resolution, sample rate |
|
14-bit, 250 Msample/s |
Amplitude |
high Z; 50 Ω |
20 mV to 10 V (Vpp); 10 mV to 5 V (Vpp) |
DC offset |
high Z; 50 Ω |
±5 V; ±2.5 V |
General data |
Screen |
|
10.1" WXGA TFT color display (1280 × 800 pixel) |
Interfaces |
|
USB host with MTP, USB device, LAN, powerful web server for
remote display and operation |
Audible noise |
maximum sound pressure level at a distance
of 1.0 m |
28.3 dB(A) |
Dimensions |
W × H × D |
390 mm × 220 mm × 152 mm (15.4 in × 8.66 in × 5.98 in) |
