Rohde & Schwarz passive probes are the all-rounders in the world of probes. They are low-cost, general purpose solutions for a broad range of applications.
Universal application
Rohde & Schwarz passive probes are the all-rounders in the world of probes. They are low-cost, general purpose probing solutions for a broad range of applications. The BNC connector allows them to be used on almost any oscilloscope. Passive probes with readout pin enable Rohde & Schwarz oscilloscopes to automatically detect the attenuation factor. A spring-loaded tip ensures good contact with the DUT.
Individual adjustment for precise measurements
In order to achieve optimum measurement accuracy, passive probes with a probe bandwidth larger than 350 MHz must be adjusted to the input impedance of the oscilloscope. Rohde & Schwarz offers the R&S RTM-ZP10 and the R&S RT-ZP10 500 MHz passive probes, which are preadjusted for the R&S RTM and the R&S RTO oscilloscopes, respectively.
Extensive accessories

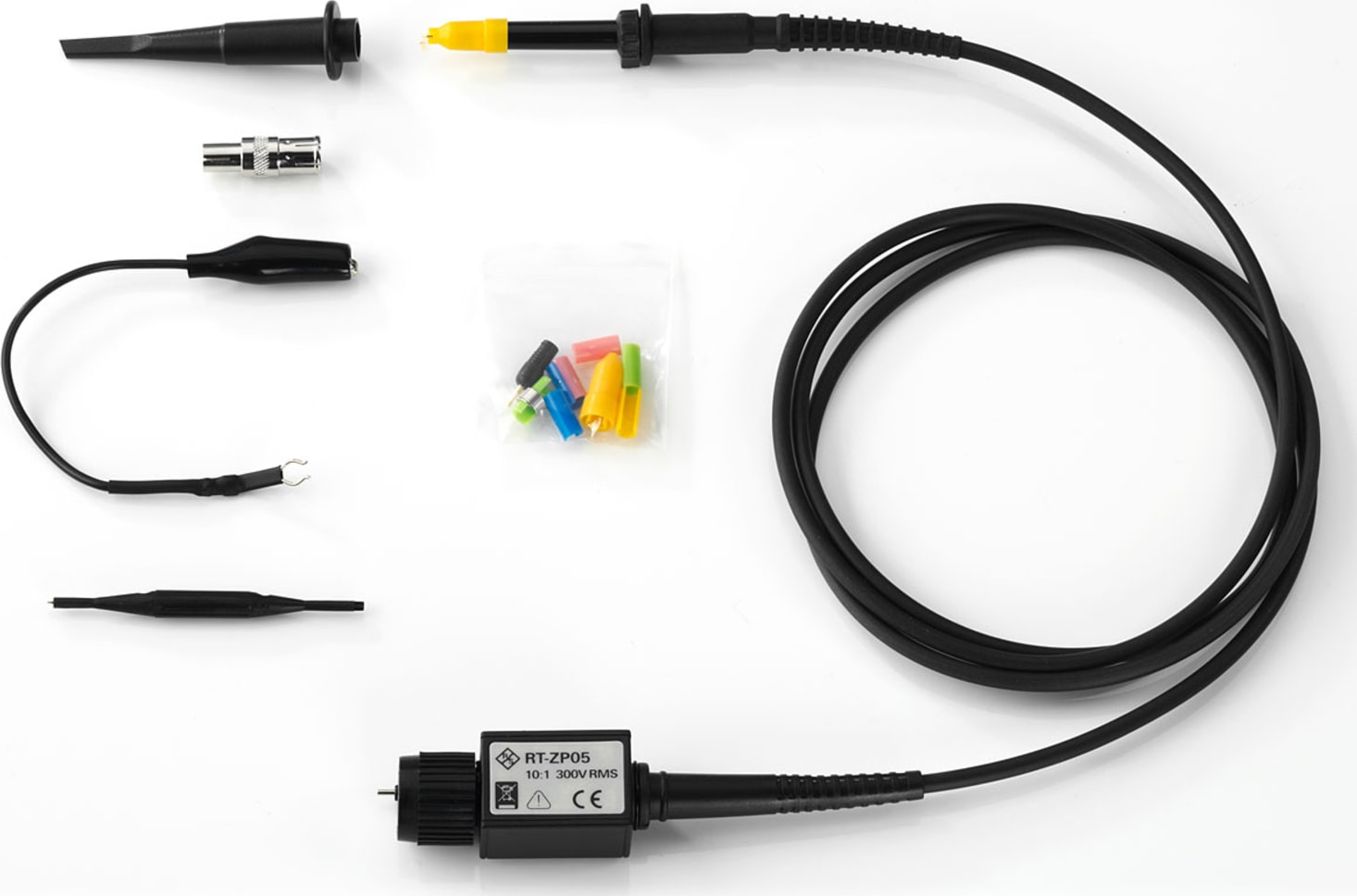

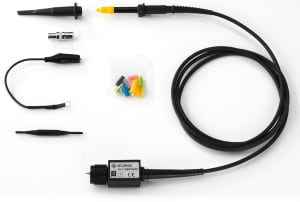

For optimal contacting, Rohde & Schwarz offers the R&S RT-ZA1 accessory set for passive probes. It includes spare spring-loaded tips, rigid tips, ground contact springs, ground leads and color-coded rings.
![]()
Derating - Derating curve
Note that the input impedance of the probe decreases
as the frequency of the applied signal increases.
