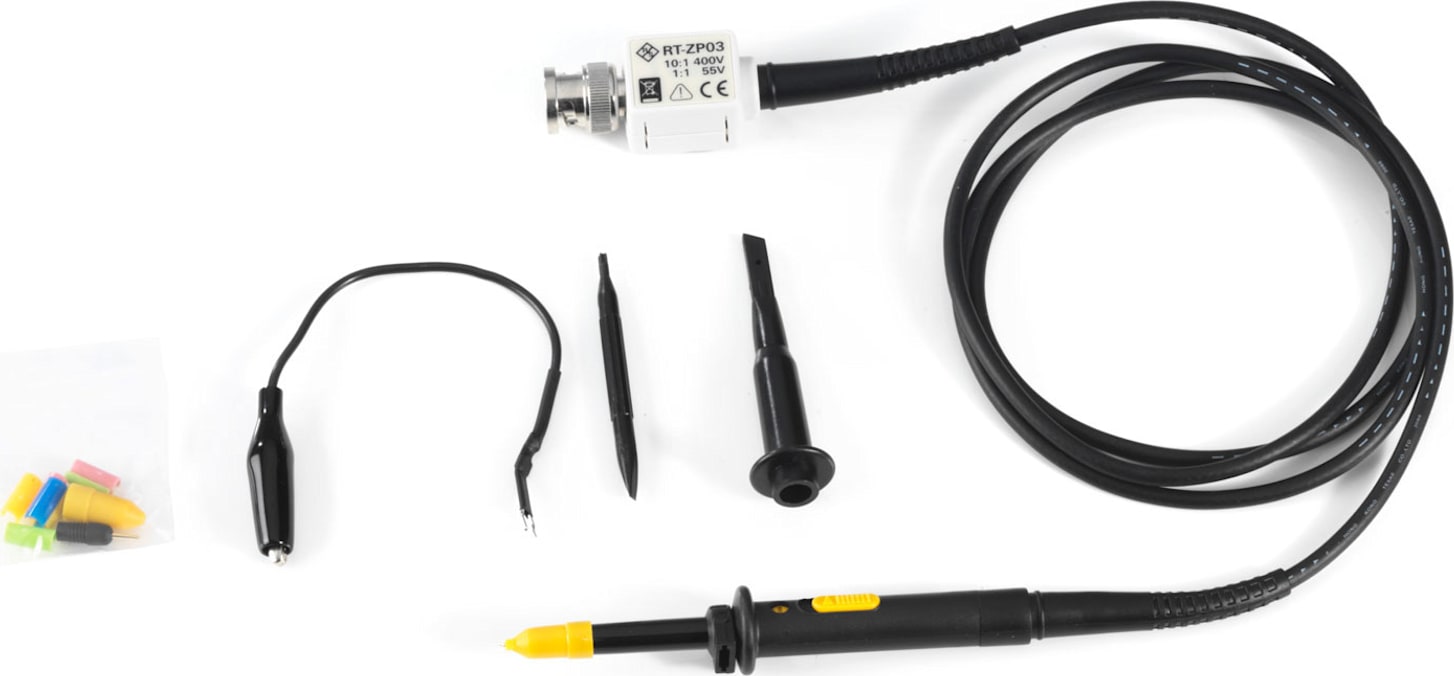

Rohde & Schwarz RT-ZP03S - Passive Probe

5 mm tip, no probe detection
Bandwidth: 300 MHz
Maximum voltage: 400 V (RMS) / 55 V (RMS)
Attenuation factor: 10:1 / 1:1
Input impedance: 10 MΩ || 12 pF / 1 MΩ || 82 pF

Universal application

Rohde & Schwarz passive probes are the all-rounders in the world of probes. They are low-cost, general purpose probing solutions for a broad range of applications. The BNC connector allows them to be used on almost any oscilloscope. Passive probes with readout pin enable Rohde & Schwarz oscilloscopes to automatically detect the attenuation factor. A spring-loaded tip ensures good contact with the DUT.

Individual adjustment for precise measurements

In order to achieve optimum measurement accuracy, passive probes with a probe bandwidth larger than 350 MHz must be adjusted to the input impedance of the oscilloscope. Rohde & Schwarz offers the R&S RTM-ZP10 and the R&S RT-ZP10 500 MHz passive probes, which are preadjusted for the R&S RTM and the R&S RTO oscilloscopes, respectively.

Extensive accessories

For optimal contacting, Rohde & Schwarz offers the R&S RT-ZA1 accessory set for passive probes. It includes spare spring-loaded tips, rigid tips, ground contact springs, ground leads and color-coded rings.

Derating

Note that the input impedance of the probe

decreases as the frequency of the applied signal increases..

Adjustment

The probe can be adjusted for low (LF) and high-frequency compensation (HF).

General Specifications
Electrical Specifications
Attenuation ratio:	1:1	10:1
Bandwidth:	10MHz (–3 dB)	300MHz (–3 dB)
Rise time:	35 ns, typical	1 .15 ns, typical
Input impedance:	1 MΩ II 82 pF	10 MΩ II 12 pF
Input voltage:	max. 55 VRMS	max. 400 VRMS (600 V transient overvoltage)
Miscellaneous
Temperature range:	0 - 40 °C
Relative humidity:	max . 80%, without condensation
Altitude:	max . 2000m
Polution degree:	2
Cable length:	ca. 1.20m

Tech Specs

Test Equipment General Attributes
Product Height	0.90 IN
Product Length	6.50 IN
Product Width	5.50 IN
HTS/Schedule B Number	9030908911
ECCN Number	3A992
Country of Origin	China

4.5

Name: Rohde & Schwarz RT-ZP03S Passive Probe 1:1 (10MHz), 10:1 (300MHz)
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRT-ZP03S
Price: 110.00 USD
Availability: InStock
Rating: 4.33 (3 reviews)

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 3 reviews

Most Helpful First | Newest First

Recommend to a Friend

RT-ZP03S Probe

3.0

Bought a set of four RT-ZP03S probes mid April 2024. The image, description and specs were shown as 1X/10X switchable attenuation probes on the TEquipment website. Upon arrival I found these are actually 10X only attenuation, all three waveform adjustments are now made from the small enclosure on the BNC connector. They work, but I wanted the switchable attenuation. Originally I contacted Rhode and Schwarz, had an issue with all four probes. According to their own website, probes and other parts can be purchased directly from the company. Out of warranty I expected no freebies. Support told me, as an individual, not a company or part of a company, they couldn't help me. My only option for new OEM probes was TEquipment. Part of the reason I chose Rhode and Schwarz and the higher cost, was the claim of superior support. This whole situation has become a continuing trend with companies and suppliers. Maybe a heads-up to an individual buyer considering Rhode and Schwarz equipment. Nonetheless, my last Rhode and Schwarz purchase.

Verified Purchase R on Apr 27, 2024

Recommend to a Friend

Well made probe

5.0

These are well made passive probes. Good response and low noise. The grabbers are nice and slim for getting into tight spaces.

Verified Purchase Wtom on Jun 15, 2019

Recommend to a Friend

Clean signal

5.0

Nicely constructed and clean signal.

Verified Purchase Wthom on Jun 13, 2019
