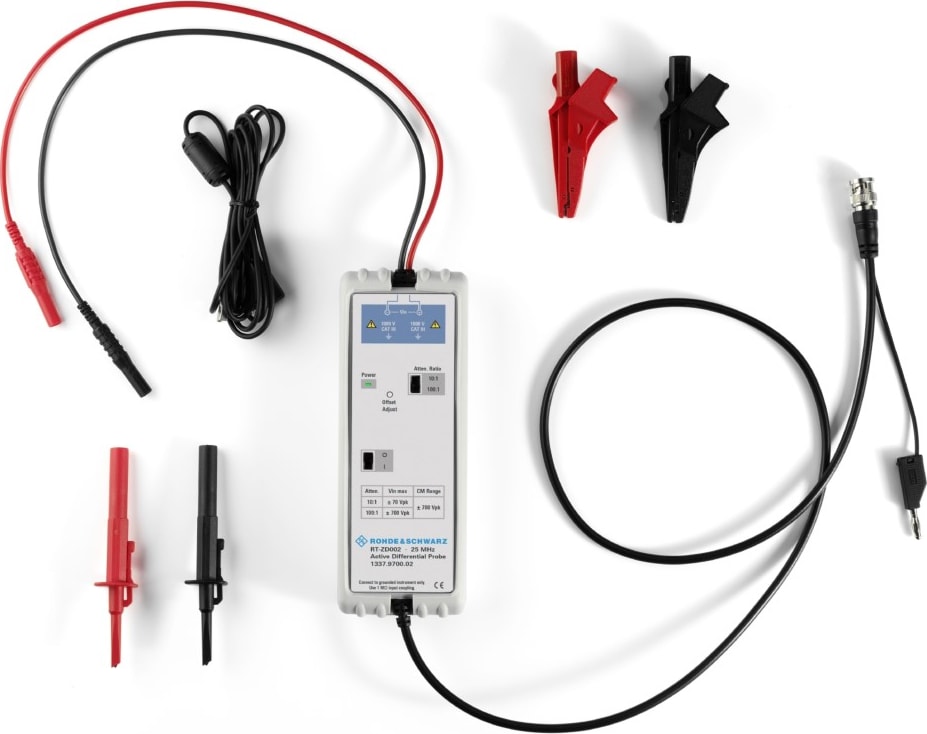

Rohde & Schwarz RT-ZD002 25 MHz High Voltage Differential Probe

Name: Rohde & Schwarz RT-ZD002 25 MHz High Voltage Differential Probe
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRT-ZD002
Price: 870.00 USD
Availability: InStock

0 reviews | Catalog: 1337.9700.02 | Model: Rohde & Schwarz RT-ZD002

Compare

25 MHz high voltage differential probe 700 Vpk, 1000 V CAT III, 100:1/10:1, 8 MOhm/ 2.75 pF

25 MHz high voltage differential probe 700 Vpk
1000 V CAT III
100:1/10:1
8 MOhm/ 2.75 pF

View Product Details

List Price: $870.00

In Stock:

View Payment Options

Recommended for you

Rohde & Schwarz RT-ZD002 25 MHz High Voltage Differential Probe

25 MHz high voltage differential probe 700 Vpk
1000 V CAT III
100:1/10:1
8 MOhm/ 2.75 pF

The R&S RT-ZD003 and R&S RT-ZD002 high voltage differential probes are an excellent choice for lower bandwidth requirements. They have a 25 MHz bandwidth and offer up to 1400 V maximum input voltage. This probe is grounded with the shell of BNC connector and an auxiliary grounding terminal, through the grounding conductor of the power cord of the measurement instrument. Before making connections to the input leads of this probe, ensure that the output BNC connector is attached to the BNC connector of the measurement instrument and the measurement instrument is properly grounded.

General Specifications
	RT-ZD002	RT-ZD003
Bandwidth	DC to 25 MHz (-3 dB)	DC to 25 MHz (-3 dB)
Attenuation Ratio	1:10 / 1:100	1:20 / 1:200
Accuracy	±2 % (meas.)	±2 % (meas.)
Rise Time	14 ns (calculated from bandwidth)	14 ns (calculated from bandwidth)
Input Impedance	8 MΩ // 2.75 pF differential 4 MΩ // 5.5 pF each side to ground	8 MΩ // 2.75 pF differential 4 MΩ // 5.5 pF each side to ground
Input Voltage - Differential Range	1:10 ±70 V (DC+peak AC) 1:100 ±700 V (DC+peak AC)	1:20 ±140 V (DC+peak AC) 1:200 ±1400 V (DC+peak AC) or 1000 Vrms
Input Voltage - Common Mode Range	1:10 and 1:100 ±700 V (DC+peak AC)	1:20 and 1:200 ±1400 V (DC+peak AC) or 1000 Vrms
Maximum Input Voltage (each side to ground	1000 V CAT III	1000 V CAT III
Output Voltage Swing	±7 V (into 50 kΩ load)	±7 V (into 50 kΩ load)
Output Voltage Offset	±5 mV (meas.)	±5 mV (meas.)
Output Voltage Noise	0.7 mVrms (meas.)	0.7 mVrms (meas.)
Oscilloscope Input Impedance	1 MΩ	1 MΩ
CMRR (meas.)	-86 dB @ 50 Hz, -66 dB @ 20 kHz	-80 dB @ 50 Hz, -60 dB @ 20 kHz
Operating Temperature	-10 °C to 40 °C	-10 °C to 40 °C
Storage Temperature	-30 °C to 70 °C	-30 °C to 70 °C
Humidity	25 % to 85 % RH	25 % to 85 % RH
Power Requirements - Standard	4 x AA Cells	4 x AA Cells
Power Requirements - Optional	4.5 V to 12 V, 360 mW	4.5 V to 12 V, 360 mW
Length of BNC Cable	95 cm	95 cm
Length of Input Leads	45 cm	45 cm
Weight	400 g (probe and PVC jacket)	400 g (probe and PVC jacket)
Dimensions (LxWxH)	170 mm x 63 mm x 21 mm	170 mm x 63 mm x 21 mm

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Bandwidth	25 MHz
Maximum Differential Input Voltage	700 V
Current Type (Scope probes)	AC
Rise Time	14 ns
CAT Voltage Rating	III
Safety Voltage Rating	1000V
Test Equipment General Attributes
Product Weight	0.8 LBS
Product Height	0.8 IN
Product Length	6.6 IN
Product Width	2.4 IN
HTS/Schedule B Number	9030908911
ECCN Number	EAR99
Country of Origin	Qatar
