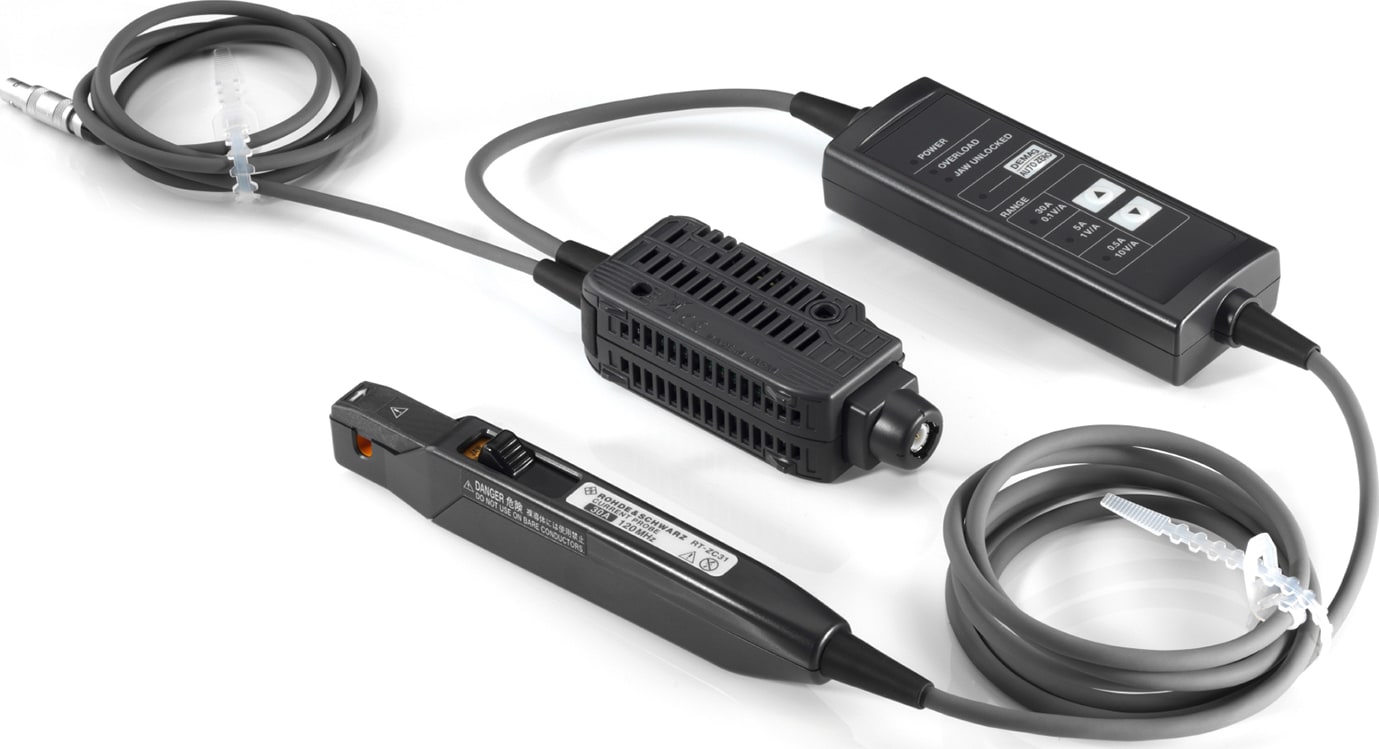

Rohde and Schwarz RT-ZC31 - Three-range current probe

Name: Rohde and Schwarz RT-ZC31 - Three-range current probe
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzRT-ZC31
Price: 8670.00 USD
Availability: InStock

0 reviews | Catalog: 1801.4932.02 | Model: Rohde & Schwarz RT-ZC31

Compare

Three-range current probe 120 MHz Bandwidth AC/DC 30/5/0.5 Arms 0.1/1/10 V/A BNC connector +/-12V power supply required R and S RT-ZA13 recommended (accessory)

The sensor head has a clamp design that makes it possible to easily observe current waveforms while current continues to flow through the conductor being measured.
Three current measurement ranges: 0.1 V/A, 1 V/A, and 10 V/A.
You can observe low-current waveforms at the high sensitivity of 10 V/A.
LED warnings indicate overload and unlocked sensor head.
Broadband frequency characteristics DC to 120 MHz.
Demagnetization and automatic zero adjustment functions make it easy to get ready for measurement.

View Product Details

Your Price: $8,670.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Recommended for you

Rohde & Schwarz RT-ZC31 Accessories

Choose a Category

Oscilloscope Probe Accessories

for the Rohde & Schwarz RT-ZC31

Rohde & Schwarz RT-ZA13 Power supply for probes, +/-12V DC, +/-2.5A (accessory)

Catalog: 1409.7789.02

(0)

In Stock!

Add to Cart

Rohde & Schwarz RT-ZF20 Deskew fixture for voltage and current probes for power...

Catalog: 1800.0004.02

(0)

In Stock!

Add to Cart

Rohde and Schwarz RT-ZC31 - Three-range current probe

LED warnings indicate overload and unlocked sensor head.
Broadband frequency characteristics DC to 120 MHz.
Three current measurement ranges: 0.1 V/A, 1 V/A, and 10 V/A.
You can observe low-current waveforms at the high sensitivity of 10 V/A.
Demagnetization and automatic zero adjustment functions make it easy to get ready for measurement.

The R&S RT-ZC31 is a clamp-on current probe that features high current-detection sensitivity and broad frequency band. The probe uses three current ranges to detect current waveforms from a few hundred µA to 50 A. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the electric circuit.
