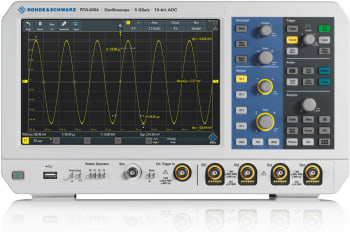

| Model: R&SRTA4K-COM4 Specifications |
| Description |
Oscilloscope Promotion |
| Bandwidth |
1 GHz |
| Channels |
4 Analog/16 Digital |
| Resolution |
10 bit |
| Option packages |
AWG, MSO, I2C, SPI, UART/RS-232/RS-422/RS-485, I2S LJ/RJ/TDM, MIL-1553, ARINC 429, CAN/LIN, power analysis, frequency response analysis, history and segmented memory, spectrum analysis |
| V/div 1 MΩ |
500 µV to 10 V |
| V/div 50 Ω |
500 µV to 1 V |
| Horizontal |
| Sampling rate per channel (in Gsample/s) |
Up to 5 Gsample/s |
| Max. memory (per channel/1 channel active) |
100 Msample; 200 Msample (1 Gsample in segmented memory mode) |
| Segmented memory |
Standard |
| Acquisition rate (in waveforms/s) |
64000 (2000000 in fast segmented memory mode 2) |
| Trigger |
| Options |
Basic (10 trigger types) |
| Mixed signal option |
| No. of digital channels |
16 |
| Sampling rate of digital channels (in Gsample/s) |
Two logic probes: 2.5 on each channel; one logic probe: 5 on each channel |
| Memory of digital channels |
Two logic probes: 100 Msample per channel; one logic probe: 200 Msample per channel |
| Analysis |
| Cursor meas. types |
4 |
| Stand. meas. functions |
32 |
| Mask test |
Elementary (tolerance mask around the signal) |
| Mathematics |
Basic (math on math) |
| Serial protocols triggering and decoding |
2C, SPI, UART/RS-232/RS-422/RS-485, CAN, LIN, I2S,MIL-STD-1553, ARINC429 (8) |
| Applications |
Power, digital voltmeter (DVM), spectrum analysis and spectrogram, frequency response analysis |

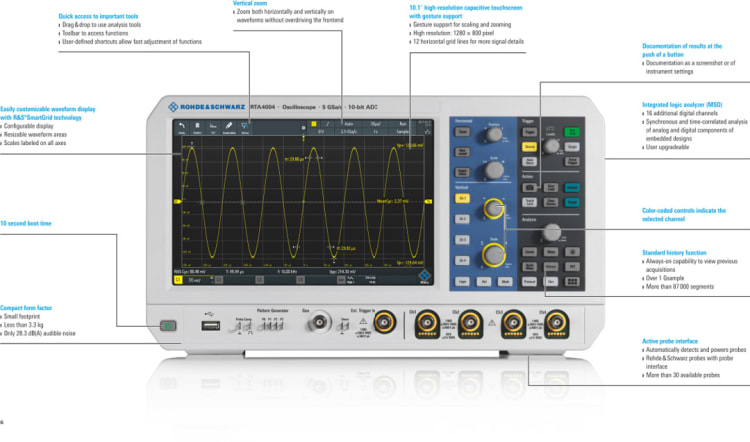

| Display and operation |
| Size and resolution |
10.1", color, 1280 × 800 pixel |
| Operation |
Optimized for touchscreen operation, parallel button operation |
| General data |
| Dimensions in mm (W × H × D) |
390 × 220 × 152 |
| Weight in kg |
3.3 |
