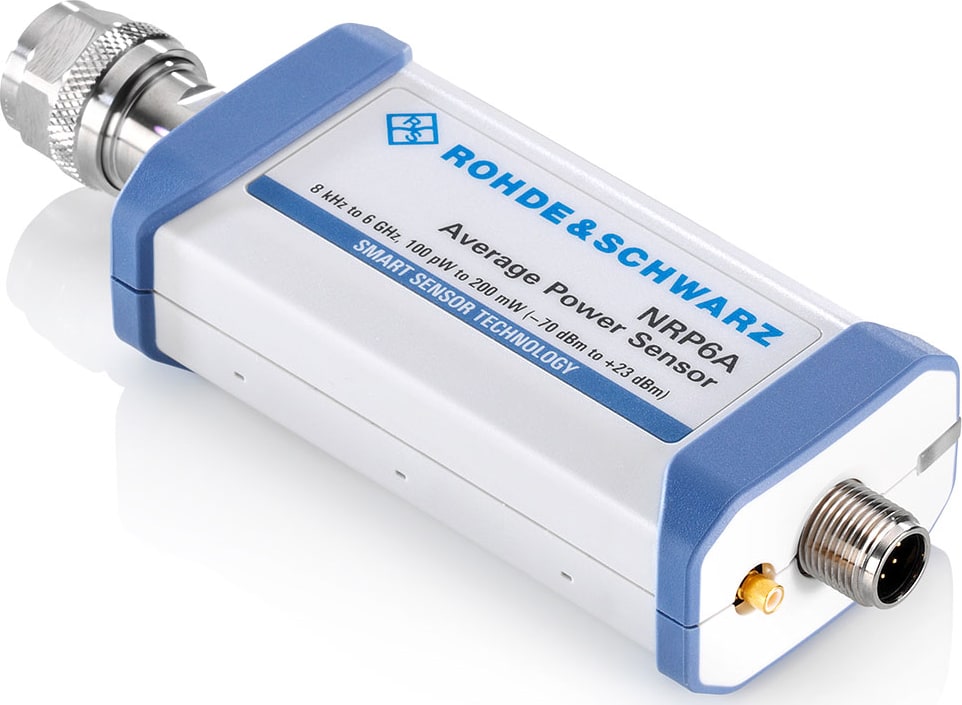

0 reviews | Catalog: 1424.6796.02 | UPC: 094308398822 | Model: Rohde & Schwarz NRP6A
Average power sensor; 8 kHz to 6 GHz; 100pW to 200mW; N(m); USB interface cable R and S NRP-ZKU or 6-pole interface cable R and S NRP-ZK6 is required
Your Price: $5,960.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
In EMC applications, usually only the average power is of interest. This is where the R&S NRPxxA(N) average power sensors are the perfect fit. They cover measurement ranges that are used in telecommunications as well as the important lower frequency bands down to 8 kHz. Users benefit from the excellent properties of the three-path diode power sensors, including a dynamic range of up to93 dB, very low influence of the modulation on the measurement and outstanding impedance matching. Several models available Rohde and Schwarz offers several versions of its average power sensor. Both of the models shown below are also available in a LAN version, which would have the same part number but with the letter "N" on the end. For example, NRP6A and NRP6AN.
Connecting the sensor to your computer or instrument These power sensors can use various, detachable cables for connection to diverse display units. A screw connection is provided on the sensor end to prevent accidental loosening of the cable. The R&SNRP-ZKU USB interface cable can be used to connect a power sensor to a laptop/PC via the USB interface. This is an extremely space-saving and also cost-efficient solution that does not require a base unit. Two software tools - R&S Power Viewer Plus and R&S NRPV virtual power meter - are available to simplify sensor operation from a laptop/PC. These tools support all measurement functions implemented in the sensors. The R&S NRP-ZK6 interface cable is intended for operating a power sensor on the R&S NRX base unit. It can also be used to connect the power sensor to diverse Rohde & Schwarz signal generators and signal and spectrum analyzers to enhance these instruments with a high performance power meter. Please note, the NRP-ZKU and NRP-ZK6 are sold separately.
As mentioned previously, both sensors in this series are available with a LAN connection. These are denoted by an "N" at the end of the part number. LAN models are equipped with an additional LAN interface without compromising sensor features or performance. Please note, the LAN connection is not a standard feature for the series and is only available on certain models. LAN power sensors are ideal for remote monitoring applications, e.g. for satellite systems or particle accelerators, where sensors need to be placed at different points in the system. The LAN interface makes it easy to overcome large distances between the various test points and the control center.
In LAN operation, the sensors are powered via a PoE capable LAN interface on the power sensor. If the LAN used does not support the PoE standard, then the sensors are connected to the LAN via a PoE switch (R&S NRP-ZAP2).
Rohde & Schwarz offers several varieties of its NRP power sensor. The NRPxxS(N), NRPxxT(N), NRPxxTWG, NRPxxA(N) and NRP-Zxx power sensors are immediately ready for use. In contrast to conventional power sensors, no calibration is required prior to making measurements since the sensors are fully characterized over frequency, level and temperature and feature longterm stability. All calibration data is stored in the sensors, so they function as independent measuring instruments. Usually, no zeroing is required. Users can plug in a sensor and simply start measuring.
