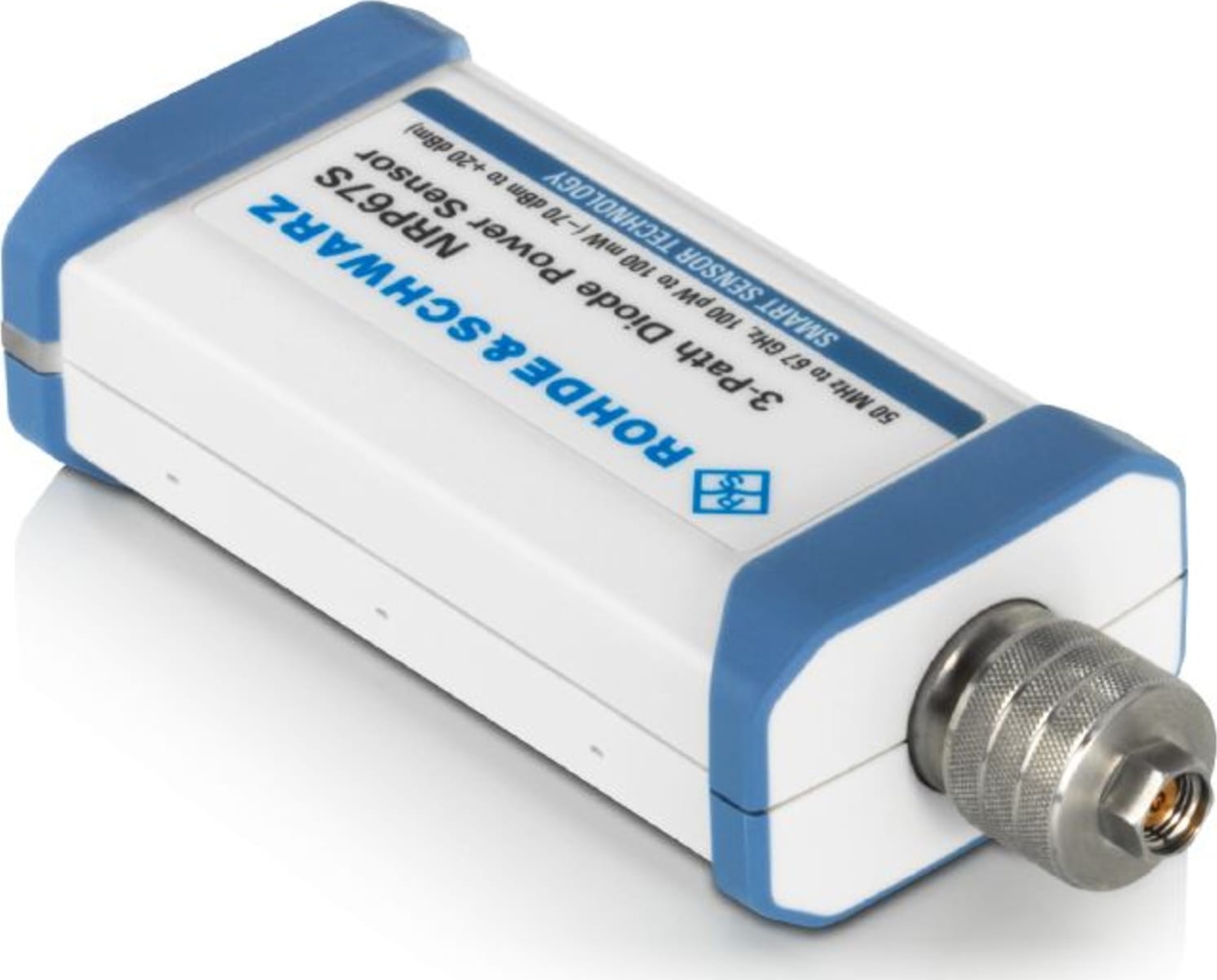

0 reviews | Catalog: 1424.6396.02 | Model: Rohde & Schwarz NRP67S
3-path diode power sensor 50 MHz to 67 GHz, 100 pW to 100 mW, 1.85 mm (m), USB sensor cable R and S NRP-ZKU or power sensor cable R and S NRP-ZKx required
Your Price: $19,785.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
This item is special order and is non-returnable and non-cancellable.
Please reach out to us if you are uncertain about this item. We will help you find the right solution.
Have a question? Ask an expert.
Three-path diode power sensors are suitable for numerous applications, since they support continuous average, burst average, timeslot average, gate average and trace measurements. Featuring outstanding performance and unprecedented measurement speed and accuracy, the sensors can be used to perform precise average power measurements on wireless signals such as GSM and 3GPP as well as on higher bandwidth signals such as LTE, LTE-Advanced or 5G.
The R&S NRPxxS(N) power sensors use three separate diode paths, each operated in the optimum detector range. The average power can be determined with high accuracy irrespective of the modulation type. Measurement results are hardly affected by interfering signals or harmonics. The R&S NRPxxS(N)power sensors therefore behave similar to thermal power sensors but offer significantly higher speed and up to 93 dB dynamic range.
To increase measurement accuracy at low levels, it is necessary to average multiple measured values. While averaging reduces the noise component, it also slows down the measurement. The R&S®NRPxxS(N) power sensors have therefore been designed with an extremely low measurement noise in mind. The R&S®NRPxxS(N) power sensors can perform measurements down to a lower limit of -70 dBm with the highest speed and accuracy currently available on the market.
Unlimited time measurement with up to 100.000 measurements/s In fast continuous average mode, the R&S NRPxxS(N)power sensors can perform up to 100,000 triggered measurements/s with a minimum trigger repetition time of 100 µs without losing any measurement. This measurement speed is achieved by using the buffered mode. In buffered mode, all measured data is collected inside the sensor and transmitted in one block to the sensor’s host. The R&S NRPxxS(N) sensors perform the new fast mode without time limitation!
TheR&S®NRP18S-10, R&S®NRP18S-20 and R&S®NRP18S-25 high-power three-path diode power sensors consist of an R&S®NRP18S and a 10/20/25 dB up stream attenuator. They are able to perform power measurements up to 2 W, 15W and 30 W. When used with the attenuator, mismatch errors between the sensor and attenuator are automatically corrected. The S-parameters for the attenuator are determined and stored in the sensor during production.
The R&S NRPxxSN-V TVAC-compliant power sensor is designed for satellite communications applications in a frequency range up to67 GHz. All components are baked in a vacuum chamber during the production process, so outgassing is reduced to a minimum. Thanks to their LAN capability, the power sensors can be easily controlled and monitored from outside the chamber while the venting holes in the housing ensure pressure equalization.
