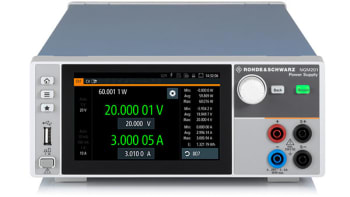

Electrical specifications |
Outputs |
The channel outputs are galvanically isolated and not connected to ground. |
Number of output channels |
R&S NGM201
R&S NGM202 |
1
2 |
Total output power |
R&S NGM201
R&S NGM202 |
max. 60 W
max. 120 W |
Maximum output power per channel |
|
60 W |
Output voltage per channel |
|
0 V to 20 V |
Maximum output current per channel |
≤ 6 V output voltage
> 6 V output voltage |
6 A
3 A |
Maximum voltage in serial operation |
R&S NGM202 |
40 V |
Maximum current in parallel operation |
R&S NGM202, ≤ 6 V output voltage
R&S NGM202, > 6 V output voltage |
12 A
6 A |

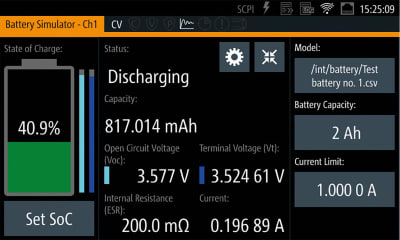

Adjustable output impedance |
|
–50 mΩ to 100 Ω |
Increments |
|
1 mΩ |
Recovery time |
≤ 2 Ω, resistive load
> 2 Ω, resistive load |
< 200 µs
< 10 ms |
Voltage ripple and noise |
20 Hz to 20 MHz |
< 500 µV (RMS),
< 2 mV (peak-to-peak) (meas.) |
Current ripple and noise |
20 Hz to 20 MHz |
< 1 mA (RMS) (meas.) |

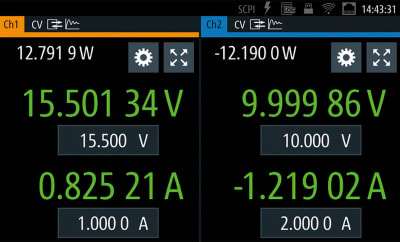

Electronic load |
|
yes, R&S NGM202: both channels |
Maximum sink power |
R&S NGM201
R&S NGM202 |
60 W
120 W (60 W per channel) 1) |
Maximum sink current per channel |
|
3 A |
Sink modes |
|
constant voltage, constant current, constant resistance |
Load regulation |
load change: 10% to 90% |
Voltage |
±(% of output + offset) |
< 0.01% + 1 mV |
Current |
±(% of output + offset) |
< 0.01% + 0.1 mA |
Load recovery time |
regulation to within ±20 mV of the set voltage |
< 30 µs (meas.) |
Rise time |
10% to 90% of rated output voltage, resistive
load |
full load: < 125 µs
no load< 125 µs |
Fall time |
10% to 90% of rated output voltage, resistive
load |
full load: < 125 µs
no load: < 125 µs |
Programming resolution |
Voltage |
|
1 mV |
Current |
|
0.1 mA |
Programming accuracy |
Voltage |
±(% of output + offset) |
< 0.02% + 3 mV |
Current |
±(% of output + offset) |
< 0.05% + 2 mA |
