Add 16 digital channels with the MXO4-B1 MSO option. Unlike some other oscilloscopes that force a tradeoff between digital and analog channel usage, the MXO 4 series logic channels can be used simultaneously with all analog channels.

This option includes both the probes and the software. Simply connect an MXO4-B1 probe to the MXO 4 to use the digital channels.

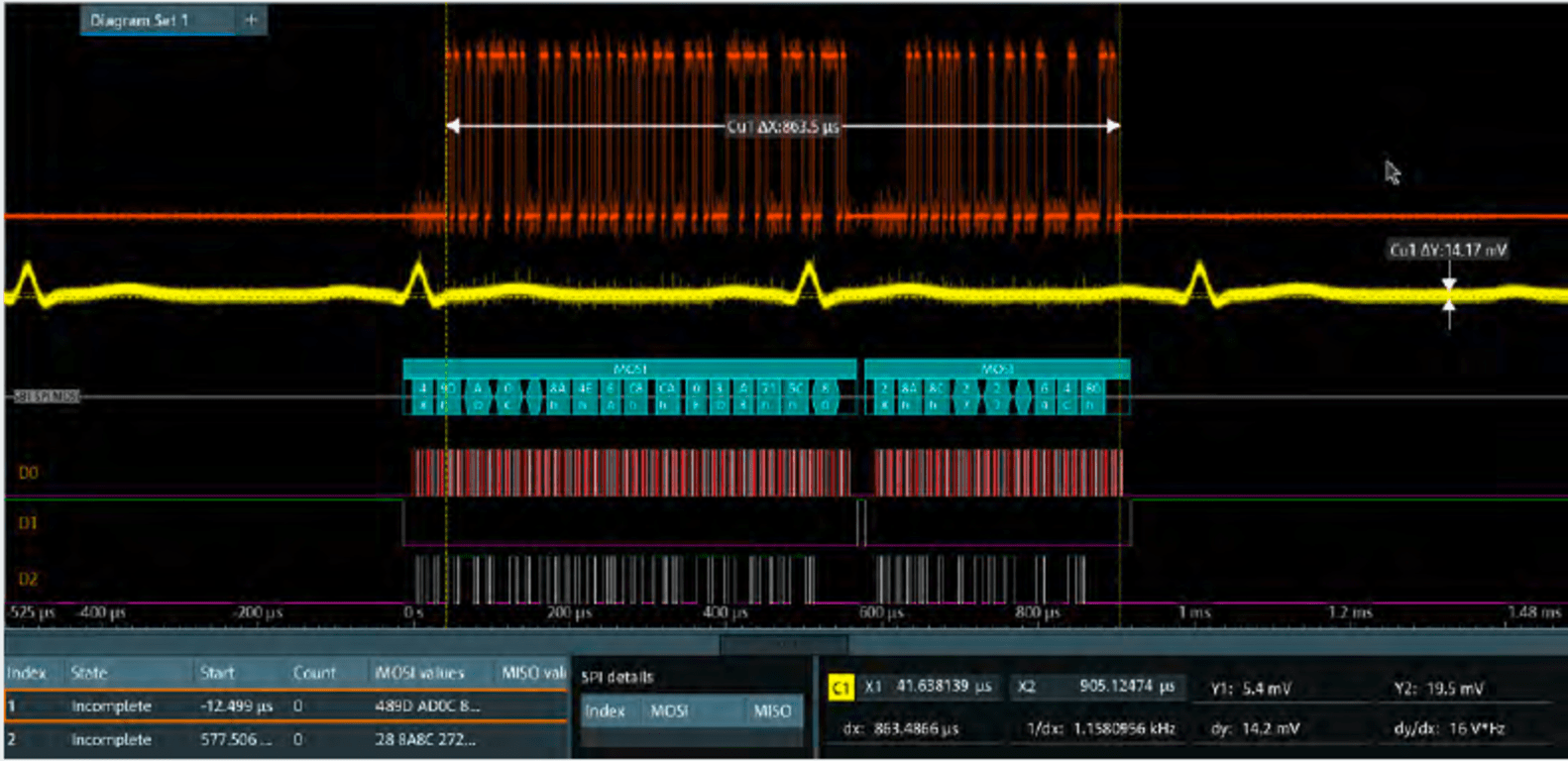

You can use the digital channels of the R&S®MXO4-B1 option to trigger and decode low speed serial protocols such as SPI and I2C with the appropriate protocol options. All protocol analysis tools for the analog channels, such as decode table and search, are also available for the digital channels. Trigger on protocol details such as start, address and data to focus the analysis on dedicated events.
