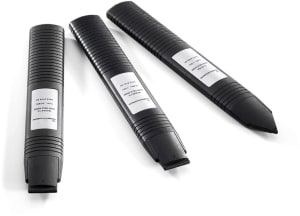

Rohde & Schwarz HZ-14 Active E and H near-field Probe Set

Name: Rohde & Schwarz HZ-14 Active E and H near-field Probe Set
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzHZ-14
Price: 9085.00 USD
Availability: InStock

0 reviews | Catalog: 1026.7744.03 | Model: Rohde & Schwarz HZ-14

Compare

Active E and H near-field Probe Set

Passive H-field probe from 9 kHz to 30 MHz
Passive H-field probe from 30 MHz to 1 GHz
Active E-field probe from 9 kHz to 1 GHz
30 dB broadband preamplifier for H-field probes from 9 kHz to 1 GHz
DC supply to operate the E-field probe
Test jig to allow functional testing of the H-field probes
DC power to E-field probe and preamplifier is supplied by Rohde & Schwarz measuring receivers and spectrum analyzers

View Product Details

List Price: $9,085.00

In Stock:

View Payment Options

Recommended for you

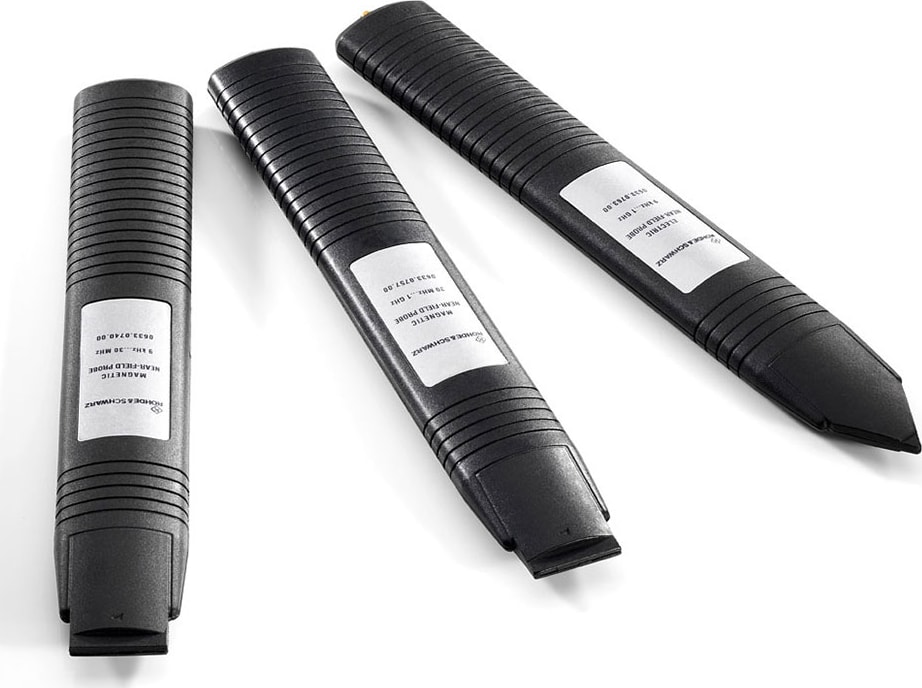

Rohde & Schwarz HZ-14 Active E and H near-field Probe Set

Passive H-field probe from 9 kHz to 30 MHz
Passive H-field probe from 30 MHz to 1 GHz
Active E-field probe from 9 kHz to 1 GHz
30 dB broadband preamplifier for H-field probes from 9 kHz to 1 GHz

The R&S®HZ-14 probe set for E and H near-field measurements is a tool for detecting EMC trouble spots. It allows the identification and elimination of disturbance sources as well as the detection of spots sensitive to electromagnetic interference at an early stage of product development, which reduces the time to market.

The R&S®HZ-14 is mainly used for diagnosing radiated emissions from printed boards, ICs, cables, leakage spots in shielded enclosures and similar sources of electromagnetic interference. The ergonomic design of the probes ensures easy handling. Radiated emission sources can be easily located owing to the small size of the probe tips.

Since the H-field probes are passive when operated without a preamplifier, they can also be used to find EMI-sensitive components and modules forming part of instruments or printed boards. The effectiveness of RFI suppression measures or the shielding provided by various types of enclosures and designs can be easily tested with the HZ‑14 probe set.
