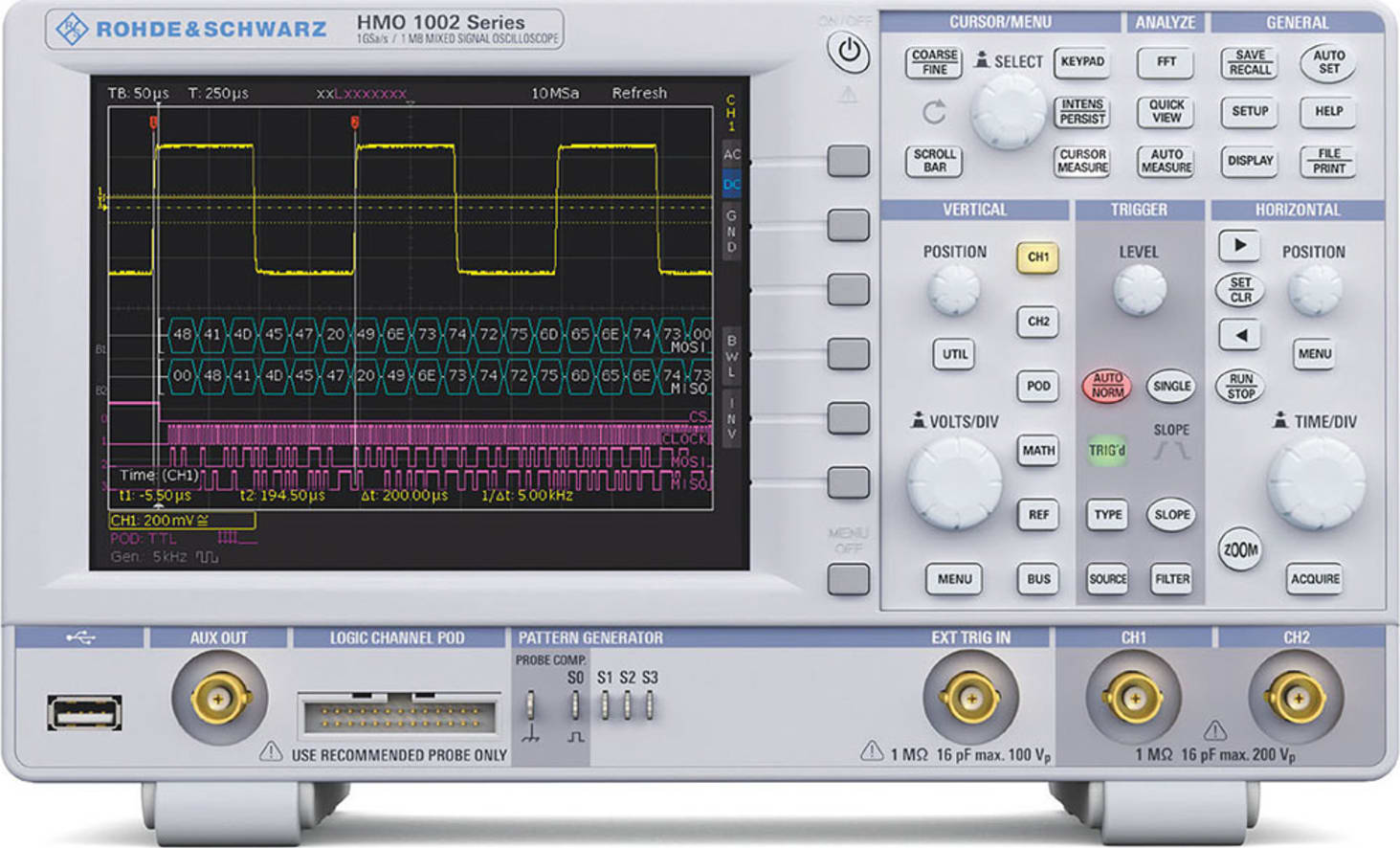

| All data valid at 23°C after 30 minute warm-up. |
| Display |
| Display |
16,5 cm (6,5“) VGA Color Display |
| Resolution |
640 (H) x 480 (V) Pixel |
| Backlight |
400 cd/m 2 (LED) |
| Display range in horizontal direction |
| without menu bar |
12 Div (600 Pixel) |
| with menu bar |
10 Div (500 Pixel) |
| Display range in vertical direction |
8 Div (400 Pixel) |
| with Virtual Screen usage |
20 Div |
| Color depth |
256 colors |
| Levels of trace brightness |
32 |
| Trace display |
pseudo-color, inverse brightnes |
| Vertical System |
| DSO Mode |
CH1, CH2 |
| MSO Mode |
CH1, POD (with Logic Probe HO3508) |
| Analog channels |

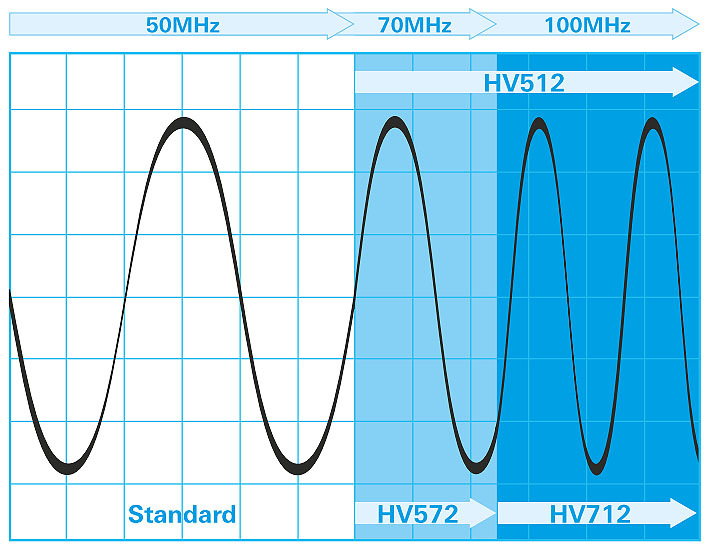

| Y-bandwidth (-3dB) |
| (1 mV, 2 mV)/Div |
50 MHz |
| (5 mV to 10 V)/Div |
50 MHz (basic unit)
70 MHz (with HOO572/HV572 option)
100 MHz (with HOO512/HV512 or
HOO712/HV712 option) |
| Lower AC bandwidth |
2 Hz |
| Bandwidth limitation (switchable) |
about 20 MHz |
| Rise time (calculated, 10%-90%) |
| 50 MHz (basic unit) |
<7 ns |
| basic unit with 70 MHz option |
<5 ns |
| basic unit with 100 MHz option |
<3.5 ns |
| DC gain accuracy (all ranges) |
3% of full scale |
| Input sensitivity range |
| all analog channels |
1 mV/Div to 10 V/Div |
| coarse stepping |
13 calibrated steps, 1-2-5 sequence |
| variable stepping |
freely between calibrated steps |
| Impedance |
1 MO II 16 pF ±2 pF |
| Coupling |
DC, AC, GND |
| Max. input voltage |
200 V p (derates at 20 db/decade to 5 V above 100 kHz) |
| Position range |
±5 Div (from center of screen) |
| Channel isolation |
35 dB from DC to specified bandwidth (same V/Div range) |
| XY mode |
CH1, CH2 |

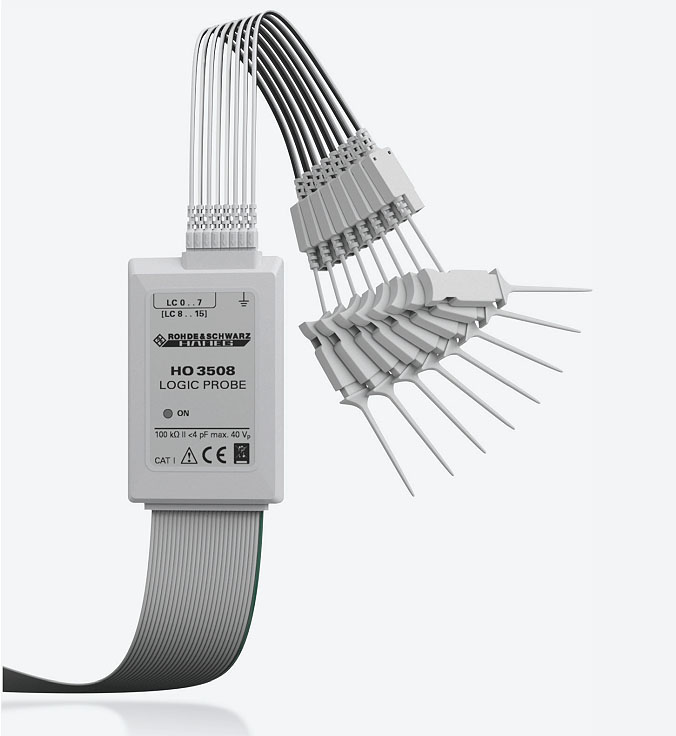

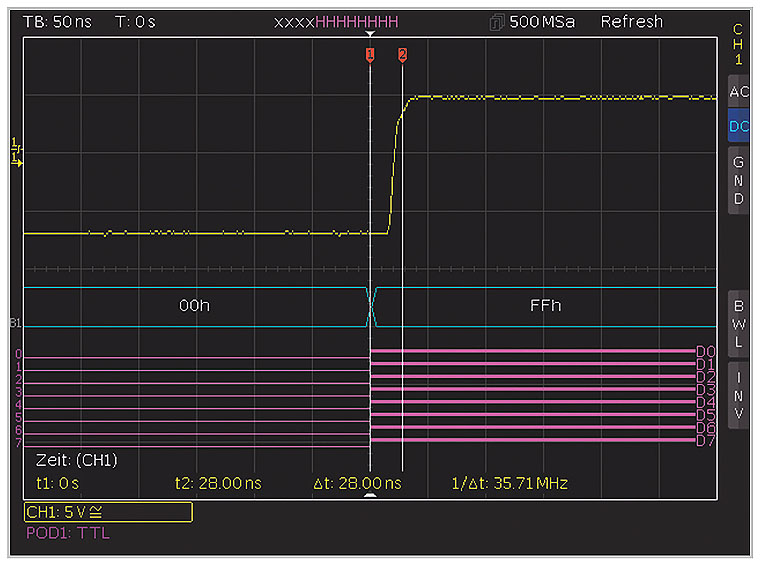

| Logic channels (with logic probe HO3508) |
| Thresholds |
TTL, CMOS, ECL, user-definied (-2 V to +8 V) |
| Impedance |
100 kO || 4 pF |
| Coupling |
DC |
| Max. input voltage |
40 Vp |
| Trigger system |
| Trigger mode |
| Auto |
Triggers automatically also without any specific trigger event |
| Normal |
Triggers only on specific trigger events |
| Single |
Triggers once on a trigger event |
| Trigger indicator |
Screen and panel (LED) |
| Trigger sensitivity |
| up to 5mV/Div |
1.5 Div |
| from 5mV/Div |
0.8 Div |
| Trigger level setting |
| with auto level |
adjustable between peak values of a signal |
| without auto level |
±5 Div (from center of screen) |
| external |
±5.0 V |
| Trigger coupling |
| AC |
<5 mV/Div: 10 Hz to 65 MHz
>5 mV/Div: 10 Hz to 65/90/130 MHz |
| DC |
<5 mV/Div: DC to 65 MHz
>5 mV/Div: DC to 65/90/130 MHz |
| HF |
<5 mV/Div: 30 kHz to 65 MHz
>5 mV/Div: 30 kHz to 65/90/130 MHz |
| selectable filters |
| LF (low pass) |
DC to 5 kHz (-3db), selectable in DC and auto level mode |
| Noise rejection |
min. level: 1.5 Div (> 5 mV/Div) selectable with AC, DC and HF coupling |
| Trigger hold-off |
auto, 50 ns to 10 s |
| External trigger input (BNC) |
| Impedance |
1 MO || 16 pF ±2 pF |
| Trigger level |
0.3 V pp to 10 V pp |
| Max. input voltage |
100 V p |
| Coupling |
DC, AC |
| Trigger output |
via AUX OUT (BNC) |
| Functions |
Pulse output for every acquisition trigger event, error output on mask violation |
| Output level |
3 V |
| Pulse polarity |
positive |
| Pulse width |
>150 ns (trigger event), >0.5 µs (mask violation) |
| Trigger types |
| Edge |
| Direction |
rising, falling, both |
| Trigger coupling |
auto level AC, DC, HF |
| Switchable filters |
LF, noise rejection |
| Sources |
all analog and digital channels, AC line, external (AC, DC) |
| Pulse width |
| Polarity |
positive, negative |
| Functions |
equal, not equal, lower, higher, within/without a range |
| Pulse duration |
16ns to 10s, resolution min. 2ns |
| Sources |
all analog channels |
| Logic |
| Functions |
|
| Boolean operators |
AND, OR, TRUE, FALSE |
| time based operators |
equal, not equal, lower, higher, within/without a time range, timeout |
| Duration |
16 ns to 10 s, resolution min. 2 ns |
| States |
H, L, X |
| Sources |
all logic channels |
| Video |
| Sync. pulse polarity |
positive, negative |
| supported standards |
NTSC, SECAM, PAL, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p |
| Field |
even/odd, either |
| Line |
line number selectable, all |
| Sources |
all analog channels, external (AC, DC) |

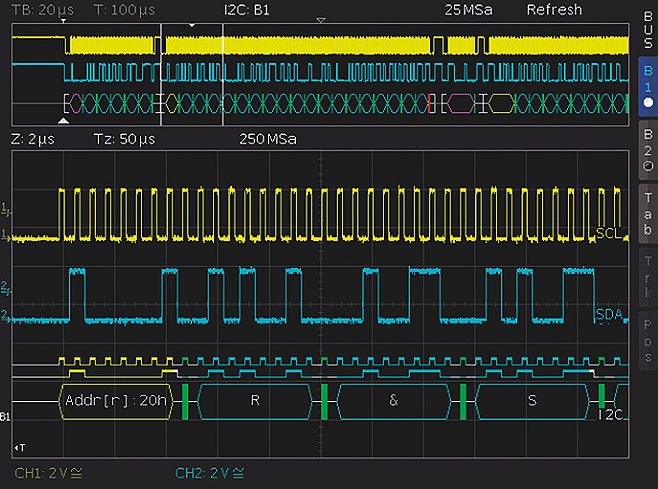

| Serial Busses |
| Bus representation |
Up to two busses can be analyzed at the same time. Color-coded display of decoded data in ASCII, binary, decimal and hexadecimal format. |

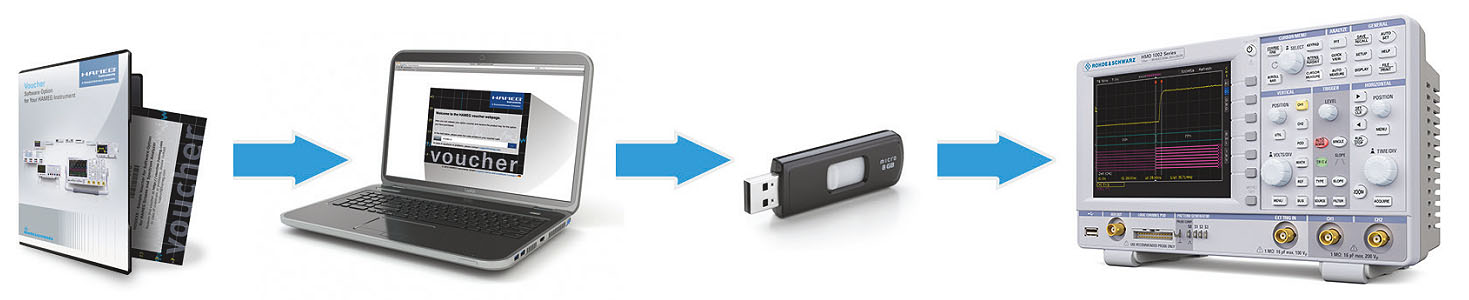

| Option code |
| HOO10 |

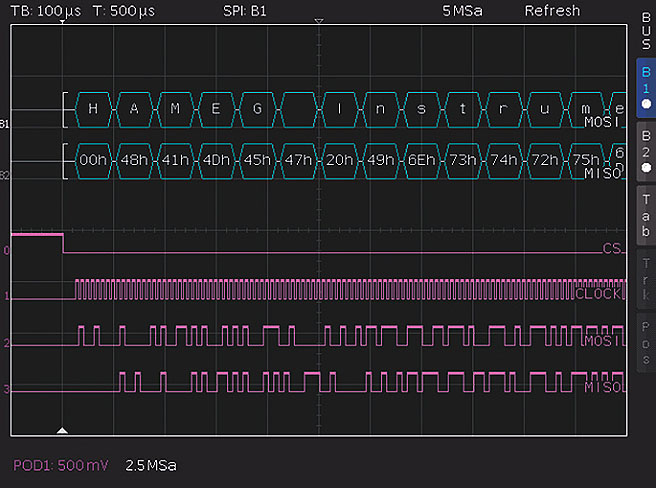

Analysis of I 2 C, SPI, UART/RS-232 signals on analog and logic channels |
| HOO11 |
Analysis of I 2 C, SPI, UART/RS-232 signals on all analog channels |
| HOO12 |

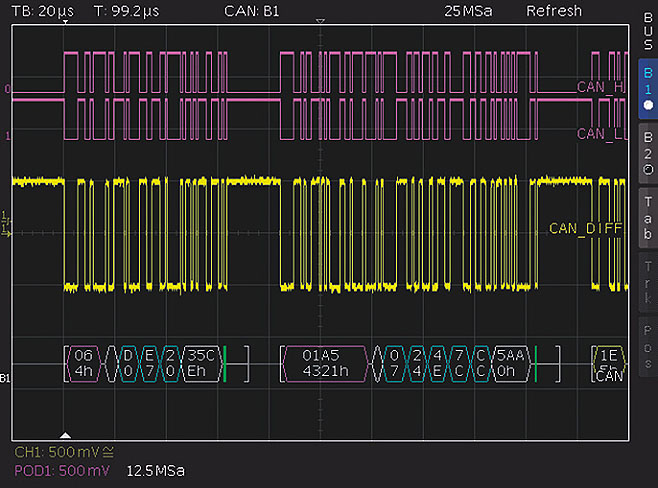

Analysis of CAN and LIN signals on analog and logic channels |
| Trigger types by protocols |
| I 2 C |
Start, Stop, ACK, NACK, Address/Data |
| SPI |
Start, End, Serial Pattern (32 Bit) |
| UART/RS-232 |
Startbit, Frame Start, Symbol, Pattern |
| LIN |
Frame Start, Wake Up, Identifier, Data, Error |
| CAN |
Frame Start, Frame End, Identifier, Data, Error |
| Horizontal System |
| Display |
| Time domain (Yt) |
main screen, time domain and zoom window |
| Frequency domain (FFT) |
time domain and frequency domain window (FFT) |
| XY mode |
voltage (XY) |
| VirtualScreen |
virtual display of ±10 Div for all math, logic, bus, reference signals |
| Component tester |
voltage (X), current (Y) |
| Reference signals |
up to 4 references |
| Channel deskew |
±32 ns, step size 2 ns |
| Memory Zoom |
up to 50.000 : 1 |
| Time base |
| Accuracy |
50.0 x 10 -6 |
| Aging |
10.0 x 10 -6 per year |
| Operation Modes |
| REFRESH |
2 ns/Div to 50 s/Div |
| ROLL |
50 ms/Div to 50 s/Div |
| Acquisition System |
| realtime sampling rate |
| Analog channels |
2 x 500 MSa/s or 1 x 1 GSa/s |
| Logic channels |
8 x 500 MSa/s |
| Memory depth |
2 x 500 kPts or 1 x 1 MPts |
| Resolution |
8 Bit, (HiRes up to 16Bit) |
| Waveform arithmetics |
refresh, roll (loose/triggered), average (up to 1024), envelope, peak detect (2 ns), filter (low-pass, adjustable), high resolution (up to 16 bit) |
| Record modes |
automatic, max. sampling rate, max. waveform rate |
| Interpolation |
| all analog channels |
sin(x)/x, linear, sample-hold |
| logic channels |
pulse |
| Delay |
| pre-trigger |
0 to 500.000 Sa x (1/sample rate), multiplied by 2 in interlaced mode |
| post-trigger |
0 to 8x10 6 Sa x (1/sample rate) |
| Waveform update rate |
up to 10,000 Wfm/s |
| Waveform display |
dots, vectors, persistence afterglow |
| Persistence afterglow |
min. 50 ms |
| Waveform measurements and Operation |
| Operation |
menu-driven (multilingual), auto-set, help functions (multilingual) |
| Automatic measurements |
voltage (V pp , V p+ , V p- , V rms , V avg , V min , V max ), amplitude, phase, frequency, period, rise/fall time (80%, 90%), pulse width (pos/neg), burst width, duty cycle (pos/neg), standard deviation, delay, crest factor, overshoot (pos/neg), edge/pulse count (pos/neg), trigger period, trigger frequency |
| Cursor measurements |
voltage (V1, V2, ?V), time (t1, t2, ?t, 1/?t), ratio X, ratio Y, pulse and edge count (pos/neg), peak values (V pp , V p+ , V p- ), mean/RMS/standard deviation, duty cycle (pos/neg), rise/fall time (80%, 90%), ratio marker, crest factor |
| Quick measurements (QUICKVIEW) |
voltage (V pp , V p+ , V p- , V rms , V mean ), rise/fall time, frequency, period plus 6 additional measurement functions (see automatic measurement functions, freely selectable) |
| Marker |
up to 8 freely positionable markers for easy navigation |
| Frequency counter (hardware based) |
| Resolution |
5 digit |
| Frequency range |
0.5 Hz to 100 MHz |
| Accuracy |
50.0 x 10 -6 |
| Aging |
±10.0 x 10 -6 per year |
| Mask Testing |
| Functions |
Pass/Fail comparison with an user-definied mask performed on waveforms |
| Sources |
all analog channels |
| Mask definition |
Mask enclosing acquired waveform with user-defined tolerance |
| Actions |
| on mask violations |
beep, acquisition stop, screenshot, trigger pulse, automatically saving trace data |
| during acquisiton |
Statistics: number of completed tests, number of passes / failed acquisitions (absolute and in percent), test duration |
| Waveform maths |
| Quickmath |
| Functions |
addition, substraction, multiplication, division |
| Sources |
CH1, CH2 |

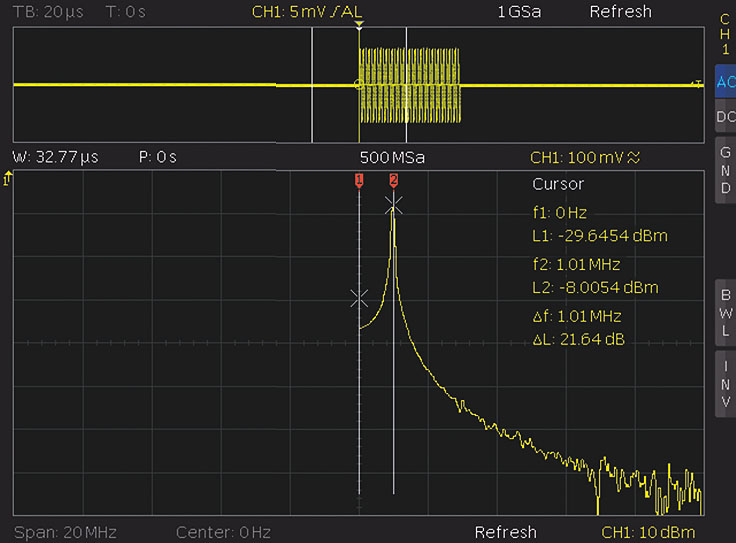

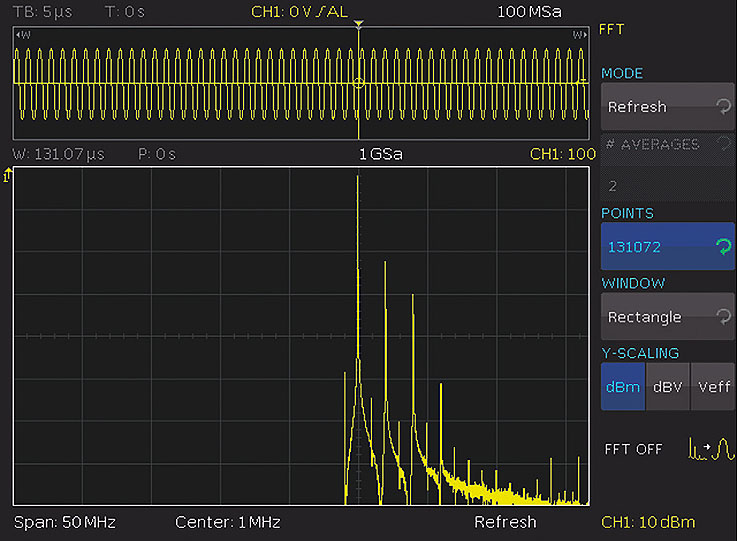

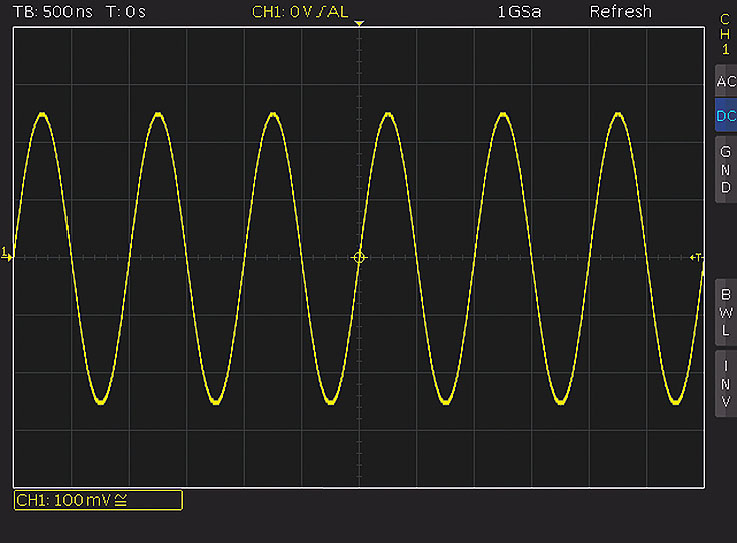

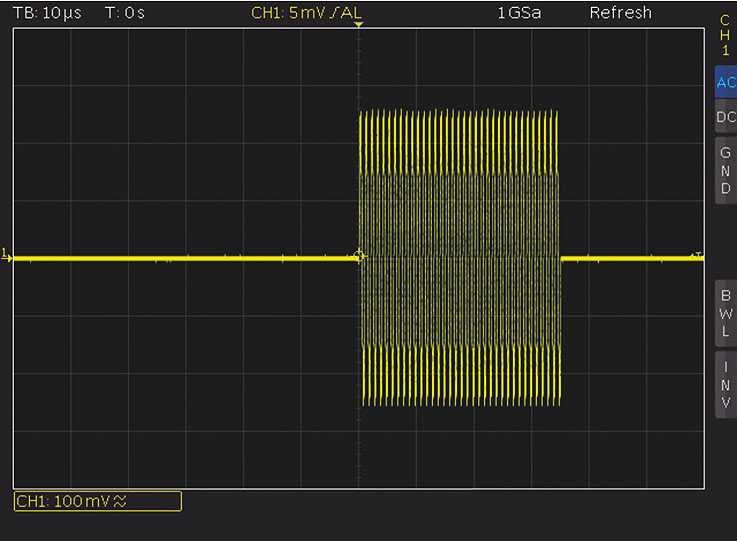

| Frequency Analysis (FFT) |
| Parameters |
frequency span, center frequency, vertical scale, vertical position |
| FFT length |
2 Kpts, 4 Kpts, 8 Kpts, 16 Kpts, 32 Kpts, 64 Kpts, 128 Kpts |
| Window |
Hanning, Hamming, Rectangular, Blackman |
| Scale |
dBm, dBV, V rms |
| Waveform arithmetics |
refresh, envelope, average (up to 512) |
| Cursor measurement |
2 horizontal cursors, previous/next peak search |
| Sources |
all analog channels |

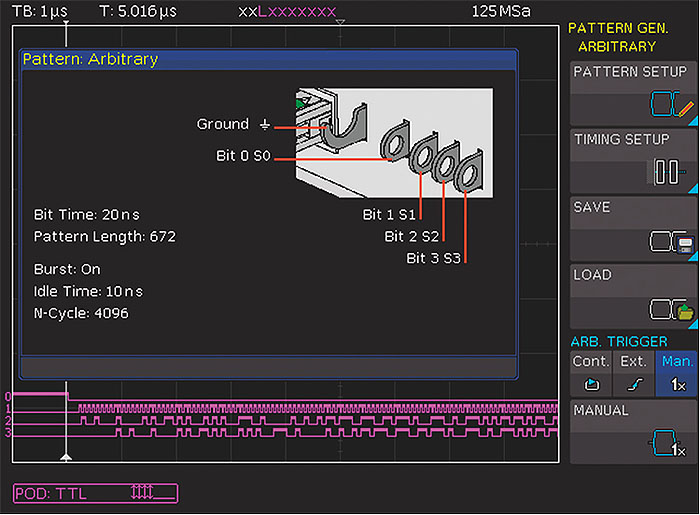

| Pattern Generator |
| Functions |
square wave / probe adjust, bus signal source, counter, programmable pattern |
| Square wave (Probe ADJ output) |
frequency range: 1mHz to 500kHz level: 2.5V pp (ta < 4ns) polarity: normal, invert duty cycle: 1% to 99% |
| Bus Signal Source (4 Bit) |
I 2 C (100 kBit/s, 400 kBit/s, 1 MBit/s), SPI (100 kBit/s, 250 kBit/s, 1 MBit/s), UART (9600 Bit/s, 115,2 kBit/s, 1 MBit/s), CAN (up to 50 MBits/s), LIN (up to 50 MBits/s) |
| Counter (4 Bit) |
frequency: 1 mHz to 25 MHz direction: incrementing, decrementing |
| Programmable pattern (4 Bit) |
sampling time: 20 ns to 42 s
memory depth: 2048 sa
pattern idle time: 20 ns to 42 s |

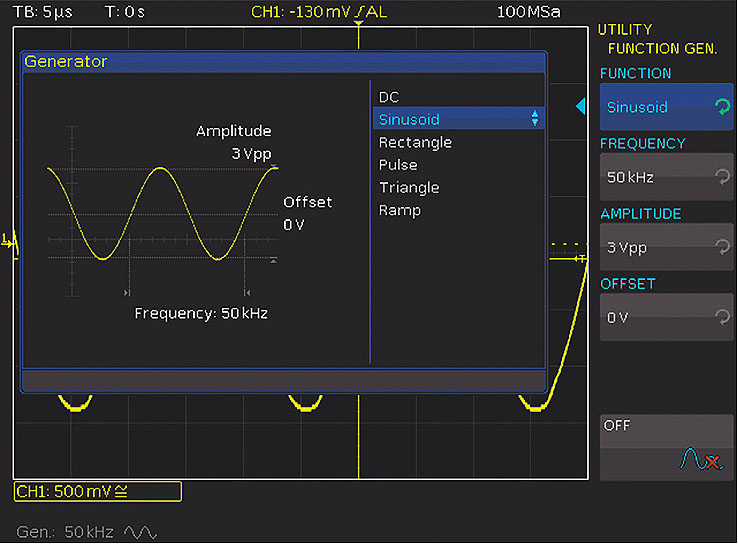

| Function Generator |
| Waveform modes |
DC, sine, square, triangle/ramp, pulse |
| Sine |
frequency range: 0.1 Hz to 50 kHz flatness: ±0.5 dB relative to 1kHz |
| Square |
frequency range: 0.1 Hz to 50 kHz rise time: <4 µs |
| Triangle/ramp |
frequency range: 0,1 Hz bis 10 kHz |
| Pulse |
frequency range: 0.1 Hz to 10 kHz duty cycle: 10% to 90% |
| Sampling rate |
978 kSa/s |
| Frequency accuracy |
50.0 x 10 -6 |
| Aging |
±10.0 x 10 -6 per year |
| Amplitude |
| high impedance load |
60 mV pp to 6 V pp |
| 50 Ω load |
30 mV pp to 3 V pp |
| Accuracy |
3% |
| DC offset |
±3 V |

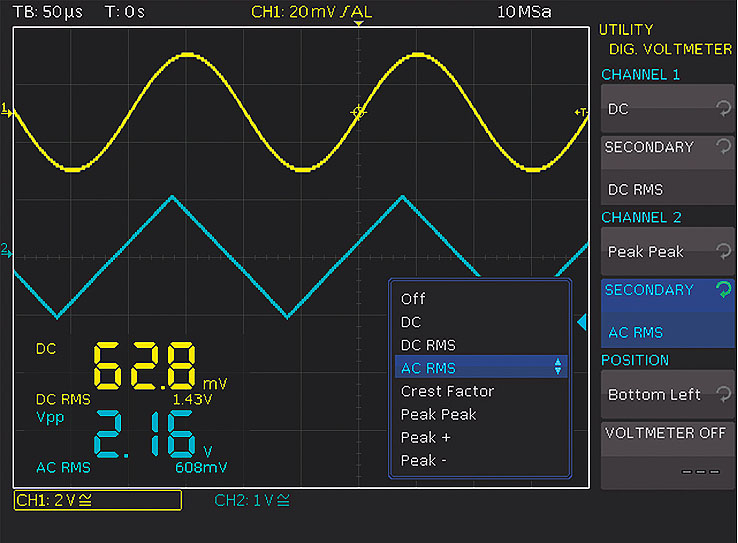

| Digital Voltmeter |
| Display (3-digit) |
Primary and secondary measurement value per channel, simultaneous measuring on all channels |
| Functions |
DC, DC rms , AC rms , V pp , V p+ , V p -, crest factor |
| Sources |
all analog channels |

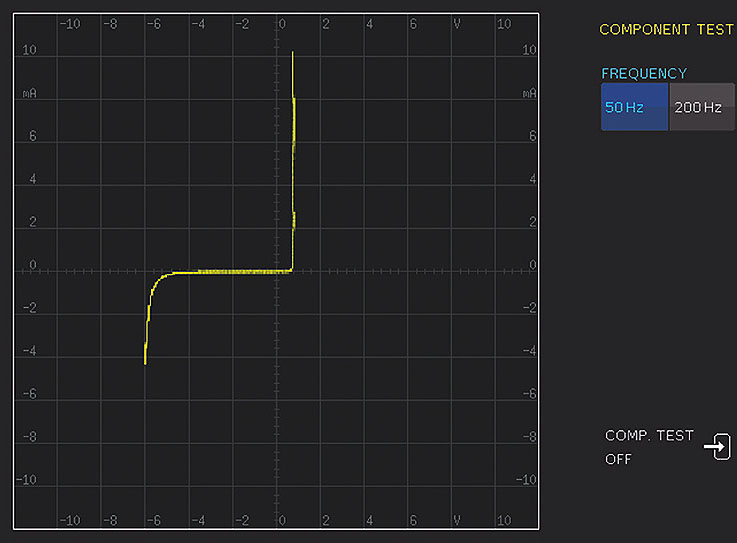

| Component Tester |
| Parameters |
voltage (X), current (Y) |
| Testing frequency |
50 Hz, 200 Hz |
| Voltage |
10 V p (open) |
| Current |
10 mA (short) |
| Reference potential |
Ground (PE) |
| Interfaces |
| for mass storage (FAT16/32) |
1 x USB-Host (Typ A), max. 500 mA |
| for remote control |
Ethernet (RJ45), USB Device (Typ B) |
| General Data |
| Application memory |
3 MB for references and device settings |
| Save/Recall |
| device settings |
on internal file system or external USB memory, available file formats: SCP, HDS |
| reference waveforms |
on internal file system or external USB memory, available file formats: BIN (MSB/LSB), FLT (MSB/LSB), CSV, TXT, HRT |
| traces |
on external USB memory, available file formats: BIN (MSB/LSB), FLT (MSB/LSB), CSV, TXT |
| data |
display or acquisition data |
| sources |
single or all analog channels |
| screenshots |
on external USB memory, available file |
| formats |
BMP, GIF, PNG |
| Realtime Clock (RTC) |
date and time |
| Power supply |
|
| AC supply |
100 V to 240 V, 50 Hz to 60 Hz, CAT-II |
| Power consumption |
max. 25 W |
| Safety |
in line with IEC 61010-1 (ed. 3), IEC 61010-2-30 (ed. 1), EN 61010-1, EN 61010-2-030 , CAN/CSA-C22.2 No. 61010-1-12 , CAN/CSA-C22.2 No. 61010-2-030-12 ,UL Std. No. 61010-1 (3rd Edition) , UL61010-2-030 |
| Operating temperature range |
+5 °C to +40 °C |
| Storage temperature range |
-20 °C to +70 °C |
| Rel. humidity |
5% to 80% (without condensation) |
| Mechanical Data |
| Dimensions (W x H x D) |
285 mm x 175 mm x 140 mm |
| Net weight |
2.5 kg |
