Rohde & Schwarz HM8134-3X 1Hz to 1.2GHz RF-Synthesizer

Name: Rohde & Schwarz HM8134-3X 1Hz to 1.2GHz RF-Synthesizer
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzHM8134-3X
Price: 4845.00 USD
Availability: InStock

0 reviews | Catalog: 3593.0574.02 | Model: Rohde & Schwarz HM8134-3X

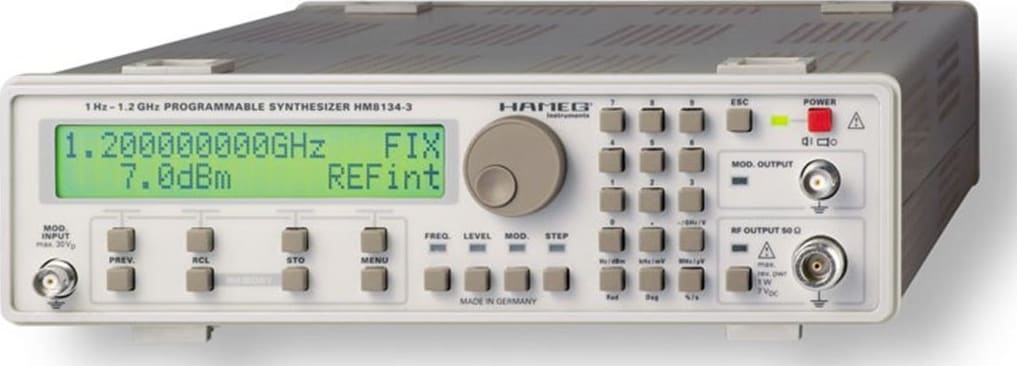

Rohde & Schwarz HM8134-3 1 Hz to 1.2/3 GHz RF Synthesizer

Images (7)

Compare

RF synthesizer, 1Hz to 1.2GHz, -127dBm to +13dBm, AM, FM, Puls, FSK, PSK, int. modulator 10Hz to 150kHz, OCXO (temperature stability 1 x 10-8), USB/RS232

OCXO (temperature stability: ±1.0 x 10-8)
RS-232/USB dual interface, IEEE-488 (GPIB) optional
Frequency range: 1 Hz to 1.2 GHz
High dynamic output power: -127 dBm to +13 dBm
Frequency resolution: 1 Hz
High spectral purity, excellent SWEEP mode
Modulation modes: AM, FM, pulse, phase, FSK, PSK
Internal modulation (10 Hz to 150 kHz): sine, square, triangle, ramp
External Ref.-Input/Output (10 MHz) via BNC-connector

View Product Details

List Price: $4,845.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Rohde & Schwarz HM8134-3X

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(8)

In Stock!

Add to Cart

Rohde & Schwarz HZ24 Attenuator set 50 Ohm (4 pcs.) 3/6/10/20dB; (1GHz) + 1 pc. HZ22

Catalog: 3594.4021.02

(0)

In Stock!

Add to Cart

Rohde & Schwarz HZ72 GPIB cable, 2 m, 90 Degrees angled, stackable

Catalog: 3594.4296.02

(0)

In Stock!

Add to Cart

Cal Test CT4037 Advanced Function Generator Accessory Kit

Catalog: CT4037

(11)

In Stock!

Add to Cart

Rohde & Schwarz HZ21 Adapter, N(m) - BNC(f)

Catalog: 3594.4009.02

(0)

In Stock!

Add to Cart

Rohde & Schwarz HO880 IEEE-488 (GPIB) interface (galvanically isolated), for series...

Catalog: 3594.3748.02

(0)

In Stock!

Add to Cart

Rohde & Schwarz HZ42 19 inch rack adapter,2HU for case height 75mm, for: HM7042-5,...

Catalog: 3622.3207.02

(0)

In Stock!

Add to Cart

Rohde & Schwarz HM8134-3X RF-Synthesizer 1Hz to 1.2GHz

Frequency Resolution of 1 Hz
- Internal modulation (10 Hz to 150 kHz): sine, square, triangle, ramp
Frequency Range: 1 Hz to 1.2/3 GHz
- External reference input/output (10 MHz) via BNC connector

The 1.2GHz RF-Synthesizer, 1Hz to 1.2GHz, -127dBm to +13dBm, TCXO (temperature stability +/- 0.5x10-6).

Specifications
Frequency
Range	1 Hz to 1,200 MHz
Resolution	1 Hz
Settling time	<10 ms
Interface	Dual interface USB/RS-232 (HO820), IEEE-488 (GPIB) (optional)
Configuration memories	10
Safety class	Safety Class I (EN61010-1)
Power supply	115/230 V ±10 %, 50 to 60 Hz, CAT II
Power consumption	approx. 40 VA
Operating temperature	+5 to +40 °C
Storage temperature	-20 to +70 °C
Rel. humidity	5 to 80 % (non condensing)
Dimensions (W x H x D)	285 x 75 x 365 mm
Weight	approx. 5 kg

Generators / Counters/RF Signal Generator Template
Type(Generator)	Bench
Minimum Frequency Range (kHz)	1 Hz (0.000001 MHz)
Maximum Frequency Range	1.2 GHz (1200 MHz)
Modulation Types (generator)	AM, FM
Output dB Range Min	-127 dBm (-127 dB)
Output dB Range Max	13 dBm (13 dB)
Test Equipment General Attributes
Unique Features	Temperature stability: ±0.5 x 10-6 Frequency resolution: 1Hz RS-232/USB dual interface, IEEE-488(GPIB)optional Modulation modes: AM, FM, pulse, phase, FSK, PSK
Warranty	1 YEARS
Warranty Details	Extended to three years with product registration
Safety Approval	CE
Interfaces I/O	RS-232, USB Interfaces I/O IEEE-488 (GPIB)
Product Weight	5 KILOS (11.02 LBS)
Product Height	75 IN
Product Length	365 MM (14.37 IN)
Product Width	285 MM (11.22 IN)
Shipping Weight	6.6 KILOS (14.55 LBS)
Calibration Included	Factory Calibration
Country of Origin	Germany
Other Information	Depth: 365 mm
