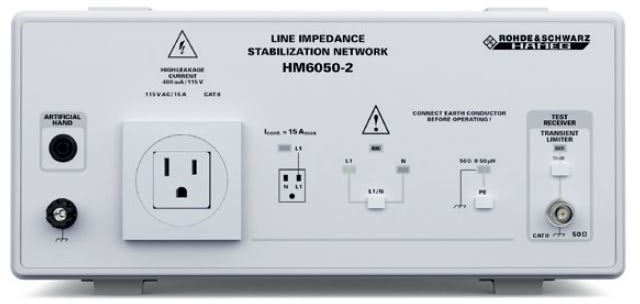

5 (1 Review) | Catalog: 3593.0374.02 | Model: Rohde & Schwarz HM6050-2US
Line impedance stabilization network, 9kHz...30MHz (CISPR 16), max. 16A (US version, US safety plug, 120V)
List Price: $1,505.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(6)
In Stock!
The HM6050-2 Line Impedance Stabilization Network (LISN) meets standards VDE 0876 and CISPR Publ.16. It contains air core inductance coils and features an Artificial Hand and a PE simulating network which can be bridged. Conducted emissions on AC power lines, which are typically generated by electrical equipment, can be verified with the help of a LISN together with a Spectrum Analyzer/EMC Receiver. The DUT (device under test) must be connected directly to the LISN. Inside the LISN the power lines are terminated with a well-defined impedance network, against each other and against the ground. The HM6050-2 Line Impedance Stabilization Network (LISN) in principle is a filter network. Through a low pass filter, the DUT is connected to the AC power lines. The LISN also presents a well-defined impedance to the signal. For measurements with a Spectrum Analyzer/EMC Receiver, the EMC signal is available after having passed a high pass filter. Two identical networks provide the asymmetric noise emission signals of the DUT’s power lines L1 and N. The user can choose between the signals, the selected one will be available at the HM6050- 2’s test signal outlet. The stabilization network (simulation for the AC power lines) is arranged in form of a "V". If working with a Spectrum Analyzer/EMC Receiver it is highly recommended to enable the built-in Transient Limiter of the HM6050-2. The perfect choice for: EMI pre-compliance measurements in the engineering lab Remotely controlled EMI measurements for EMC diagnosis and precompliance
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
Design Engineer
5.0
I purchased this LISN device in order to do pre-compliance testing at my facility. I have found it to be a great and affordable addition to my own lab. Only having the unit one week has helped to eliminate show stoppers in the compliance lab saving me money. The HM6050-2US works as expected and I recommend it to anyone wishing to build up their lab. TEquipment.net has been a good source for equipment and ongoing support.
Verified Purchase Dan Pickerill on Dec 05, 2018 I found this helpful (0)
