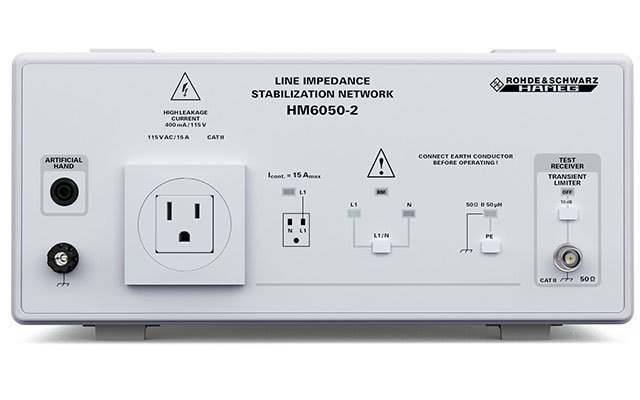

Rohde & Schwarz HM6050-2S - Two-line V-network

The HM6050-2S Line Impedance Stabilizatin Network (LISN) meets standard VDE 0876 and CISPR Publ. It contains aircore inductance coils and features an Artificial Hand and a PE simulating network which can be bridged.

Conducted emissions on AC power lines, which are typically generated by electrical equipment, can be verified with the help of a LISN together with a Spectrum Analyzer/EMC Receiver. The DUT (Device under test) must be connected directly to the LISN. Inside the LISN the power lines are terminated with a well-defined impedance network, against each other and against the ground.
