Rohde and Schwarz FSL-K30 Specification |
Frequency |
Frequency range |
R&S ® FSL3 |
100 kHz to 3 GHz |
R&S ® FSL6 |
100 kHz to 6 GHz |
R&S ® FSL18 |
100 kHz to 18 GHz (overrange 20 GHz) |
Measurement bandwidth |
R&S ® FSL3/6 |
300 Hz to 10 MHz (-3 dB) in 1/3 sequence |
R&S ® FSL3/6 with R&S ® FSL-B7 option |
10 Hz to 10 MHz (-3 dB) in 1/3 sequence |

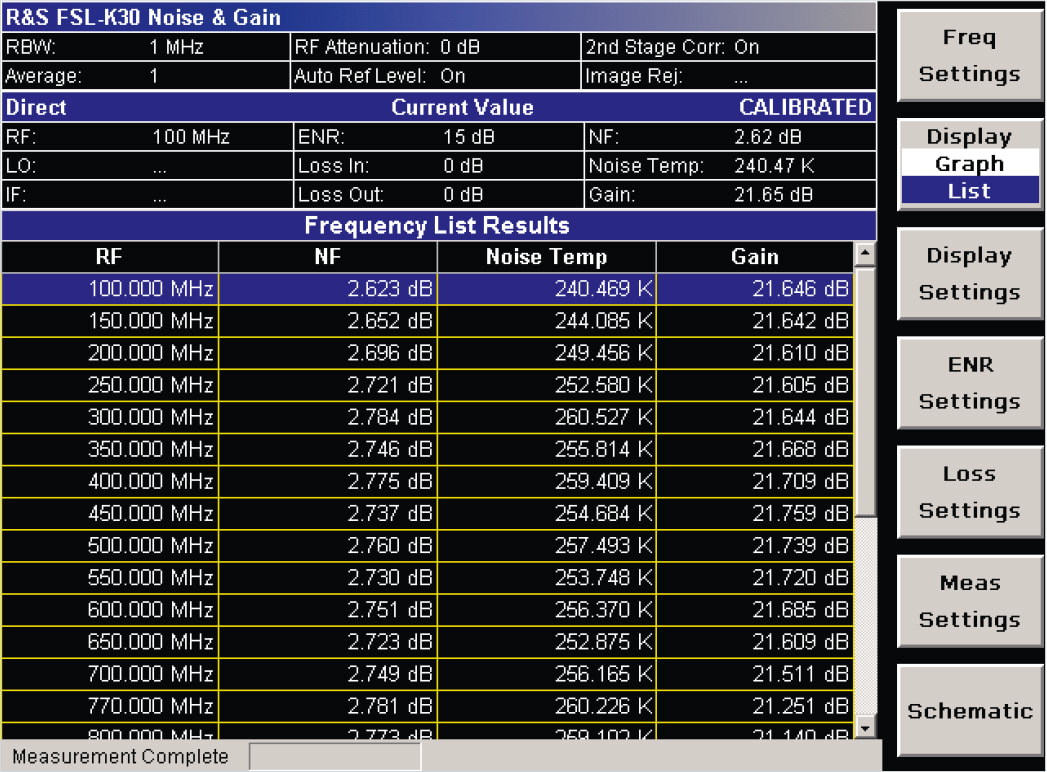

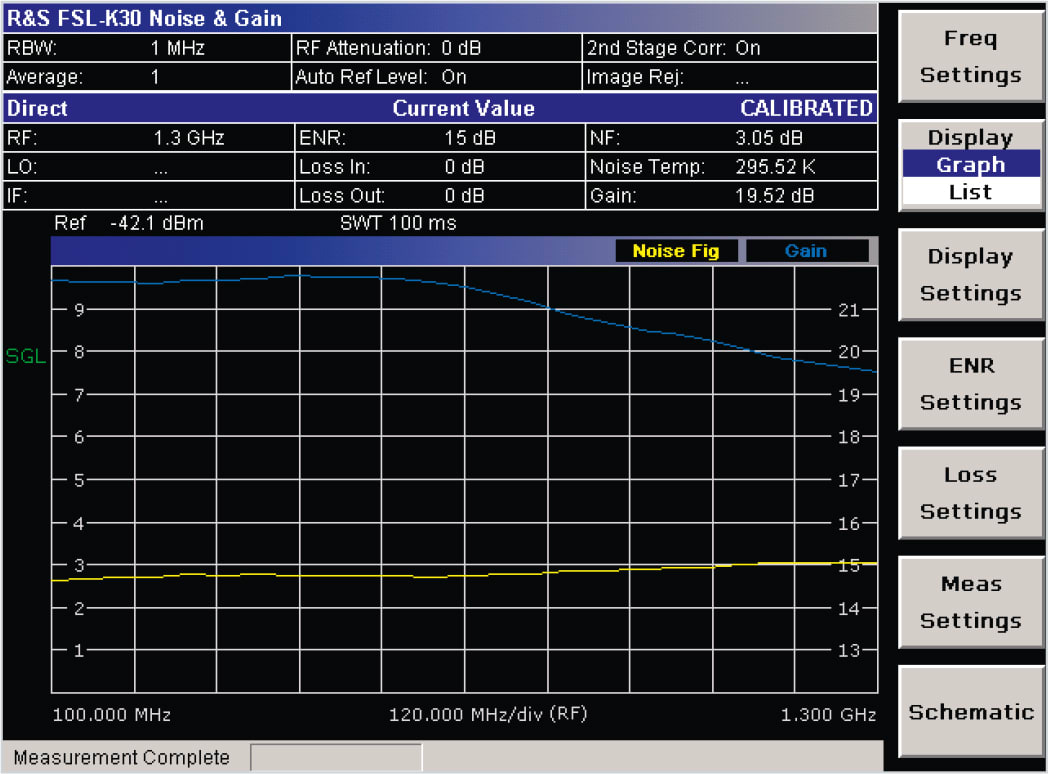

Noise figure and gain measurement |
Noise figure |
Measurement range |
|
0 dB to 35 dB |
Resolution |
|
0.01 dB |
Accuracy |
instrument uncertainty (95 % confidence level) |
frequency range 100 kHz to 10 MHz |
measurement with external preamplifier
(gain 50 dB, noise figure < 5 dB),
RBW < 10 kHz, DUT noise figure
1 dB to 10 dB and gain >10 dB |
0.3 dB |
frequency range >10 MHz to 6 GHz |
measurement with external preamplifier
(gain 30 dB, noise figure < 5 dB),
RBW 1 MHz, DUT noise figure
1 dB to 10 dB and gain >10 dB |
0.3 dB |
R&S ® FSL-B22 (internal preamplifier)
active, measurement with external
preamplifier(gain 20 dB,
noise figure < 5 dB),
RBW 1 MHz, DUT noise figure
1 dB to 10 dB and gain >10 dB |
0.3 dB |
frequency range >6 GHz to 18 GHz |
measurement with external preamplifier
(gain 30 dB, noise figure < 5 dB),
RBW 1 MHz, DUT noise figure
1 dB to 10 dB and gain >10 dB |
0.3 dB |
Gain |
Measurement range |
|
0 dB to 60 dB |
Resolution |
|
0.01 dB |
Accuracy |
frequency range 100 kHz to 10 MHz |
measurement with external preamplifier
(gain 50 dB, noise figure < 5 dB),
RBW < 10 kHz |
0.2 dB |
frequency range > 10 MHz to 18 GHz |
measurement with external preamplifier
(gain 30 dB, noise figure < 5 dB),
RBW 1 MHz
|
0.2 dB |
Required hardware |
Spectrum analyzer |
Noise source supply |
via 28 V connector on R&S ® FSL rear panel |
R&S ® FSL-B5 |
Noise source |
recommendation |
NoiseCom NC346 |
Preamplifier, external |
frequency range 100 kHz to 3/6/18 GHz |
gain approx. 30 dB, noise figure max. 5 dB |
