0 reviews | Catalog: 1318.6100.02 | Model: Rohde & Schwarz FSH-K56
NB-IoT measurement application (software license)
Your Price: $2,965.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The R&S FSH-K56 option enables the R&S®FSH to measure NB-IoT transmit signals. NB-IoT occupies a bandwidth of 180 kHz, which corresponds to one resource block in LTE transmission. The error vector magnitude (EVM) and frequency error shown on the result summary page are important parameters for determining the quality of the transmitted signal. Other NB-IoT downlink physical signal parameters (NPSS, NSSS and NPBCH) are also measured and displayed. The constellation diagram graphically shows the quality of the NB-IoT signals. The R&S FSH-K56 option supports analysis of an NB-IoT downlink signal in three deployment modes - in-band, guard band and standalone.

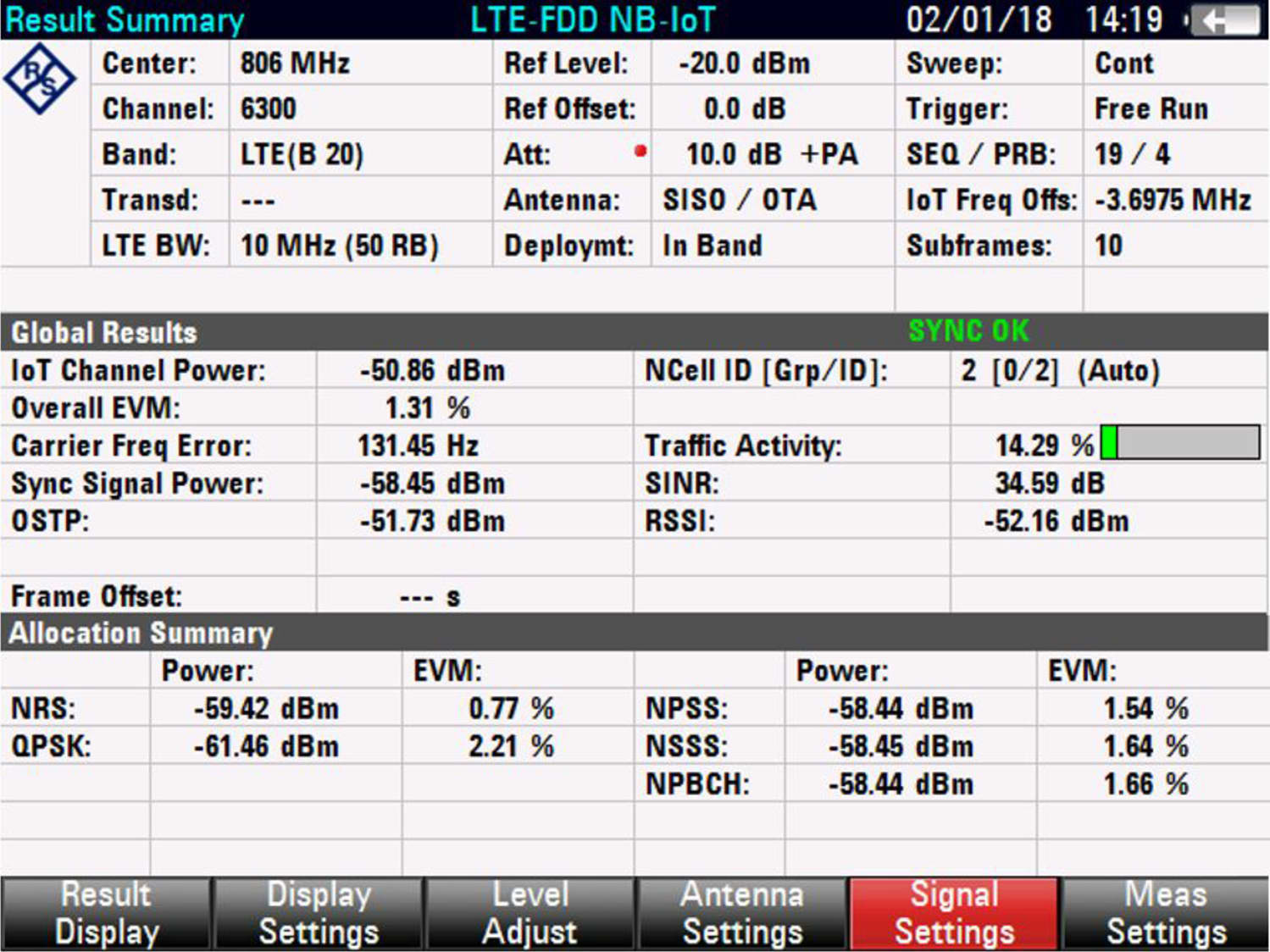

The result summary shows various measurement results and hardware settings in numerical form.
R&S FSH-K56 NB-IoT measurement application (for FDD LTE) 8 The specifications below apply to the R&S FSH4/FSH8/FSH13/FSH20. They are based on the data sheet specifications of the R&S FSH4/FSH8/FSH13/FSH20, have not been checked separately and are not verified during instrument calibration. Measurement uncertainties are indicated as 95 % confidence intervals. The specified level measurement errors do not take into account systematic errors due to reduced signal-to-noise ratio (SNR). All specifications are valid for SNR > 30 dB.
8 Require instruments with serial number ≥ 105000 9 For deployment in-band: NB-IoT celI identity must be identical to LTE celI identity
