0 reviews | Catalog: 1304.5858.02 | Model: Rohde & Schwarz FSH-K48E
3GPP TD-SCDMA/HSDPA BTS code domain power and EVM measurement application, R and S FSH-K48 required (software license)
Your Price: $4,845.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!

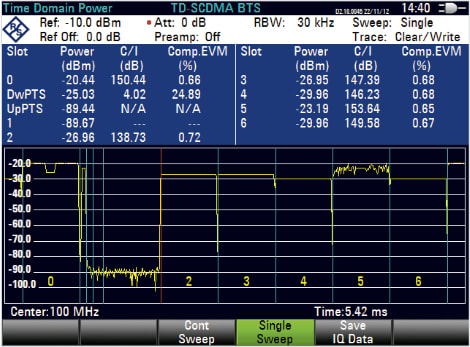

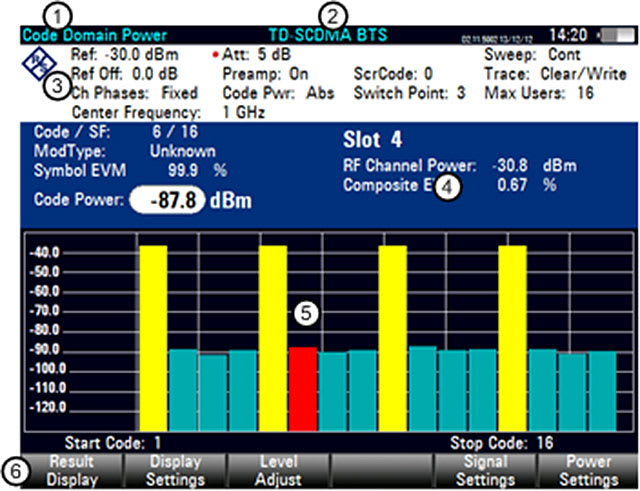

Please note, the FSH-K48E requires option FSH-K48 to operate. These are sold separately. Equipped with the R&S FSH-K48/-K48E measurement applications, the R&S FSH provides the user with a quick overview of the main parameters needed for commissioning and maintaining TD-SCDMA/HSDPA base stations. The result summary display is available with the R&S FSH-K48 measurement application. It shows the carrier frequency error (CFE) and the PCCPCH symbol error vector magnitude (EVM), which indicate signal quality. The absolute channel power and the channel power in relation to the total signal power of the data parts and midamble parts of a selected timeslot are measured. These measurements provide information about the signal-to-interference ratio. The R&S FSH-K48E measurement application enables fast and reliable in-depth analysis of TD-SCDMA/HSDPA signals. The time domain power display shows the received power, C/I and composite EVM of each active slot within the TD-SCDMA subframe. The results are simultaneously displayed in a table and in a diagram. Display lines and numbering help the user easily check whether the power and timing of each subframe meet specifications. The code domain power display shows the active and inactive TD-SCDMA codes within the selected frequency channel. The channel table display shows the main parameters of the TD-SCDMA and HSDPA channels. The Sync ID display shows the signals coming from different base stations.
The specifications below apply to the R&S FSH4/FSH8/FSH13/FSH20. They are based on the data sheet specifications of the R&S FSH4/FSH8/FSH13/FSH20, have not been checked separately and are not verified during instrument calibration. Measurement uncertainties are indicated as 95 % confidence intervals. The specified level measurement errors do not take into account systematic errors due to reduced signal-to-noise ratio (SNR).
